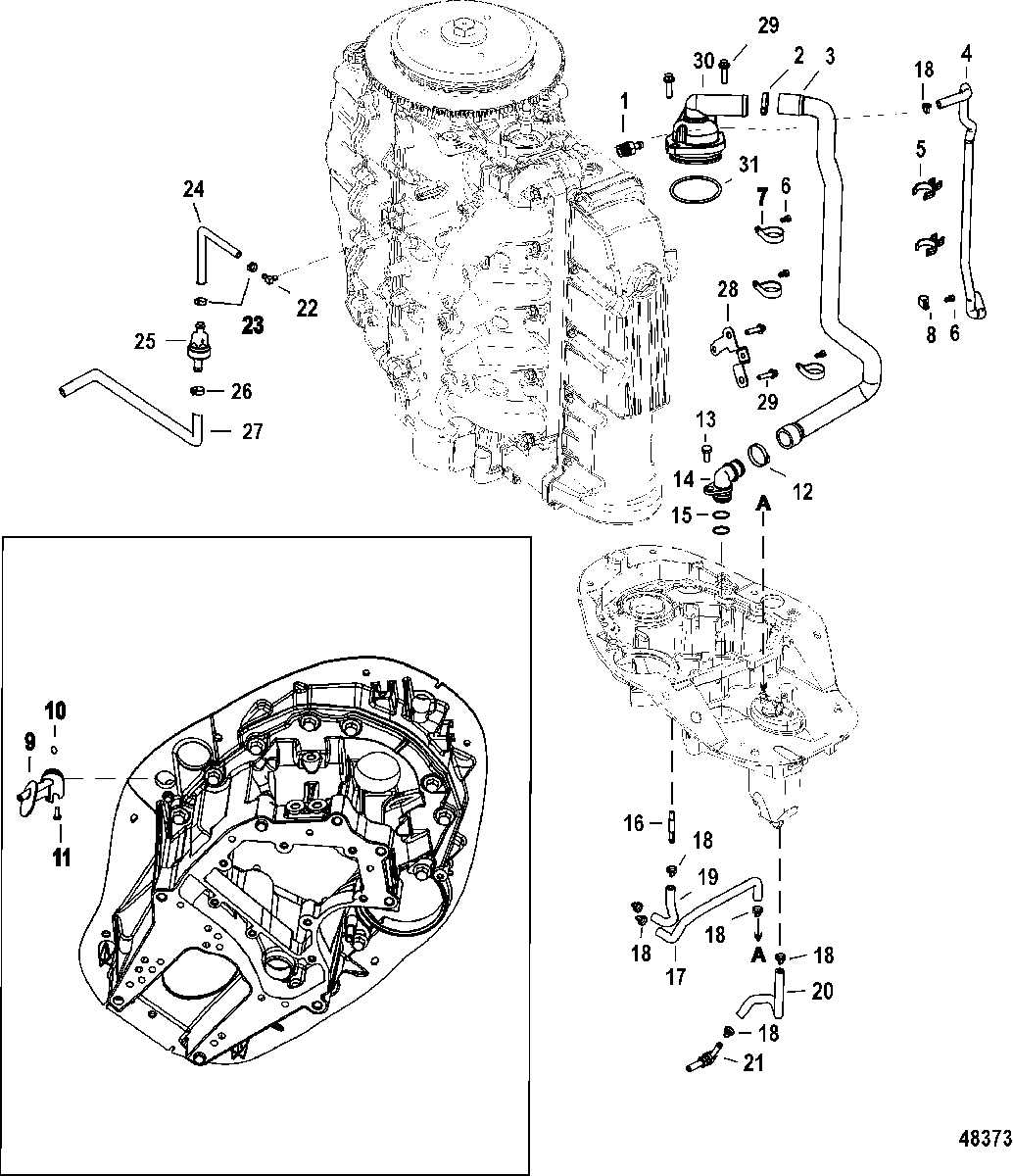

Cooling для Mercury - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
122-8M0058214 FITTING, Water StrainerFITTING, Water Strainer
-
254-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
332-8M0028132 HOSE, ThermostatHOSE, Thermostat
-
432-8M0028275 HOSE, Tell TaleHOSE, Tell Tale
-
554-892833 CLIPCLIP
-
610-8M0037204 SCREW, Nylon, push inSCREW, Nylon, push in
-
754-8M0035891 CLIP, HoseCLIP, Hose
-
854-8M0037098 CLIP, HoseCLIP, Hose
-
98M0057702 TELLTALETELLTALE
-
1025-38101 O-RING, (.674 x .103)O-RING, (.674 x .103)
-
1110-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
1254-888988011 CLAMP, (38.1 mm)CLAMP, (38.1 mm)
-
1310-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
1422-885518A02 FITTING ASSEMBLYFITTING ASSEMBLY
-
1525-62701 O-RINGO-RING
-
1622-8M0038205 FITTING, StraightFITTING, Straight
-
1732-8M0028130 HOSE, FSM, Water InletHOSE, FSM, Water Inlet
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1932-8M0035248 HOSE, DrainHOSE, Drain
-
2032-8M0045298 HOSE, SprayerHOSE, Sprayer
-
2122-8M0050013 FITTING, Exhaust CoolingFITTING, Exhaust Cooling
-
2222-8M0035658 FITTING, 90A° with sealantFITTING, 90A° with sealant
-
2354-888988022 CLAMPCLAMP
-
2432-8M0057620 HOSE, FlushHOSE, Flush
-
2532-8M0102826 HOSE ASSEMBLY, FlushingHOSE ASSEMBLY, Flushing
-
2654-855697 CLAMP, (16.2 mm)CLAMP, (16.2 mm)
-
2732-8M0057599 TUBING, (8 ID X 14 OD X 840 MM)TUBING, (8 ID X 14 OD X 840 MM)
-
288M0048537 BRACKET, Hose ClipBRACKET, Hose Clip
-
2910-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
30892864T06 HOUSING ASSEMBLY, ThermostatHOUSING ASSEMBLY, Thermostat
-
3125-8M0005958 O-RINGO-RING
