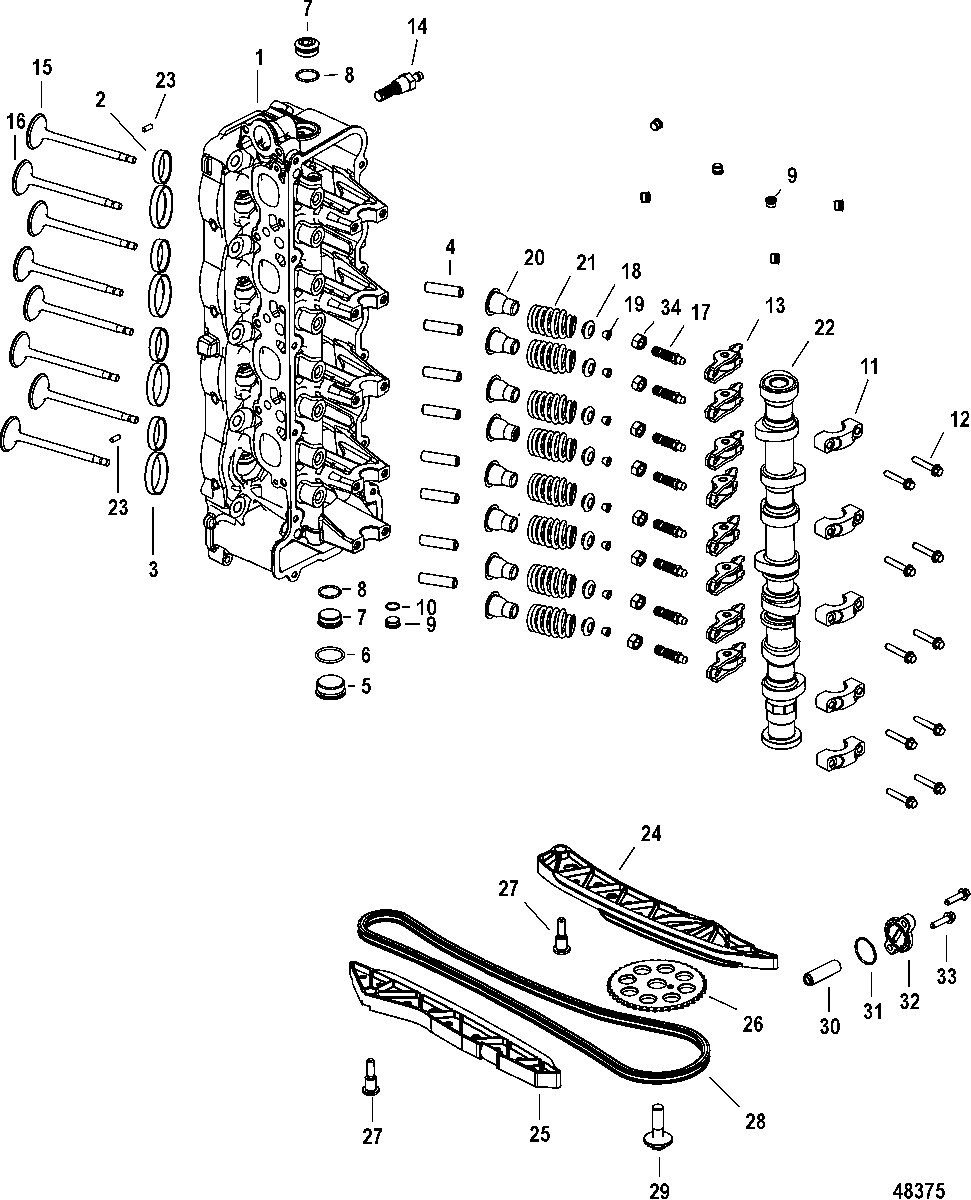

Cylinder Head and Camshaft для Mercury - 150 (4-Stroke) 1B905505 & Up

№

Артикул

Название
-

900-8M0098629 CYLINDER HEAD ASSEMBLY
Non SeaPro

CYLINDER HEAD ASSEMBLY
Non SeaPro

171 310 ₽
-

900-8M0098629 CYLINDER HEAD ASSEMBLY
SeaPro

CYLINDER HEAD ASSEMBLY
SeaPro

171 310 ₽
1

8M0057648 CYLINDER HEAD, Bare

CYLINDER HEAD, Bare

74 720 ₽
2

8M0029981 VALVE SEAT, Exhaust

VALVE SEAT, Exhaust

4 060 ₽
3

8M0029982 VALVE SEAT, Intake

VALVE SEAT, Intake

4 080 ₽
4

8M0029980 VALVE GUIDE

VALVE GUIDE

5 440 ₽
5

19-8M0087454 PLUG, (30 MM)

PLUG, (30 MM)

790 ₽
6

NSS NOT SOLD SEPARATE, O-ring, M2.5 X 7

NOT SOLD SEPARATE, O-ring, M2.5 X 7

0 ₽
7

19-8M0087453 PLUG, (24 MM)

PLUG, (24 MM)

680 ₽
8

NSS NOT SOLD SEPARATE, O-ring, M2 X 21

NOT SOLD SEPARATE, O-ring, M2 X 21

0 ₽
9

19-8M0087446 PLUG, (10 MM)

PLUG, (10 MM)

250 ₽
10

NSS NOT SOLD SEPARATE, O-ring, M1.5 X 7

NOT SOLD SEPARATE, O-ring, M1.5 X 7

0 ₽
11

NSS NOT SOLD SEPARATE

NOT SOLD SEPARATE

0 ₽
12

10-892454035 BOLT, (M6 x 36)

BOLT, (M6 x 36)

200 ₽
13

8M0032524 ROLLER FINGER FOLLOWER ASSY

ROLLER FINGER FOLLOWER ASSY

4 670 ₽
14

22-8M0058214 FITTING, Water Strainer

FITTING, Water Strainer

230 ₽
15

8M0098634 VALVE, Exhaust
Non SeaPro

VALVE, Exhaust
Non SeaPro

2 280 ₽
15

8M0098635 VALVE, Exhaust
SeaPro

VALVE, Exhaust
SeaPro

1 800 ₽
16

8M0098635 VALVE, Intake
Non SeaPro

VALVE, Intake
Non SeaPro

1 800 ₽
16

8M0098634 VALVE, Intake
SeaPro

VALVE, Intake
SeaPro

2 280 ₽
17

16-8M0047625 STUD, Ball End M10 X 1

STUD, Ball End M10 X 1

670 ₽
18

8M0037758 RETAINER, Valve

RETAINER, Valve

630 ₽
19

28-8M0035317 KEY, Valve Retainer
2 per valve

KEY, Valve Retainer
2 per valve

30 ₽
20

8M0074434 VALVE SEAL KIT

VALVE SEAL KIT

3 420 ₽
21

24-8M6001704 SPRING, Valve

SPRING, Valve

1 070 ₽
22

400-8M0057653 CAMSHAFT ASSEMBLY

CAMSHAFT ASSEMBLY

47 810 ₽
23

17-8M0084726 PIN, Dowel (.187 x .530)

PIN, Dowel (.187 x .530)

370 ₽
24

8M0035600 BLADE, Timing Chain

BLADE, Timing Chain

3 170 ₽
25

8M0035484 GUIDE, Fixed, Timing Chain

GUIDE, Fixed, Timing Chain

3 060 ₽
26

43-880550 SPROCKET

SPROCKET

6 580 ₽
27

10-8M0086569 SCREW, Shoulder, M8 X 1.25 MM

SCREW, Shoulder, M8 X 1.25 MM

420 ₽
28

8M0126057 CHAIN, Cam

CHAIN, Cam

9 490 ₽
29

10-8M0021532 SCREW, (M12 x 40 MM), Left Hand Thread

SCREW, (M12 x 40 MM), Left Hand Thread

1 020 ₽
30

8M0057657 TENSIONER ASSY, Timing Chain

TENSIONER ASSY, Timing Chain

4 820 ₽
31

25-898836 O-RING, Brown

O-RING, Brown

260 ₽
32

1100-8M0064752 END CAP, Cam Tensioner

END CAP, Cam Tensioner

1 500 ₽
33

10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel

SCREW, (M6 x 25 MM) Stainless Steel

190 ₽
34

11-8M0047686 NUT, M10 X 1

NUT, M10 X 1

10 790 ₽
