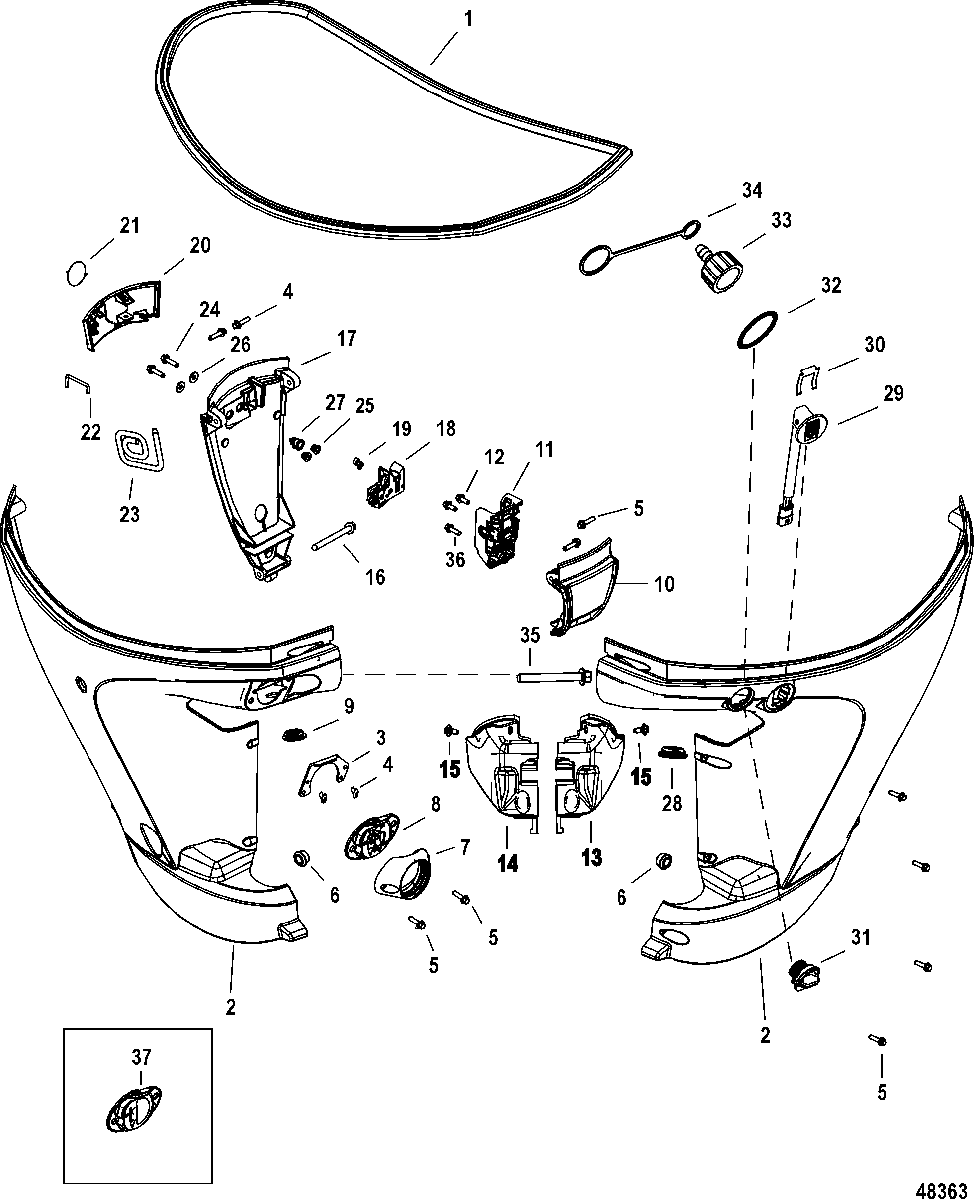

Lower Cowl для Mercury - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
18M0109220 SEAL, Top CowlSEAL, Top Cowl
-
2100-8M0057756 CHAP ASSEMBLY, Port and StarboardCHAP ASSEMBLY, Port and Starboard
-
38M0047717 PLATE, Ingress MountingPLATE, Ingress Mounting
-
410-8M0047718 SCREW, (M5 X 8MM)SCREW, (M5 X 8MM)
-
510-8M0022324 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
68M0039082 CAP, Chap SupportCAP, Chap Support
-
78M0057348 ADAPTER, Rigging HoseADAPTER, Rigging Hose
-
88M0061055 INGRESS GROMMETINGRESS GROMMET
-
925-8M0048006 GROMMET, Trim WiresGROMMET, Trim Wires
-
10100-8M0057758 LOWER COWL FRONT ASSYLOWER COWL FRONT ASSY
-
118M0047810 RETAINER, Top Cowl LatchRETAINER, Top Cowl Latch
-
1210-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
13100-8M0093776 COVER, Upper Mount - PortCOVER, Upper Mount - Port
-
14100-8M0093777 COVER, Upper Mount - STBDCOVER, Upper Mount - STBD
-
1510-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
1610-8M0071078 SCREW, M6 X 85 MMSCREW, M6 X 85 MM
-
-8M0057760 PANEL ASSEMBLY, RearPANEL ASSEMBLY, Rear
-
178M0034063 PANEL, REARPANEL, REAR
-
188M0041031 REAR LATCH ASSEMBLYREAR LATCH ASSEMBLY
-
198M0006054 RETAINERRETAINER
-
208M0047782 HANDLE LATCHHANDLE LATCH
-
2137-8M0043701 M-ICON, 39MM - SmallM-ICON, 39MM - Small
-
228M0031367 LATCH LINK, RearLATCH LINK, Rear
-
2317-8M0034065 PIN, HandlePIN, Handle
-
2410-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
2523-8M0047796 BUSHINGBUSHING
-
2612-4002316 WASHERWASHER
-
278M0056980 SEAL, Rear LatchSEAL, Rear Latch
-
2825-8M0048008 GROMMET, Trim Sensor WiresGROMMET, Trim Sensor Wires
-
2987-8M0037225 TRIM SWITCH, Round BezelTRIM SWITCH, Round Bezel
-
308M0032848 RETAINERRETAINER
-
3122-888958001 PLUGPLUG
-
328M0047301 SEAL, Flush Plug PocketSEAL, Flush Plug Pocket
-
3322-885361A01 FITTING ASSEMBLY, FlushFITTING ASSEMBLY, Flush
-
34889823001 TETHERTETHER
-
3510-88552550 SCREW, (M6 x 50 MM) Stainless SteelSCREW, (M6 x 50 MM) Stainless Steel
-
3610-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
378M0062583 GROMMET
Rigging Tube (Accessory)GROMMET
Rigging Tube (Accessory)
