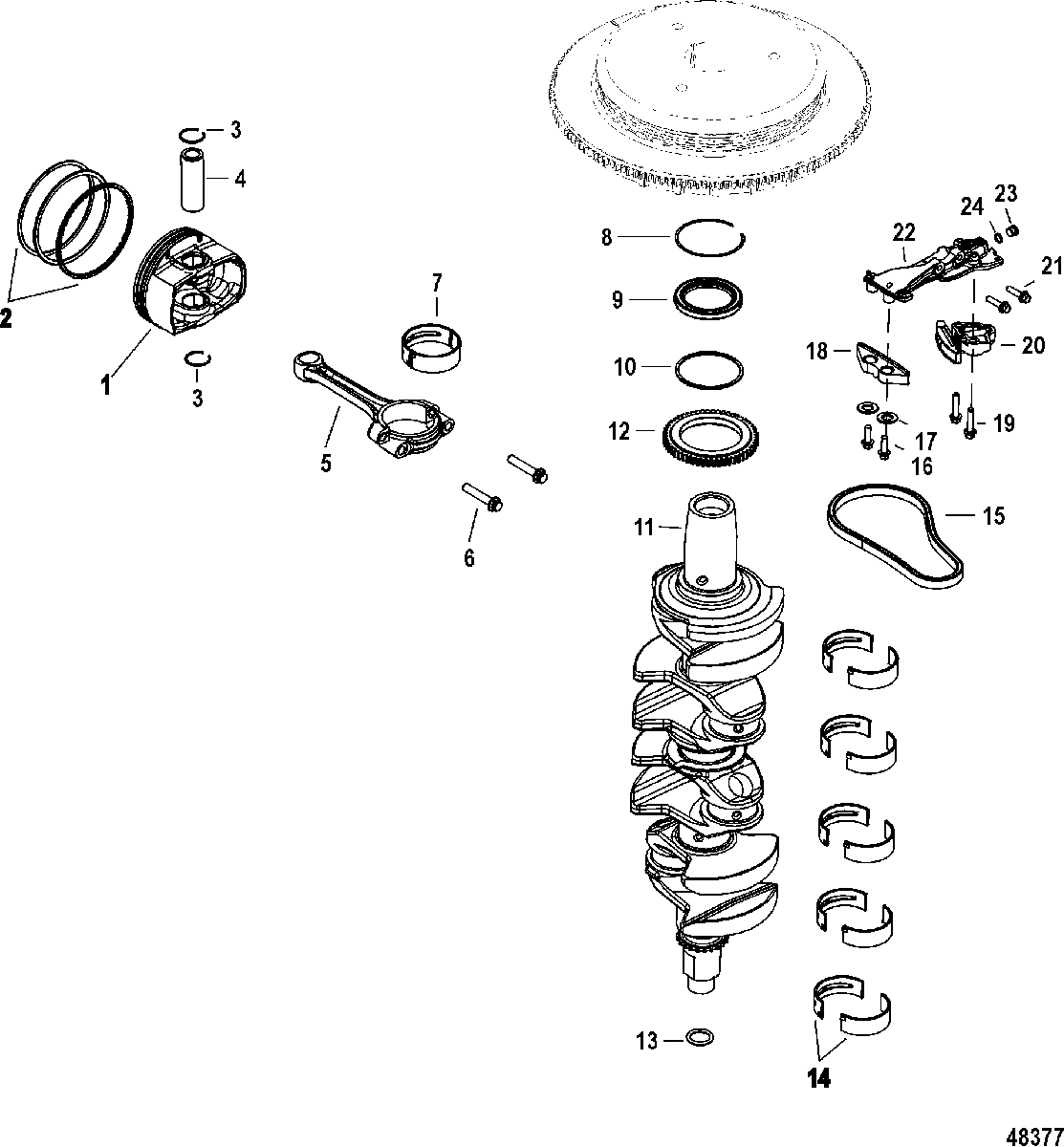

Crankshaft, Pistons and Connecting Rods для Mercury - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
1700-8M0075695 PISTON ASSEMBLY
SN# 0B038438 & BelowPISTON ASSEMBLY
SN# 0B038438 & Below -
1700-8M0098836 PISTON ASSEMBLY
SN# 0B038439 & UpPISTON ASSEMBLY
SN# 0B038439 & Up -
239-8M0084139 PISTON RING SET
SN# 0B038438 & BelowPISTON RING SET
SN# 0B038438 & Below -
239-8M0098837 PISTON RING SET
SN# 0B038439 & UpPISTON RING SET
SN# 0B038439 & Up -
3NSS NOT SOLD SEPARATE, OIL RING ASSEMBLYNOT SOLD SEPARATE, OIL RING ASSEMBLY
-
48M0057629 CIRCLIP, Piston
SN# 0B038438 & BelowCIRCLIP, Piston
SN# 0B038438 & Below -
440-881184 CIRCLIP
SN# 0B038439 & UpCIRCLIP
SN# 0B038439 & Up -
5NSS NOT SOLD SEPARATE, Wrist pinNOT SOLD SEPARATE, Wrist pin
-
6600-8M0057663 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
710-8M0064457 BOLT, RodBOLT, Rod
-
823-8M0057664 BEARING, Connecting Rod, OrangeBEARING, Connecting Rod, Orange
-
823-8M0057691 BEARING, Connecting Rod, WhiteBEARING, Connecting Rod, White
-
823-8M0057692 BEARING, Connecting Rod,Navy BlueBEARING, Connecting Rod,Navy Blue
-
953-8M0071542 RETAINING RINGRETAINING RING
-
1026-8M0035127 SEAL, Top main brg flywheel endSEAL, Top main brg flywheel end
-
1123-8M0036025 SPACERSPACER
-
12400-8M0057666 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
1325-8M0034912 O-RING, 3.78 X 21.32O-RING, 3.78 X 21.32
-
1423-8M0057665 BEARING SET, Main, OrangeBEARING SET, Main, Orange
-
1423-8M0057681 BEARING SET, Main, WhiteBEARING SET, Main, White
-
1423-8M0057683 BEARING SET, Main, BlueBEARING SET, Main, Blue
-
1423-8M0057689 BEARING SET, Main, GreenBEARING SET, Main, Green
-
158M0057669 CHAIN, Balance ShaftCHAIN, Balance Shaft
-
1610-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1712-4002316 WASHERWASHER
-
188M0051757 BALANCE SHAFT, VespelBALANCE SHAFT, Vespel
-
1910-8M0103808 SCREW, (M6 x 30 MM) Stainless SteelSCREW, (M6 x 30 MM) Stainless Steel
-
208M0086230 HYDRAULIC TENSIONER ASSY, VespelHYDRAULIC TENSIONER ASSY, Vespel
-
2110-8M0058350 SCREW, M6X1X25SCREW, M6X1X25
-
228M0082257 TENSIONER BRACKET, HydraulicTENSIONER BRACKET, Hydraulic
-
2319-8M0087446 PLUG, (10 MM)PLUG, (10 MM)
-
24NSS NOT SOLD SEPARATE, O-ring, M1.5 X 7NOT SOLD SEPARATE, O-ring, M1.5 X 7
