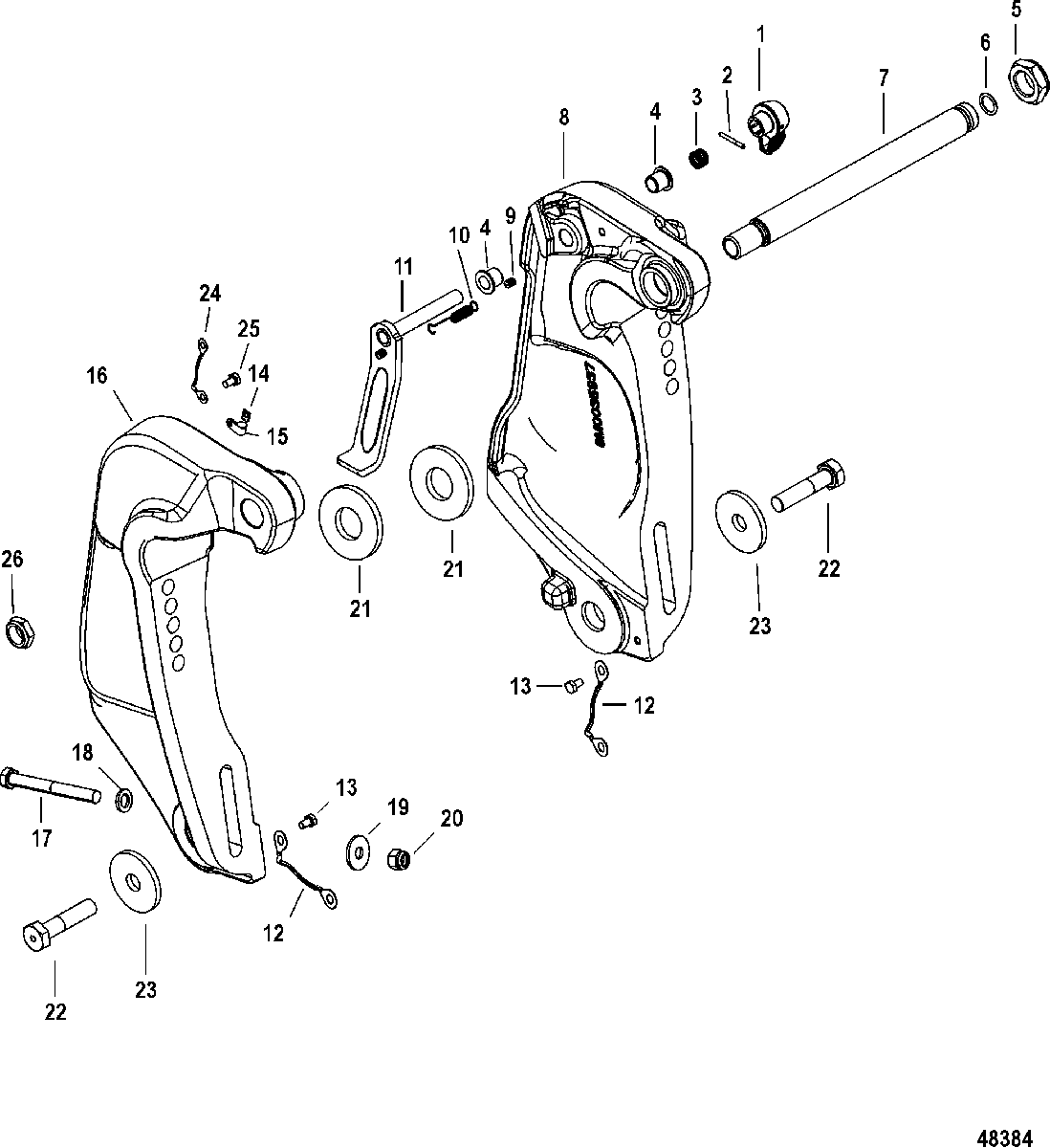

Transom Bracket для Mercury - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
18M0007470 KNOBKNOB
-
217-8M0021914 PIN , (.125 x 30 mm)PIN , (.125 x 30 mm)
-
324-830900 SPRING, CompressionSPRING, Compression
-
423-8M0054598 BEARING, Tilt Lock .05 inch ID FLGBEARING, Tilt Lock .05 inch ID FLG
-
511-826135 NUT, (1.00-14) Nylon InsertNUT, (1.00-14) Nylon Insert
-
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
7826125A1 TILT TUBETILT TUBE
-
81400-8M0057721 TRANSOM BRACKET, Port, PaintedTRANSOM BRACKET, Port, Painted
-
917-893709 PINPIN
-
1024-830899 SPRING, TensionSPRING, Tension
-
118M0088801 LEVER ASSY, Tilt LockLEVER ASSY, Tilt Lock
-
128M0062746 CABLE ASSEMBLYCABLE ASSEMBLY
-
1310-4000325 SCREW, (M6 x 8)SCREW, (M6 x 8)
-
1412-8M0084612 C-WASHERC-WASHER
-
1554-8M0051768 CLAMP, Cable .375CLAMP, Cable .375
-
161400-8M0061365 BRACKET, Transom STBD, paintBRACKET, Transom STBD, paint
-
1710-8M0071543 SCREW, (.500-20 x 5.00 HX HD)SCREW, (.500-20 x 5.00 HX HD)
-
1812-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
1912-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2011-82671117 NUT, (.500-20)NUT, (.500-20)
-
2112-8M0057591 WASHER, ThrustWASHER, Thrust
-
2210-8M0041013 SCREW, M8X1.25 HEX HDSCREW, M8X1.25 HEX HD
-
2312-8M0054606 WASHER, Flat 31.69 OD X 9.01 ID X 3.048 THKWASHER, Flat 31.69 OD X 9.01 ID X 3.048 THK
-
248M0050046 CABLE ASSEMBLYCABLE ASSEMBLY
-
2510-4010610 SCREW, (M6 x 10) Stainless SteelSCREW, (M6 x 10) Stainless Steel
-
2611-826164 NUT, (.875-14)NUT, (.875-14)
-
278M0072610 TILT LOCK LEVER KIT-F150, (L) (XL) (CXL)TILT LOCK LEVER KIT-F150, (L) (XL) (CXL)
-
2823-8M0054598 BEARING, Tilt Lock .05 inch ID FLGBEARING, Tilt Lock .05 inch ID FLG
-
2917-8M0021914 PIN , (.125 x 30 mm)PIN , (.125 x 30 mm)
-
308M0007470 KNOBKNOB
-
318M0059532 TRIM LIMIT MODULETRIM LIMIT MODULE
-
3254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3313541 PLUG, MalePLUG, Male
-
3423-8M0059091 BEARING, Tilt pin 26.38IDX42LGBEARING, Tilt pin 26.38IDX42LG
