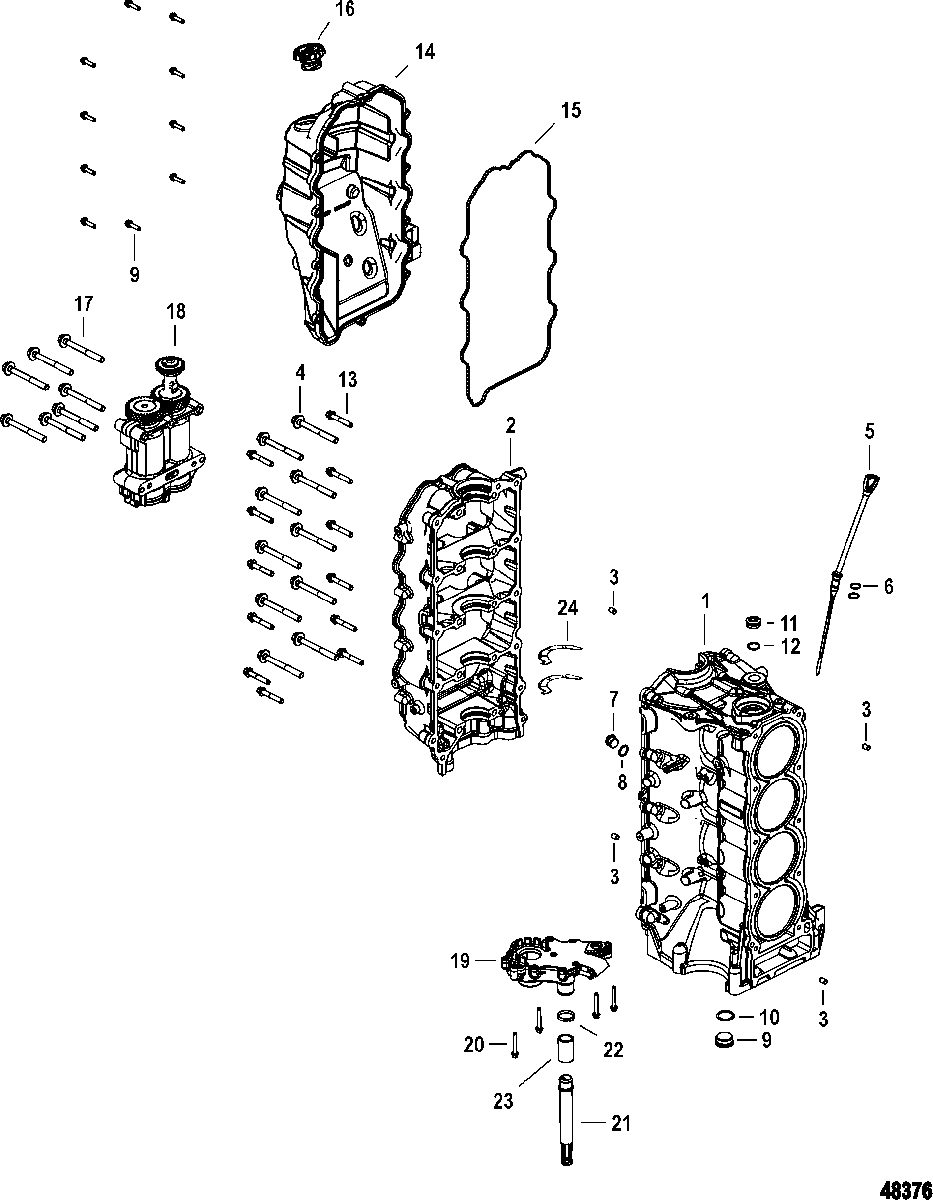

Cylinder Block для Mercury - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
1800-8M0122813 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
2NSS NOT SOLD SEPARATE, BedplateNOT SOLD SEPARATE, Bedplate
-
317-893540 PIN, Dowel, 8x12 longPIN, Dowel, 8x12 long
-
410-8M0071220 SCREW, M10X1.50X95 HX FLG HDSCREW, M10X1.50X95 HX FLG HD
-
58M0074826 DIPSTICK ASSEMBLYDIPSTICK ASSEMBLY
-
625-8M0048519 O-RING, 012, VitonO-RING, 012, Viton
-
719-8M0087451 PLUG, (18 MM)PLUG, (18 MM)
-
8NSS NOT SOLD SEPARATE, O-ring, M2 X 15NOT SOLD SEPARATE, O-ring, M2 X 15
-
919-8M0087454 PLUG, (30 MM)PLUG, (30 MM)
-
10NSS NOT SOLD SEPARATE, O-ring, M2.5 X 27NOT SOLD SEPARATE, O-ring, M2.5 X 27
-
1119-8M0087453 PLUG, (24 MM)PLUG, (24 MM)
-
12NSS NOT SOLD SEPARATE, O-ring, M2 X 21NOT SOLD SEPARATE, O-ring, M2 X 21
-
1310-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
148M0057645 CRANKCASE COVERCRANKCASE COVER
-
158M0069596 SEAL, Crankcase CoverSEAL, Crankcase Cover
-
168M0065093 CAPCAP
-
1710-8M0146359 SCREW, (M8 X 1.25 X 95)SCREW, (M8 X 1.25 X 95)
-
188M0057670 BALANCE SHAFT ASSEMBLYBALANCE SHAFT ASSEMBLY
-
198M0057658 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
2010-8M0103810 SCREW, (M6 x 45 MM) Stainless SteelSCREW, (M6 x 45 MM) Stainless Steel
-
-8M0055655 OIL PICK UP ASSEMBLYOIL PICK UP ASSEMBLY
-
218M0090807 OIL PICKUP TUBE ASSEMBLYOIL PICKUP TUBE ASSEMBLY
-
2254-8M6000385 CLAMP, (39.6 MM)CLAMP, (39.6 MM)
-
2332-8M0055656 HOSE, Oil PickupHOSE, Oil Pickup
-
2412-8M0043913 THRUST WASHERTHRUST WASHER
-
-27-8M0057763 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-8M0122811 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
-
-61-8M0122812 SHORT BLOCK ASSEMBLYSHORT BLOCK ASSEMBLY
