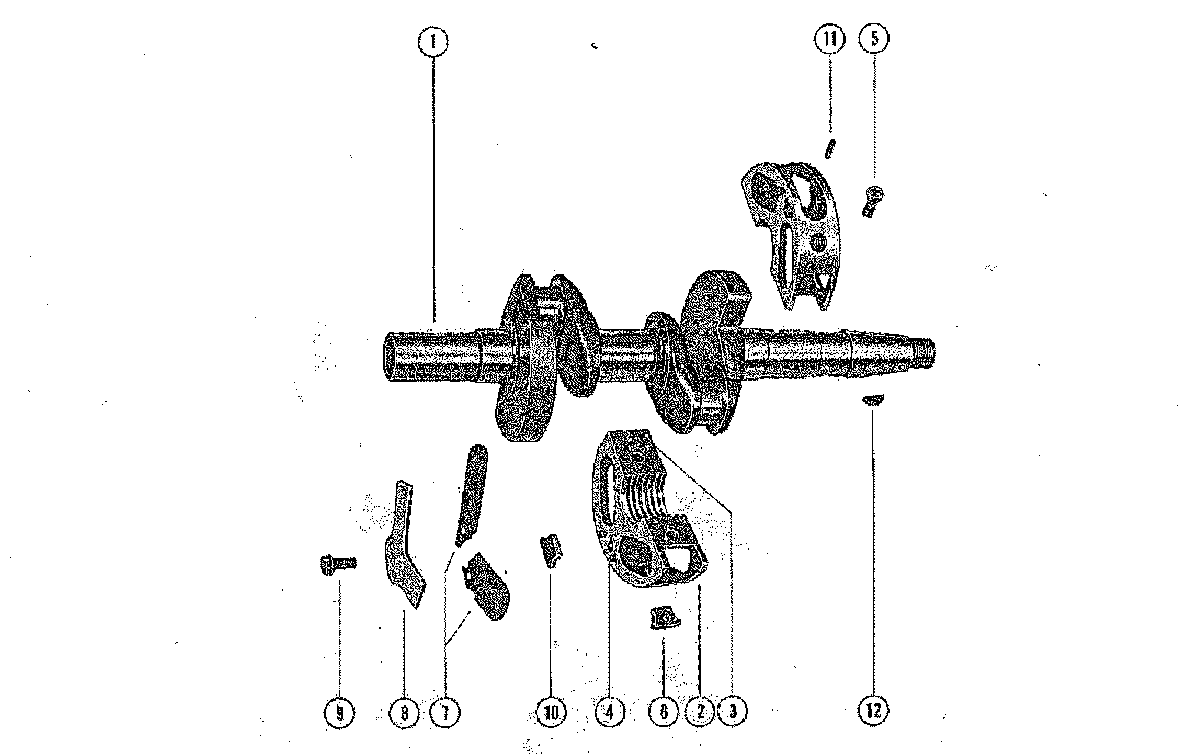

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY для Mercury - 200 3226958 THRU 3537530
-
№АртикулНазвание
-
1415-4478 CRANKSHAFTCRANKSHAFT
-
2534-3267T25 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
317-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
417-65855 PIN, REED STOPPIN, REED STOP
-
510-45775 SCREW, CENTER MAIN BEARING CLAMPING (9/16")SCREW, CENTER MAIN BEARING CLAMPING (9/16")
-
617-45574 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
734-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)REED SET, CENTER MAIN BEARING (MATCHED)
-
834-64632 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
910-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
1011-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1117-20032 DOWEL PIN, MAIN BEARING TO CYL BLOCKDOWEL PIN, MAIN BEARING TO CYL BLOCK
-
1228-20094 KEY, FLYWHEELKEY, FLYWHEEL
