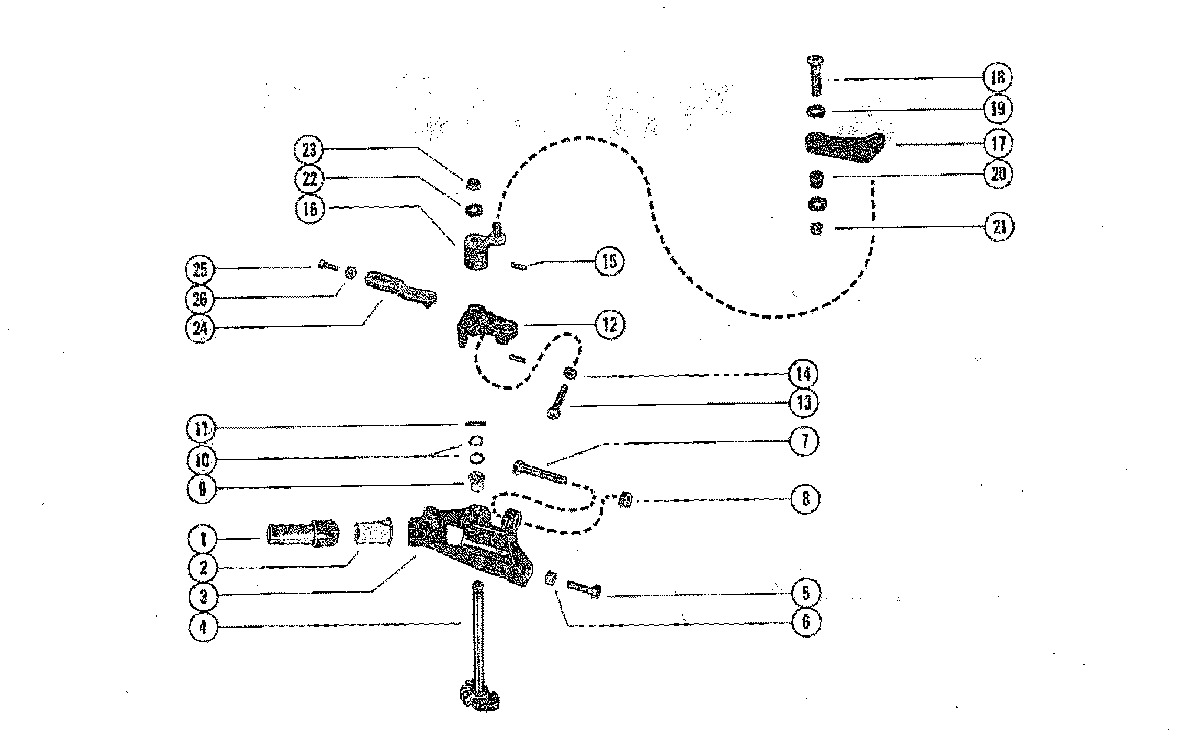

THROTTLE CONTROL LINKAGE для Mercury - 200 3226958 THRU 3537530
-
№АртикулНазвание
-
143-61533 GEAR, PINION - THROTTLE CONTROLGEAR, PINION - THROTTLE CONTROL
-
223-31011 BUSHING, NYLON - THROTTLE CONTROL HOUSINGBUSHING, NYLON - THROTTLE CONTROL HOUSING
-
376357 HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
443-60863 SHAFT AND GEAR, THROTTLESHAFT AND GEAR, THROTTLE
-
510-20653 SCREW, THROTTLE CONTROL HOUSING FASTENING (1") - LOWERSCREW, THROTTLE CONTROL HOUSING FASTENING (1") - LOWER
-
611-20184 NUT, THROTTLE CONTROL HOUSING SCREWNUT, THROTTLE CONTROL HOUSING SCREW
-
710-21091 SCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - UPPERSCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - UPPER
-
811-20184 NUT, THROTTLE CONTROL HOUSING SCREWNUT, THROTTLE CONTROL HOUSING SCREW
-
923-33462 BUSHING, NYLON - SHAFT AND GEAR (THROTTLE CONTROL HOUSING)BUSHING, NYLON - SHAFT AND GEAR (THROTTLE CONTROL HOUSING)
-
1012-20086 WASHER, THROTTLE SHAFT AND GEARWASHER, THROTTLE SHAFT AND GEAR
-
1117-36325 PIN, THROTTLE SHAFT AND GEARPIN, THROTTLE SHAFT AND GEAR
-
1246413 THROTTLE LEVER, VERTICAL SHAFTTHROTTLE LEVER, VERTICAL SHAFT
-
1310-22960 SCREW, VERTICAL SHAFT THROTTLE LEVER (1 3/8")SCREW, VERTICAL SHAFT THROTTLE LEVER (1 3/8")
-
1411-25168 NUT, VERTICAL SHAFT THROTTLE LEVER SCREWNUT, VERTICAL SHAFT THROTTLE LEVER SCREW
-
1591-24686 PIN, GROOVE - STATOR PLATE LEVER TO VERTICAL SHAFTPIN, GROOVE - STATOR PLATE LEVER TO VERTICAL SHAFT
-
1660864 LEVER, STATOR PLATE - VERTICAL SHAFTLEVER, STATOR PLATE - VERTICAL SHAFT
-
1756700 LEVER, STATOR PLATE CONTROLLEVER, STATOR PLATE CONTROL
-
1810-22659 SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")
-
1912-71055 WASHER, STARTER HOUSING SCREW
PART OF STARTER HOUSING ASSEMBLYWASHER, STARTER HOUSING SCREW
PART OF STARTER HOUSING ASSEMBLY -
2023-46406 BUSHING, STATOR PLATE CONTROL LEVERBUSHING, STATOR PLATE CONTROL LEVER
-
2111-8267089 NUT, STARTER HOUSING TO CRANKCASE SCREWNUT, STARTER HOUSING TO CRANKCASE SCREW
-
2212-24664 WASHER, SHAFT AND GEARWASHER, SHAFT AND GEAR
-
2311-826709109 NUT, SHAFT AND GEARNUT, SHAFT AND GEAR
-
2446405 LINK, THROTTLE CLUSTERLINK, THROTTLE CLUSTER
-
2510-69011 SCREW< THROTTLE CLUSTER LINK (7/8")SCREW< THROTTLE CLUSTER LINK (7/8")
-
2611-68219 NUT, JAM - THROTTLE CLUSTER LINK SCREWNUT, JAM - THROTTLE CLUSTER LINK SCREW
