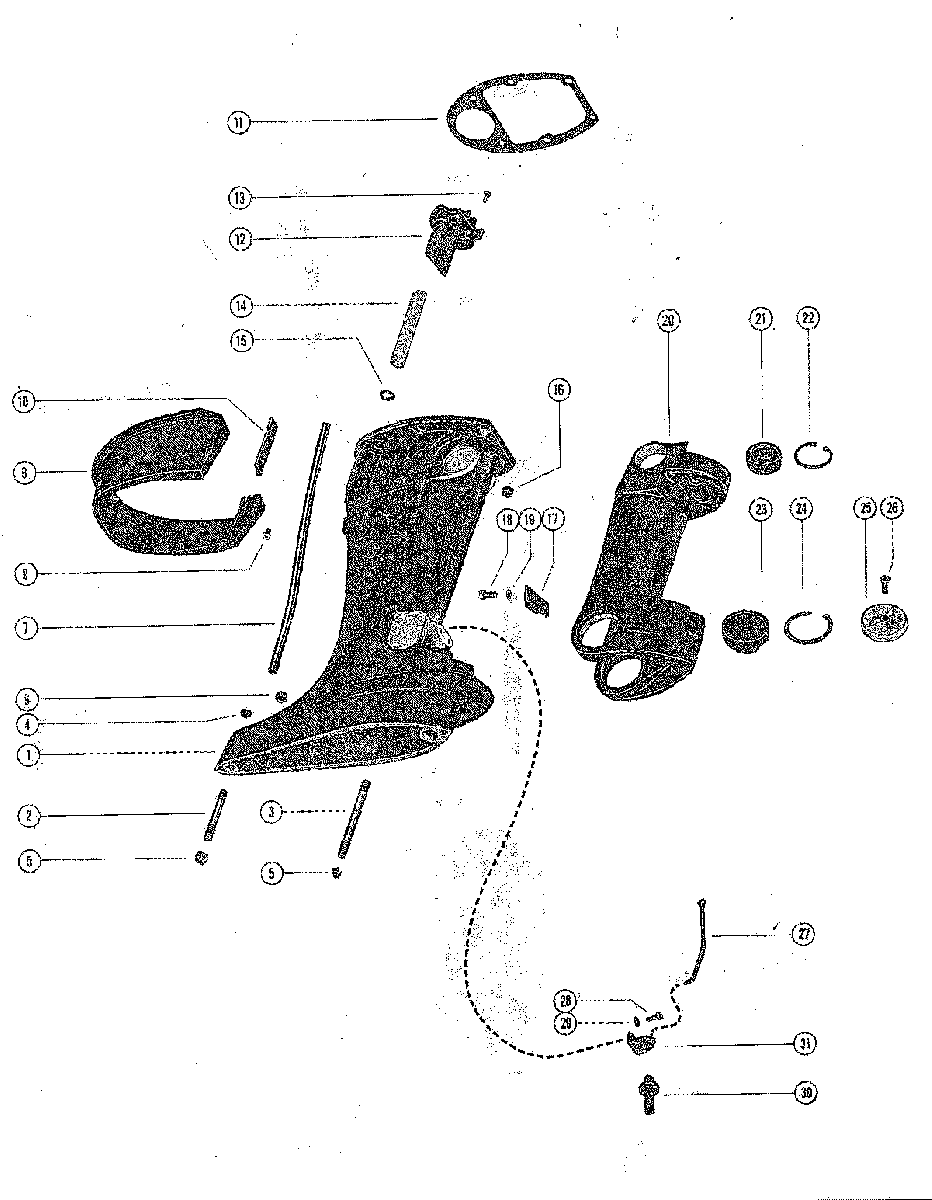

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 200 3226958 THRU 3537530
-
№АртикулНазвание
-
11561-6007A2 DRIVE SHAFT HOUSING, ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING, ASSEMBLY (SHORT SHAFT)
-
11560-7679A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-66373 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 5/16")STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 5/16")
-
316-58134 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (3 15/16")STUD, DRIVE SHAFT HSG. TO GEAR HSG. (3 15/16")
-
419-32298 PLUG, DRIVE SHAFT HOUSING STUDPLUG, DRIVE SHAFT HOUSING STUD
-
511-82670911 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
611-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING SUTDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING SUTD
-
732-39586 TUBE, WATER OUTLET (SHORT SHAFT)TUBE, WATER OUTLET (SHORT SHAFT)
-
732-39587 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
839301 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
910-35012 SCREW, TRIM COVER TO BOTTOM COWL (5/8")SCREW, TRIM COVER TO BOTTOM COWL (5/8")
-
1039353 SEAL, RUBBER - TRIM COVERSEAL, RUBBER - TRIM COVER
-
1127-39402 GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSINGGASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
-
1239492 PLATE, IDLE RELIEFPLATE, IDLE RELIEF
-
1310-35519 SCREW, IDLE RELIEF PLATE TO DRIVE SHAFT HOUSING (1/2")SCREW, IDLE RELIEF PLATE TO DRIVE SHAFT HOUSING (1/2")
-
1432-45054 TUBE, NYLON - IDLE RELIEF TUBETUBE, NYLON - IDLE RELIEF TUBE
-
1525-201951 "O" RING, IDLE RELIEF TUBE"O" RING, IDLE RELIEF TUBE
-
1611-29250 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1611-29250 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1733420 BUMPER, RUBBER -SADDLEBUMPER, RUBBER -SADDLE
-
1810-31716 SCREW, RUBBER BUMPER TO SADDLE (5/8")SCREW, RUBBER BUMPER TO SADDLE (5/8")
-
1913-26992 LOCKWASHER, RUBBER BUMPER SCREWLOCKWASHER, RUBBER BUMPER SCREW
-
201562-7098A1 SADDLESADDLE
-
2185003 MOUNT, RUBBER - UPPER (SHORT SHAFT)MOUNT, RUBBER - UPPER (SHORT SHAFT)
-
2185002 MOUNT, RUBBER - UPPER (LONG SHAFT)MOUNT, RUBBER - UPPER (LONG SHAFT)
-
2253-23720 RING, RETAINING - UPPER MOUNTRING, RETAINING - UPPER MOUNT
-
2379948A1 MOUNT, RUBBER - LOWER (SHORT SHAFT)MOUNT, RUBBER - LOWER (SHORT SHAFT)
-
2379947A1 MOUNT, RUBBER - LOWER (LONG SHAFT)MOUNT, RUBBER - LOWER (LONG SHAFT)
-
2453-8M0051043 RING, RETAINING - LOWER MOUNTRING, RETAINING - LOWER MOUNT
-
2570317 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2610-28638 SCREW, LOWER MOUNT COVER FASTENING (3/4")SCREW, LOWER MOUNT COVER FASTENING (3/4")
-
2776536 LINK ROD, REVERSE LOCKLINK ROD, REVERSE LOCK
-
2810-65414 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
-
2913-26992 LOCKWASHER, CAM RETAINER SCREWLOCKWASHER, CAM RETAINER SCREW
-
3065216 CAM, REVERSE LOCKCAM, REVERSE LOCK
-
3172007 RETAINER, REVERSE LOCK CAMRETAINER, REVERSE LOCK CAM
