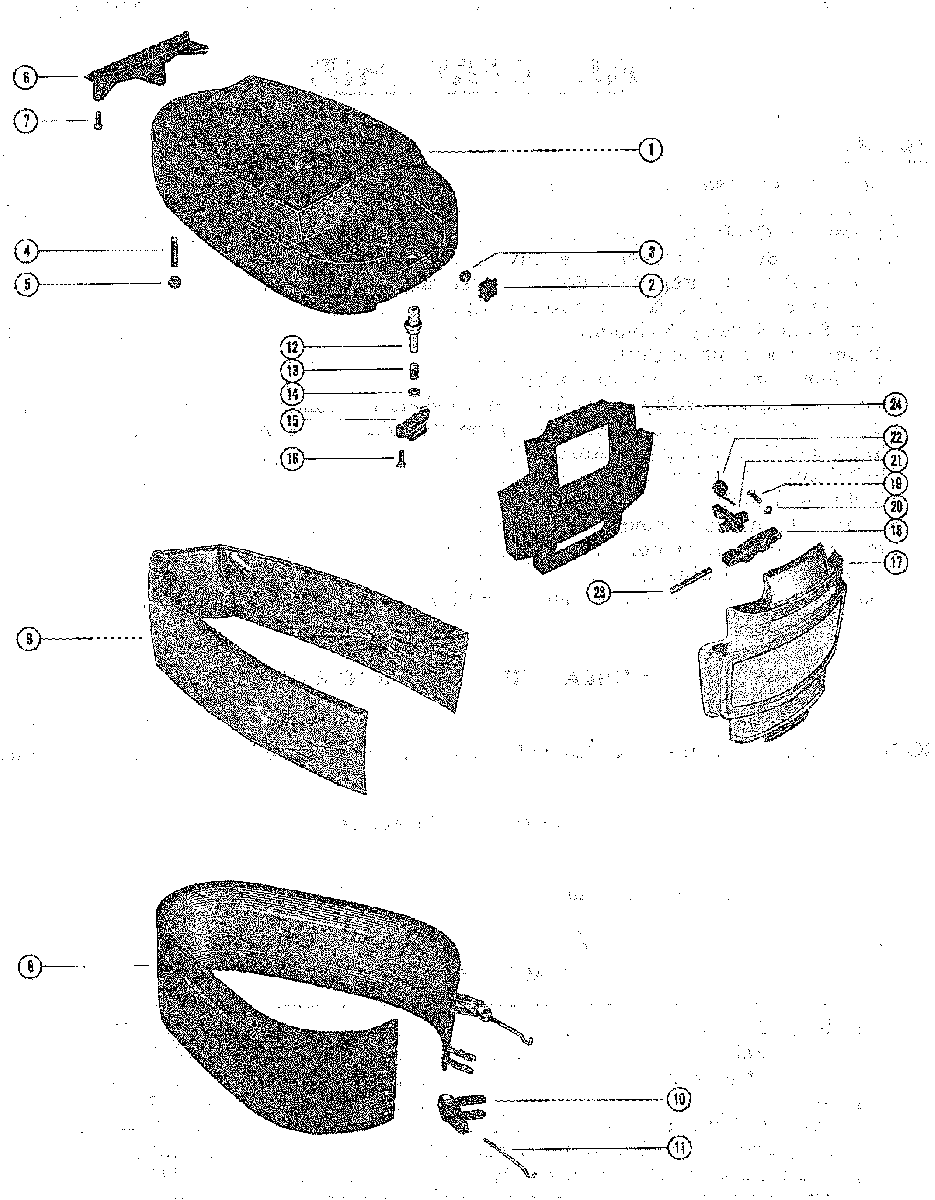

TOP COWL, WRAP AROUND COWL AND FRONT COVER для Mercury - 200 3226958 THRU 3537530
-
№АртикулНазвание
-
12130-4361A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
258657 INSERT, ROPE GUIDE - TOP COWLINSERT, ROPE GUIDE - TOP COWL
-
353-72168 RING, RETIAINING - ROPE GUIDE TO TOP COWLRING, RETIAINING - ROPE GUIDE TO TOP COWL
-
416-21553 STUD, TOP COWL TO MOUNTING BRACKETS (1 1/2")STUD, TOP COWL TO MOUNTING BRACKETS (1 1/2")
-
511-82670911 NUT, TOP COWL STUDNUT, TOP COWL STUD
-
639400 SHIELD, REAR - TOP COWLSHIELD, REAR - TOP COWL
-
710-37370 SCREW< REAR SHIELD TO TOP COWL (5/8")SCREW< REAR SHIELD TO TOP COWL (5/8")
-
82133-2706A5 WRAP AROUND COWL ASSEMBLY, COMPLETEWRAP AROUND COWL ASSEMBLY, COMPLETE
-
939606 BLAKNET, SOUND ABSORBING - WRAP AROUND COWLBLAKNET, SOUND ABSORBING - WRAP AROUND COWL
-
1046785A1 COWL LATCH ASSEMBLYCOWL LATCH ASSEMBLY
-
1130413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1239628 BUTTON, FRONT COVER RELEASE - TOP COWLBUTTON, FRONT COVER RELEASE - TOP COWL
-
1324-20099 SPRING, COMPRESSION - FRONT COVER RELEASE BUTTONSPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
-
1412-29245 WASHER, FRONT COVER RELEASE BUTTONWASHER, FRONT COVER RELEASE BUTTON
-
1560865 CATCH, FRON COVER - TOP COWLCATCH, FRON COVER - TOP COWL
-
1610-22523 SCREW, FRONT COVER LATCH TO TOP COWL (3/4")SCREW, FRONT COVER LATCH TO TOP COWL (3/4")
-
172127-5669A2 FRONT COVER ASSEMBLY, COMPLETEFRONT COVER ASSEMBLY, COMPLETE
-
1860867A1 BASE ASSEMBLY, FRONT COVER LATCHBASE ASSEMBLY, FRONT COVER LATCH
-
1910-48409 SCREW, LATCH BASE TO FRONT COVER (5/8")SCREW, LATCH BASE TO FRONT COVER (5/8")
-
2012-26014 WASHER, LATCH BASE SCREWWASHER, LATCH BASE SCREW
-
2160866 HOOK, FRONT COVER LATCHHOOK, FRONT COVER LATCH
-
2224-39598 SPRING, TORSION - FRONT COVER LATCH HOOKSPRING, TORSION - FRONT COVER LATCH HOOK
-
2317-39599 PIN, PIVOT - FRONT COVER LATCH HOOKPIN, PIVOT - FRONT COVER LATCH HOOK
-
2439936 BLANKET, SOUND ABSORBING - FRONT COVERBLANKET, SOUND ABSORBING - FRONT COVER
