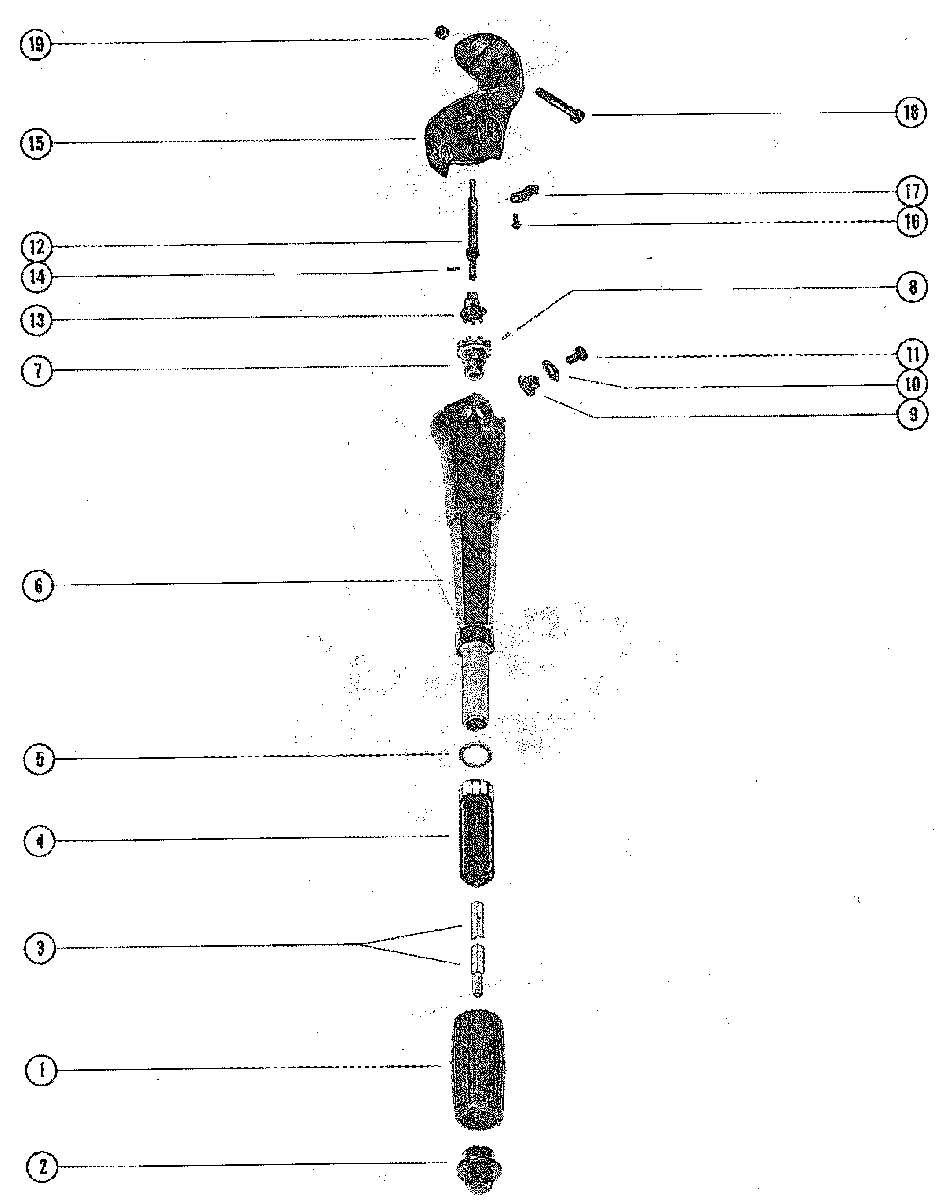

STEERING HANDLE ASSEMBLY для Mercury - 200 3226958 THRU 3537530

№

Артикул

Название
60850A6 STEERING HANDLE ASSEMBLY, COMPLETE

STEERING HANDLE ASSEMBLY, COMPLETE

0 ₽
1

60854 GRIP, HANDLE - THROTTLE

GRIP, HANDLE - THROTTLE

0 ₽
2

62251 CAP, HANDLE THROTTLE

CAP, HANDLE THROTTLE

0 ₽
3

66393 SHAFT, THROTTLE

SHAFT, THROTTLE

0 ₽
4

66394A1 HANDLE, THROTTLE SHAFT

HANDLE, THROTTLE SHAFT

0 ₽
5

12-62252 WASHER, THROTTLE HANDLE TO STEERING ARM

WASHER, THROTTLE HANDLE TO STEERING ARM

0 ₽
6

60850 ARM, STEERING HANDLE

ARM, STEERING HANDLE

0 ₽
7

43-60852 GEAR, BALL THROTTLE SHAFT

GEAR, BALL THROTTLE SHAFT

590 ₽
8

17-27088 PIN, BALL GEAR TO THROTTLE SHAFT

PIN, BALL GEAR TO THROTTLE SHAFT

0 ₽
9

48003 PIVOT, STEERING HANDLE TO BRACKET

PIVOT, STEERING HANDLE TO BRACKET

0 ₽
10

15-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)

SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)

0 ₽
11

10-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")

SCREW, STEERING HANDLE TO ARM BRACKET (5/8")

820 ₽
12

60857A2 UNIVERSAL JOINT ASSEMBLY

UNIVERSAL JOINT ASSEMBLY

0 ₽
13

43-60852 GEAR, BALL - UNIVERSAL JOINT

GEAR, BALL - UNIVERSAL JOINT

590 ₽
14

17-27088 PIN, BALL GEAR TO UNIVERSAL JOINT

PIN, BALL GEAR TO UNIVERSAL JOINT

0 ₽
15

61107A1 BRACKET, STEERING ARM

BRACKET, STEERING ARM

0 ₽
16

10-62233 SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")

SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")

0 ₽
17

24-72847 SPRING, DETENT - STEERING HANDLE

SPRING, DETENT - STEERING HANDLE

0 ₽
18

10-26132 SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")

SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")

0 ₽
19

11-29250 NUT, STEERING ARM BRACKET FASTENING SCREW

NUT, STEERING ARM BRACKET FASTENING SCREW

180 ₽
