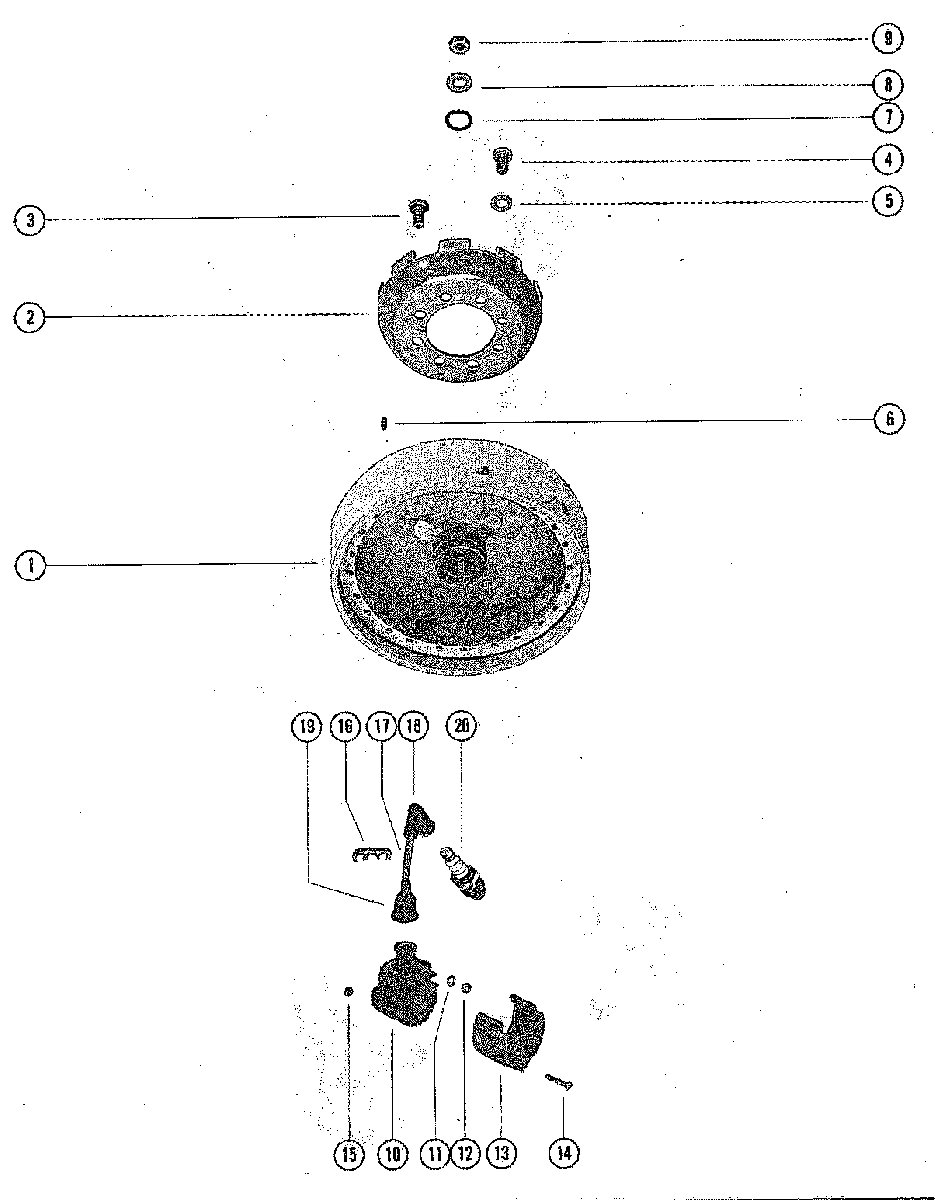

FLYWHEEL AND IGNITION COIL для Mercury - 200 3226958 THRU 3537530
-
№АртикулНазвание
-
1237-4474A1 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
250-33000A1 RATCHET ASSEMBLY, FLYWHEELRATCHET ASSEMBLY, FLYWHEEL
-
310-35563 SCREW, RATCHET TO FLYWHEEL (9/16")SCREW, RATCHET TO FLYWHEEL (9/16")
-
410-32417 SCREW, RATCHET TO FLYWHEEL (5/8")SCREW, RATCHET TO FLYWHEEL (5/8")
-
513-26992 LOCKWASHER, RATCHET SCREWLOCKWASHER, RATCHET SCREW
-
628-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
725-37340 "O" RING, FLYWHEEL NUT"O" RING, FLYWHEEL NUT
-
812-36281 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
911-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
10336-4528T2 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
1113-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
1211-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
1366355 COVER, IGNITION COILCOVER, IGNITION COIL
-
1410-61531 SCREW, COIL COVER TO REAR SUPPORT BRACKET (3 3/4")SCREW, COIL COVER TO REAR SUPPORT BRACKET (3 3/4")
-
1511-20110 NUT, COIL COVER SCREWNUT, COIL COVER SCREW
-
1654676 RETAINER, HIGH TENSION LEADRETAINER, HIGH TENSION LEAD
-
1784-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
18332-2854T01 NIPPLE, IGNITION COILNIPPLE, IGNITION COIL
-
1985-63709A1 PROTECTOR ASSEMBLY, SPARK PLUGPROTECTOR ASSEMBLY, SPARK PLUG
-
2033-97182Q SPARK PLUG (AC#40FFK)SPARK PLUG (AC#40FFK)
