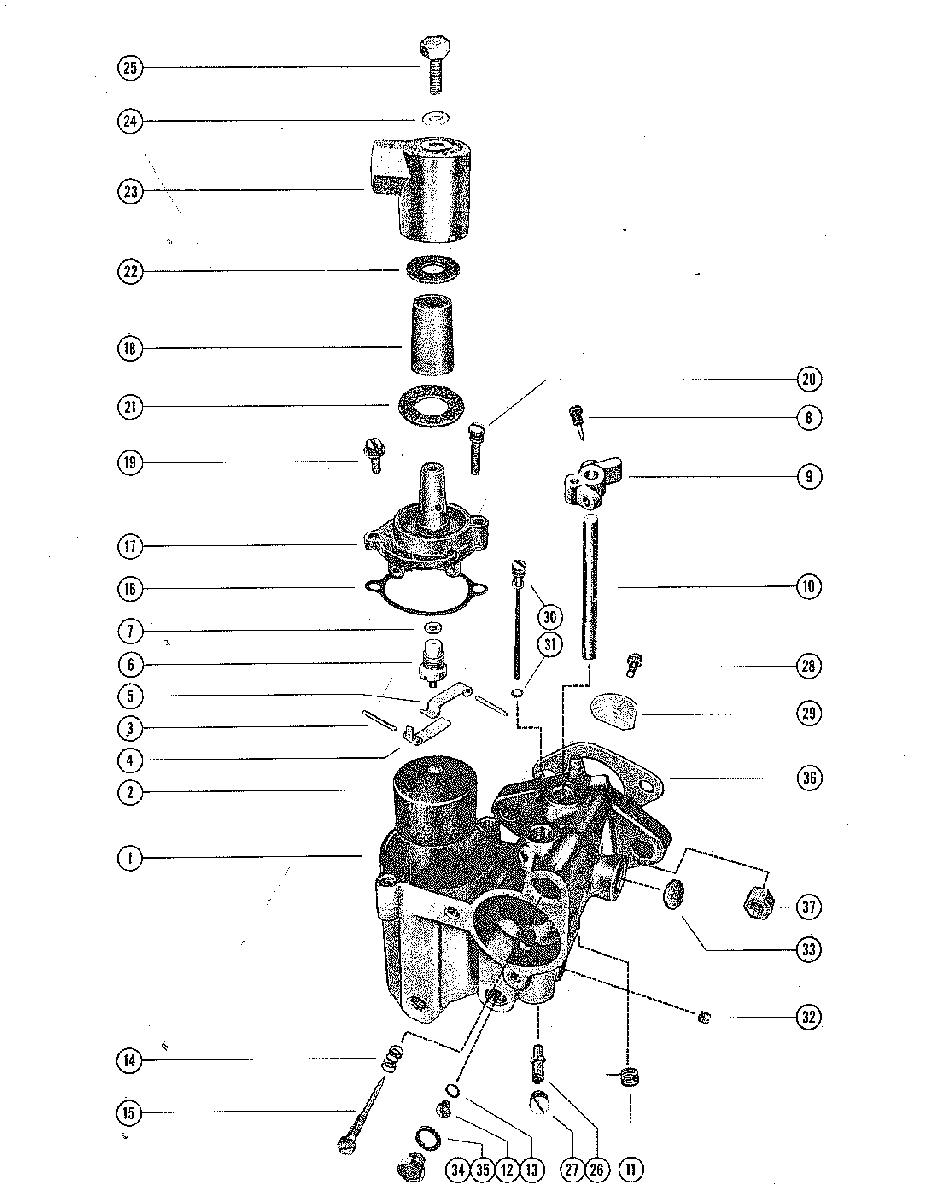

CARBURETOR ASSEMBLY для Mercury - 300 350 1271884 THRU 1448139
-
№АртикулНазвание
-
11326-1119 CARBURETOR ASSEMBLY, COMPLETE (AJ-50A)
SERIAL 00000000-01231089CARBURETOR ASSEMBLY, COMPLETE (AJ-50A)
SERIAL 00000000-01231089 -
11326-1604 CARBURETOR ASSEMBLY, COMPLETE (AJ-54A)
SERIAL 01231090-01324410CARBURETOR ASSEMBLY, COMPLETE (AJ-54A)
SERIAL 01231090-01324410 -
11334-1701 CARBURETOR ASSEMBLY, COMPLETE (KB-2A)
SERIAL 01324411-09999999CARBURETOR ASSEMBLY, COMPLETE (KB-2A)
SERIAL 01324411-09999999 -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
81395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
98146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
101399-933 SHAFT, THROTTLESHAFT, THROTTLE
-
101399-1716 SHAFT, THROTTLESHAFT, THROTTLE
-
1124-20869 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
1124-26890 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
-
--27-20848 GASKET, MAIN ADJUSTMENT SCREW GLANDGASKET, MAIN ADJUSTMENT SCREW GLAND
-
--1399-94 GLAND, MAIN ADJUSTMENT SCREWGLAND, MAIN ADJUSTMENT SCREW
-
--1399-108 PACKING, MAIN ADJUSTMENT SCREWPACKING, MAIN ADJUSTMENT SCREW
-
--11-20849 NUT, MAIN ADJUSTMENT SCREWNUT, MAIN ADJUSTMENT SCREW
-
--1399-932 SCREW, MAIN ADJUSTMENTSCREW, MAIN ADJUSTMENT
-
121399-1655 JET, MAIN FUEL (.055)JET, MAIN FUEL (.055)
-
121399-1653 JET, MAIN FUEL (.053)JET, MAIN FUEL (.053)
-
121399-1651 JET, MAIN FUEL (.051)JET, MAIN FUEL (.051)
-
121399-1649 JET, MAIN FUEL (.049)JET, MAIN FUEL (.049)
-
1327-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
1424-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
151399-931 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
151399-1623 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
151399-1713 SCRW, IDLE ADJUSTMENTSCRW, IDLE ADJUSTMENT
-
161399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
171399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
181399-3938 SCREEN, FILTER-NOT AS SHOWNSCREEN, FILTER-NOT AS SHOWN
-
1910-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
2010-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
2127-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
2227-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
231399-1135 COVER, STRAINERCOVER, STRAINER
-
2427-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
2510-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
261399-1715 NOZZLE, MAINNOZZLE, MAIN
-
2710-23178 SCREW, PLUG-MAIN NOZZLESCREW, PLUG-MAIN NOZZLE
-
2810-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
291399-107 SHUTTER, THROTTLESHUTTER, THROTTLE
-
301399-960 TUBE, IDLETUBE, IDLE
-
301399-1714 TUBE, IDLETUBE, IDLE
-
--10-23030 SCREW, PLUG-IDLE TUBESCREW, PLUG-IDLE TUBE
-
3127-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
3210-20870 SCREW, PLUG-BODY CHANNELSCREW, PLUG-BODY CHANNEL
-
3210-28405 SCREW, PLUG-BODY CHANNELSCREW, PLUG-BODY CHANNEL
-
3210-28845 SCREW, PLUG-BODY CHANNELSCREW, PLUG-BODY CHANNEL
-
3319-20011 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
3410-28405 SCREW, PLUG-MAIN FUEL JET CHANNELSCREW, PLUG-MAIN FUEL JET CHANNEL
-
3527-28406 GASKET, BODY CHANNEL PLUG SCREWGASKET, BODY CHANNEL PLUG SCREW
-
--1399-1145 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1399-1717 GASKET AND PACKING SE (1 PER CARBURETOR)GASKET AND PACKING SE (1 PER CARBURETOR)
-
--1399-1146 REPAIR PARTS KITREPAIR PARTS KIT
-
--1399-1624 REPAIR PARTS KIT ( 1 PER CARBURETOR)REPAIR PARTS KIT ( 1 PER CARBURETOR)
-
--1399-1718 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3627-20183 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-24652 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
--24823A1 KNOB ASSEMBLY, MAIN ADJUSTMENT SCREWKNOB ASSEMBLY, MAIN ADJUSTMENT SCREW
-
--10-22928 SCREW, KNOB FASTENINGSCREW, KNOB FASTENING
