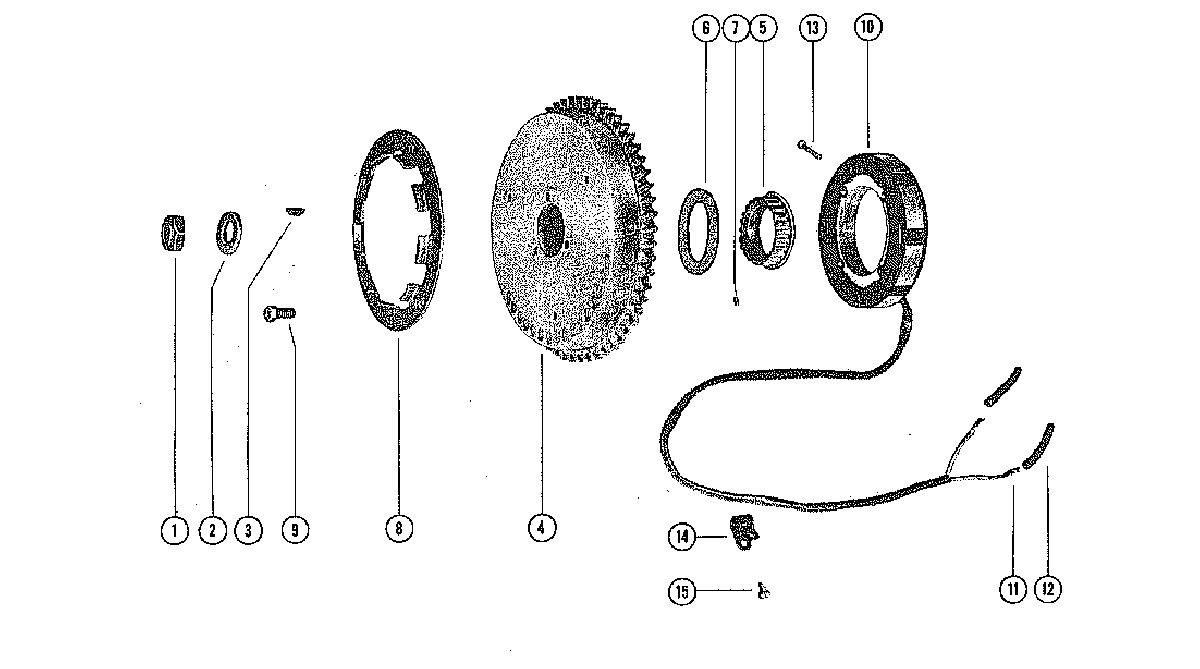

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 300 350 1271884 THRU 1448139
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-26617 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
320455A2 KEY, FLYWHEELKEY, FLYWHEEL
-
4223-2402A7 FLYWHEEL ASSEMBLY (LUG HEIGHT 15/32") SEE NOTE #1 BELOWFLYWHEEL ASSEMBLY (LUG HEIGHT 15/32") SEE NOTE #1 BELOW
-
4223-2402A7 FLYWHEEL ASSEMBLY (LUG HEIGHT 11/32") SEE NOTE #1 BELOWFLYWHEEL ASSEMBLY (LUG HEIGHT 11/32") SEE NOTE #1 BELOW
-
4211-1414A4 FLYWHEEL ASSEMBLY (WITH SPACERS) SEE NOTE #1 BELOWFLYWHEEL ASSEMBLY (WITH SPACERS) SEE NOTE #1 BELOW
-
4211-1414A2 FLYWHEEL ASSEMBLY (WITHOUT SPACERS) SEE NOTE #1 BELOWFLYWHEEL ASSEMBLY (WITHOUT SPACERS) SEE NOTE #1 BELOW
-
4215-3289A1 FLYWHEEL ASSEMBLY (WITHOUT SPACERS) SEE NOTE #1 BELOWFLYWHEEL ASSEMBLY (WITHOUT SPACERS) SEE NOTE #1 BELOW
-
522823 PULLEY, FLYWHEEL SEE NOTE #2 BELOWPULLEY, FLYWHEEL SEE NOTE #2 BELOW
-
612-25293 WASHER, PULLEY TO FLYWHEEL SEE NOTE #2 BELOWWASHER, PULLEY TO FLYWHEEL SEE NOTE #2 BELOW
-
-29788 FLANGE, FLYWHEEL PULLEY SEE NOTE #2 BELOWFLANGE, FLYWHEEL PULLEY SEE NOTE #2 BELOW
-
-30306 PULLEY, FLYWHEEL SEE NOTE #2 BELOWPULLEY, FLYWHEEL SEE NOTE #2 BELOW
-
-29787 HUB, FLANGE-FLYWHEEL PULLEY SEE NOTE #2 BELOWHUB, FLANGE-FLYWHEEL PULLEY SEE NOTE #2 BELOW
-
717-26618 DOWEL PIN, FLYWHEEL PULLEYDOWEL PIN, FLYWHEEL PULLEY
-
-12-26907 WASHER, RATCHET TO FLYWHEEL (1/8" SPACER)WASHER, RATCHET TO FLYWHEEL (1/8" SPACER)
-
850-25263 RATCHET, FLYWHEELRATCHET, FLYWHEEL
-
910-29238 CSREW, RATCHET TO FLYWHEELCSREW, RATCHET TO FLYWHEEL
-
10398-1455 STATOR, ALTERNATOR-FLYWHEELSTATOR, ALTERNATOR-FLYWHEEL
-
1122647 DISCONNECT, KNIFE SPLICE-STATOR LEAD WIREDISCONNECT, KNIFE SPLICE-STATOR LEAD WIRE
-
1232-61115 SLEEVE, RUBBER-STATOR LEAD WIRESLEEVE, RUBBER-STATOR LEAD WIRE
-
1310-68918 SCREW, STATOR TO UPPER END CAPSCREW, STATOR TO UPPER END CAP
-
1454-24836 CLIP, STATOR LEAD TO CRANKCASE FLANGECLIP, STATOR LEAD TO CRANKCASE FLANGE
-
1510-25255 SCREW, STATOR LEAD CLIP FASTENINGSCREW, STATOR LEAD CLIP FASTENING
-
1510-8M0113176 SCREW, STATOR LEAD CLIP FASTENINGSCREW, STATOR LEAD CLIP FASTENING
