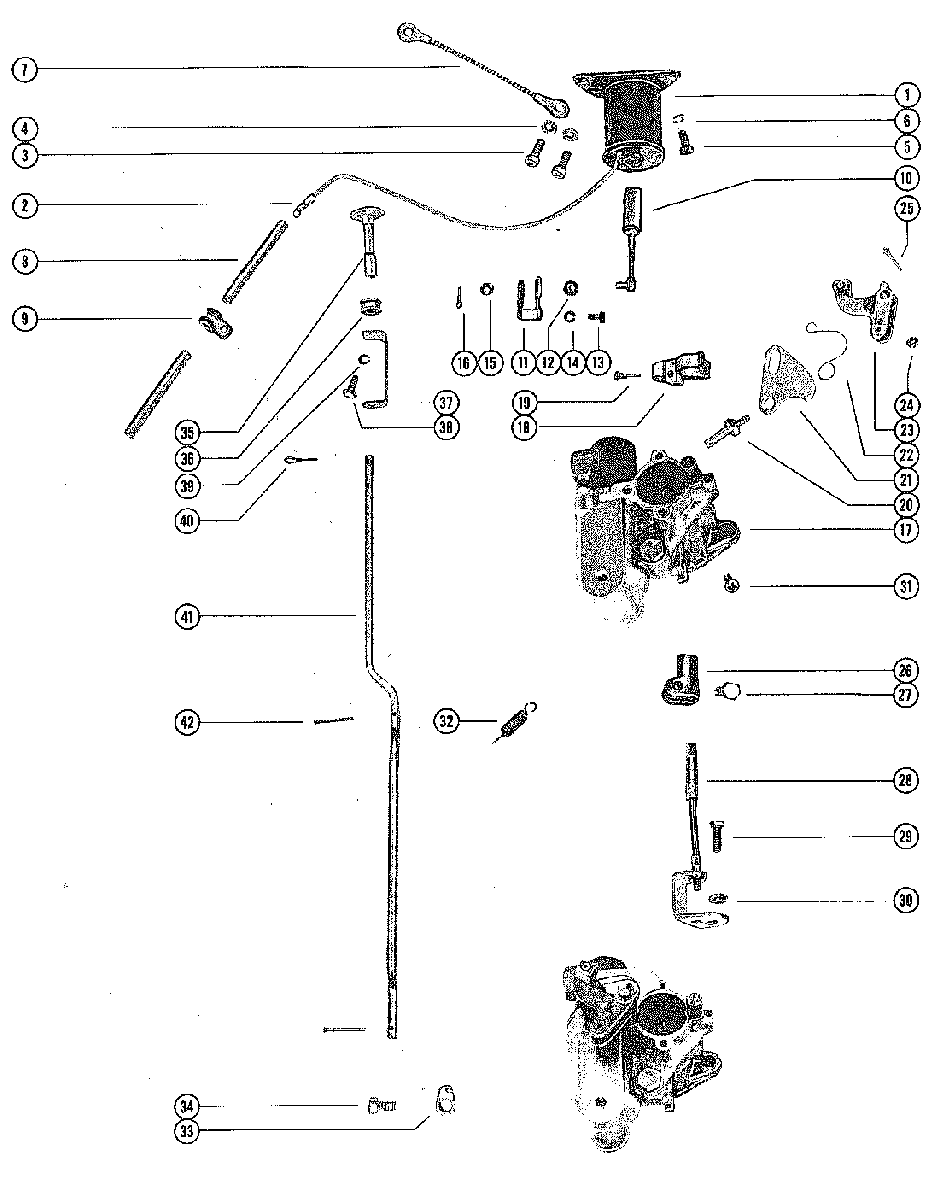

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 300 350 1271884 THRU 1448139
-
№АртикулНазвание
-
128936 CHOKE SOLENOID, TOP COWLCHOKE SOLENOID, TOP COWL
-
222647 DISCONNECT, KNIFE SPLICE - CHOKE SOLENOIDDISCONNECT, KNIFE SPLICE - CHOKE SOLENOID
-
310-20540 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
413-26992 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
510-24773 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
613-26991 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
726716A1 GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTORGROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR
-
832-61115 SLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRESLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRE
-
954-26643 CLAMP, CHOKE WIRE TO STARTER SOLENOIDCLAMP, CHOKE WIRE TO STARTER SOLENOID
-
954-24836 CLAMP, CHOKE WIRE TO STARTER SOLENOIDCLAMP, CHOKE WIRE TO STARTER SOLENOID
-
1027031A1 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
1127126 ADAPTOR PLATE, CHOKE PLUNGERADAPTOR PLATE, CHOKE PLUNGER
-
1225-26633 GROMMET, ADAPTOR PLATEGROMMET, ADAPTOR PLATE
-
1310-21281 SCREW, ADAPTOR PLATE TO CHOKE ROD BRACKETSCREW, ADAPTOR PLATE TO CHOKE ROD BRACKET
-
1413-26994 LOCKWASHER, ADAPTOR PLATE FASTENING SCREWLOCKWASHER, ADAPTOR PLATE FASTENING SCREW
-
1512-26014 WASHER, CHOKE SOLENOID LINKWASHER, CHOKE SOLENOID LINK
-
1618-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENINGCOTTER PIN, CHOKE SOLENOID LINK FASTENING
-
171326-1119 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
171326-1604 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 00000000-01324410CARBURETOR ASSEMBLY, COMPLETE
SERIAL 00000000-01324410 -
171334-1701 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 01324411-09999999CARBURETOR ASSEMBLY, COMPLETE
SERIAL 01324411-09999999 -
1829443 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
SERIAL 00000000-01324410CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
SERIAL 00000000-01324410 -
1827917 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
SERIAL 01324411-09999999CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
SERIAL 01324411-09999999 -
191395-6027 SCREW, SET - CLUSTER TO THROTTLE LEVERSCREW, SET - CLUSTER TO THROTTLE LEVER
-
2010-20176 SCREW, CHOKE LEVER PIVOT PINSCREW, CHOKE LEVER PIVOT PIN
-
2120173 SHUTTER, CHOKE
SERIAL 00000000-01324410SHUTTER, CHOKE
SERIAL 00000000-01324410 -
2130014 SHUTTER, CHOKE
SERIAL 01324411-09999999SHUTTER, CHOKE
SERIAL 01324411-09999999 -
2224-26067 SPRING, CHOKE SHUTTERSPRING, CHOKE SHUTTER
-
2325881A1 CHOKE LEVER ASSEMBLYCHOKE LEVER ASSEMBLY
-
2325881A1 CHOKE LEVER ASSEMBLYCHOKE LEVER ASSEMBLY
-
2326645A1 CHOKE LEVER ASSEMBLY (UPPER CARBURETOR)CHOKE LEVER ASSEMBLY (UPPER CARBURETOR)
-
2423-26888 BUSHING, CHOKE LEVERBUSHING, CHOKE LEVER
-
2518-210711 COTTPER PIN, CHOKE LEVER RETAININGCOTTPER PIN, CHOKE LEVER RETAINING
-
2627870 CLAMP, THROTTLE PICKUP BRACKETCLAMP, THROTTLE PICKUP BRACKET
-
--12-30164 WASHER, CLAMP TO THROTTLE PICKUP BRACKET SCREWWASHER, CLAMP TO THROTTLE PICKUP BRACKET SCREW
-
2710-69022 SCREW, CLAMP TO THROTTLE PICKUP BRACKETSCREW, CLAMP TO THROTTLE PICKUP BRACKET
-
2820185A1 BRACKET, THROTTLE PICKUP
SERIAL 00000000-01324410BRACKET, THROTTLE PICKUP
SERIAL 00000000-01324410 -
2828007A3 BRACKET, THROTTLE PICKUP
SERIAL 01324411-09999999BRACKET, THROTTLE PICKUP
SERIAL 01324411-09999999 -
2910-20191 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
2910-29239 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
--13-26995 LOCKWASHER, THROTTLE BRACKET SCREWLOCKWASHER, THROTTLE BRACKET SCREW
-
3012-20192 WASHER, THROTTLE BRACKET SCREWWASHER, THROTTLE BRACKET SCREW
-
3110-20650 SCREW, CHOKE ROD SPRING MOUNTINGSCREW, CHOKE ROD SPRING MOUNTING
-
--12-20192 WASHER, CHOKE ROD SPRING SCREWWASHER, CHOKE ROD SPRING SCREW
-
3224-20649 SPRING, CHOKE ROD POSITIONINGSPRING, CHOKE ROD POSITIONING
-
3224-26068 SPRING, CHOKE ROD TO RETAINERSPRING, CHOKE ROD TO RETAINER
-
3327711 RETAINER, CHOKE ROD SPRINGRETAINER, CHOKE ROD SPRING
-
3410-28713 SCREW, RETAINER TO LOWER CARBURETORSCREW, RETAINER TO LOWER CARBURETOR
-
3520663 KNOB, CHOKE RODKNOB, CHOKE ROD
-
3590242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
3625-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
3722462 "U" LINK, CHOKE KNOB TO CHOKE ROD"U" LINK, CHOKE KNOB TO CHOKE ROD
-
3810-69022 SCREW, "U" LINK TO CHOKE KNOBSCREW, "U" LINK TO CHOKE KNOB
-
3913-26996 LOCKWASHER, "U" LINK FASTENING SCREWLOCKWASHER, "U" LINK FASTENING SCREW
-
4018-210711 COTTPER PIN, CHOKE LEVER AND ROD FASTENINGCOTTPER PIN, CHOKE LEVER AND ROD FASTENING
-
4128971 CHOKE ROD ( NOT AS SHOWN)CHOKE ROD ( NOT AS SHOWN)
-
4128978 CHOKE RODCHOKE ROD
-
4217-25391 RIVET, CHOKE ROD TO CHOKE LEVERRIVET, CHOKE ROD TO CHOKE LEVER
