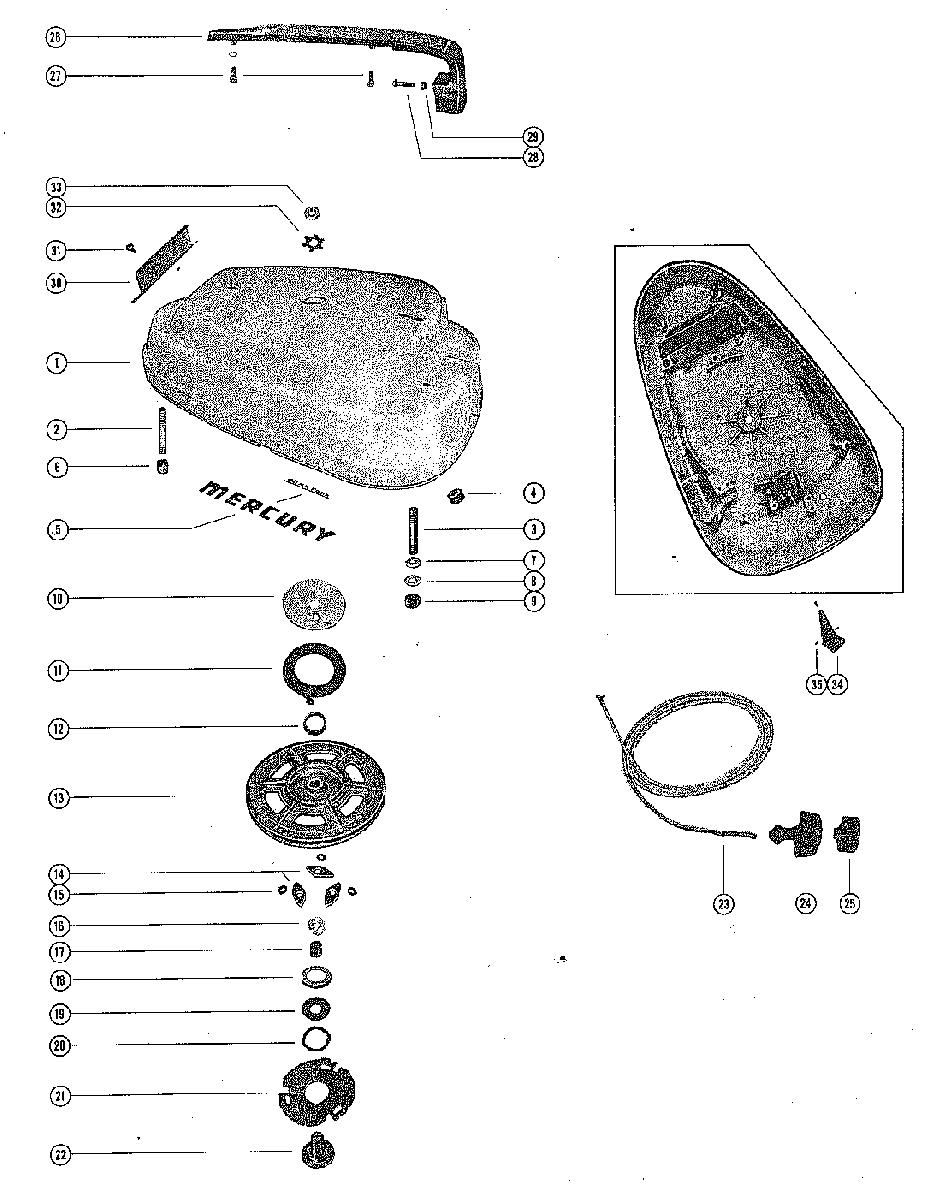

TOP COWL AND STARTER ASSEMBLY для Mercury - 300 350 1271884 THRU 1448139
-
№АртикулНазвание
-
1177-1600A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
216-20500 STUD, REAR - TOP COWL TO COVERSTUD, REAR - TOP COWL TO COVER
-
316-20353 STUD, FRONT-TOP COWL TO CRANKCASESTUD, FRONT-TOP COWL TO CRANKCASE
-
425-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
537-28988A1 DECAL SET, TOP COWL (COLORED ENGINES) - NOT AS SHOWNDECAL SET, TOP COWL (COLORED ENGINES) - NOT AS SHOWN
-
537-46023A1 DECAL SET, TOP COWL (WHITE ENGINES) - NOT AS SHOWNDECAL SET, TOP COWL (WHITE ENGINES) - NOT AS SHOWN
-
537-46023A1 DECAL SET, TOP COWL (NOT AS SHOWN)DECAL SET, TOP COWL (NOT AS SHOWN)
-
537-46023A1 DECAL SET, TOP COWLDECAL SET, TOP COWL
-
623-20326 SPACER, TOP COWL STUDSPACER, TOP COWL STUD
-
712-69057 WASHER, TOP COWL STUD (3/4" O.D.)WASHER, TOP COWL STUD (3/4" O.D.)
-
812-20028 WASHER, TOP COWL STUD (1/16" THICK)WASHER, TOP COWL STUD (1/16" THICK)
-
812-20583 WASHER, TOP COWL STUD (1/32" THICK)WASHER, TOP COWL STUD (1/32" THICK)
-
911-8267089 NUT, TOP COWL FASTENINGNUT, TOP COWL FASTENING
-
1020155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1124-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1223-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1350-28908 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
1350-30994 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
1420162 PAWL, STARTERPAWL, STARTER
-
1430596 PAWL, STARTERPAWL, STARTER
-
1513-29402 WASHER, WAVE-STARTER PAWLWASHER, WAVE-STARTER PAWL
-
1513-36206 WASHER, WAVE-STARTER PAWLWASHER, WAVE-STARTER PAWL
-
1623-28919 BUSHING, NYLON-SHEAVE SHAFT SPACERBUSHING, NYLON-SHEAVE SHAFT SPACER
-
1745477A1 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
1826179 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
1912-26180 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
2013-20160 WASHER, WAVE-RETAINER TENSIONWASHER, WAVE-RETAINER TENSION
-
2120164 PLATE, RETAINER STARTER PAWLPLATE, RETAINER STARTER PAWL
-
2130595 PLATE, RETAINER STARTER PAWLPLATE, RETAINER STARTER PAWL
-
2245477A1 SHAFT, SHEAVESHAFT, SHEAVE
-
2350-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
2428747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
2579470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
2628944 HANDLE, TOP COWLHANDLE, TOP COWL
-
2710-29199 SCREW, HANDLE TO TOP COWLSCREW, HANDLE TO TOP COWL
-
2710-28667 SCREW, HANDLE TO TOP COWLSCREW, HANDLE TO TOP COWL
-
--13-26992 LOCKWASHER, HANDLE FASTENING SCREWLOCKWASHER, HANDLE FASTENING SCREW
-
2810-56500 SCREW, HANDLE TO TOP COWLSCREW, HANDLE TO TOP COWL
-
2911-8267089 NUT, HANDLE FASTENING SCREWNUT, HANDLE FASTENING SCREW
-
3028967 SCREEN, VENT-TOP COWLSCREEN, VENT-TOP COWL
-
--11-28968 NUT, SPEED-VENT SCREEN TO TOP COWL - SEE NOTE #1 BELOWNUT, SPEED-VENT SCREEN TO TOP COWL - SEE NOTE #1 BELOW
-
3110-26668 SCREW, VENT SCREEN TO TOP COWL - SEE NOTE #1 BELOWSCREW, VENT SCREEN TO TOP COWL - SEE NOTE #1 BELOW
-
3214-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3311-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3430045 PLATE, ROPE GUIDE (SEE NOTE #2 BELOW)PLATE, ROPE GUIDE (SEE NOTE #2 BELOW)
-
3510-28642 SCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWLSCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL
