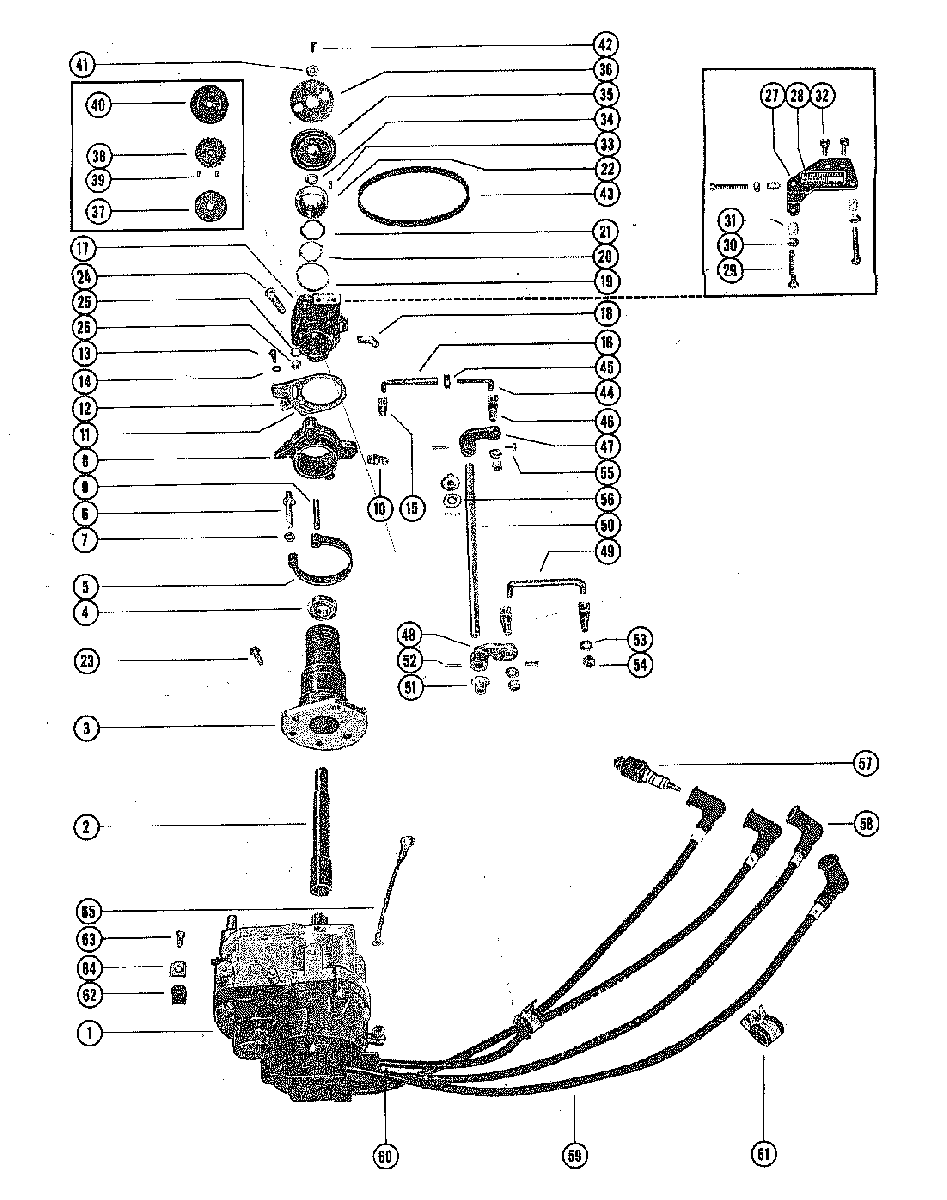

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 300 350 1271884 THRU 1448139

№

Артикул

Название
1

394-2271A2 MAGNETO ASSEMBLY, COMPLETE

MAGNETO ASSEMBLY, COMPLETE

0 ₽
2

45-27951 SHAFT, MAGNETO DRIVE

SHAFT, MAGNETO DRIVE

0 ₽
-

29321A7 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
SERIAL 00000000-01231089

MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
SERIAL 00000000-01231089

0 ₽
-

29321A5 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
SERIAL 01231090-09999999

MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
SERIAL 01231090-09999999

0 ₽
-

29321A7 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE

MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE

0 ₽
3

39560A1 MAGNETO PILOT ASSEMBLY
SERIAL 00000000-01231089

MAGNETO PILOT ASSEMBLY
SERIAL 00000000-01231089

0 ₽
3

39560A1 MAGNETO PILOT ASSEMBLY
SERIAL 01231090-09999999

MAGNETO PILOT ASSEMBLY
SERIAL 01231090-09999999

0 ₽
4

30-20066 BEARING, BALL-MAGNETO PILOT

BEARING, BALL-MAGNETO PILOT

6 640 ₽
5

24-27944 SPRING, HORSESHOE-MAGNETO PILOT

SPRING, HORSESHOE-MAGNETO PILOT

0 ₽
6

17-27962 PIN, ANCHOR-AHORSESHOE SPRING TO PILOT

PIN, ANCHOR-AHORSESHOE SPRING TO PILOT

0 ₽
7

12-29245 WASHER, HORSESHOE SPRING TO ANCHOR PIN

WASHER, HORSESHOE SPRING TO ANCHOR PIN

120 ₽
8

27946A1 ECONOMIZER COLLAR AND PIN ASSEMBLY

ECONOMIZER COLLAR AND PIN ASSEMBLY

0 ₽
9

17-27961 PIN, ECONOMIZER COLLAR-SPRING RETAINER

PIN, ECONOMIZER COLLAR-SPRING RETAINER

0 ₽
10

22-25094 FITTING, GREASE-ECONOMIZER COLLAR

FITTING, GREASE-ECONOMIZER COLLAR

0 ₽
11

38230A1 THROTTLE ACTUATOR ASSEMBLY
SERIAL 00000000-01231089

THROTTLE ACTUATOR ASSEMBLY
SERIAL 00000000-01231089

0 ₽
11

38230A1 THROTTLE ACTUATOR ASSEMBLY
SERIAL 01231090-09999999

THROTTLE ACTUATOR ASSEMBLY
SERIAL 01231090-09999999

0 ₽
11

38230A1 THROTTLE ACTUATOR ASSEMBLY

THROTTLE ACTUATOR ASSEMBLY

0 ₽
12

23-26602 BUSHING, NYLON-THROTTLE ACTUATOR

BUSHING, NYLON-THROTTLE ACTUATOR

0 ₽
12

23-26602 BUSHING, NYLON-THROTTLE ACTUATOR

BUSHING, NYLON-THROTTLE ACTUATOR

0 ₽
13

10-20665 SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR

SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR

0 ₽
14

12-847883 WASHER, THROTTLE ACTUATOR SCREW

WASHER, THROTTLE ACTUATOR SCREW

330 ₽
15

27947 SWIVEL, LINKAGE-ECONOMIZER COLLAR

SWIVEL, LINKAGE-ECONOMIZER COLLAR

0 ₽
16

25996A1 SWIVEL AND LINK ROD ASSEMBLY

SWIVEL AND LINK ROD ASSEMBLY

0 ₽
17

66856A1 ADAPTOR, MAGNETO

ADAPTOR, MAGNETO

0 ₽
18

22-25094 FITTING, GREASE-MAGNETO ADAPTOR

FITTING, GREASE-MAGNETO ADAPTOR

0 ₽
19

12-27939 WASHER, MAGNETO PILOT

WASHER, MAGNETO PILOT

0 ₽
21

13-27959 WASHER, WAVE-MAGNETO BALL BEARING TENSION

WASHER, WAVE-MAGNETO BALL BEARING TENSION

0 ₽
22

27955 CAP, MAGNETO ADAPTOR AND PILOT FASTENING

CAP, MAGNETO ADAPTOR AND PILOT FASTENING

0 ₽
23

10-69054 SCREW, ADAPTOR AND PILOT TO MANGETO

SCREW, ADAPTOR AND PILOT TO MANGETO

0 ₽
23

10-30110 SCREW, ADAPTOR AND PILOT TO MANGETO

SCREW, ADAPTOR AND PILOT TO MANGETO

0 ₽
--

13-26992 LOCKWASHER, ADAPTOR AND PILOT FASTENING SCREW

LOCKWASHER, ADAPTOR AND PILOT FASTENING SCREW

70 ₽
24

10-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE

SCREW, ADAPTOR AND PILOT TO CRANKCASE

0 ₽
25

12-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW

WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW

270 ₽
26

11-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW

NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW

180 ₽
27

27943 PLATE, THROTTLE STOP
SERIAL 00000000-01231089

PLATE, THROTTLE STOP
SERIAL 00000000-01231089

0 ₽
27

53458 PLATE, THROTTLE STOP
SERIAL 01231090-09999999

PLATE, THROTTLE STOP
SERIAL 01231090-09999999

0 ₽
28

37-29315 DECAL, THROTTLE STOP PLATE
SERIAL 01231090-09999999

DECAL, THROTTLE STOP PLATE
SERIAL 01231090-09999999

0 ₽
29

10-24933 SCREW, THROTTLE STOP ADJUSTING
2 EACH REQUIRED WITH A-27943 PLATE

SCREW, THROTTLE STOP ADJUSTING
2 EACH REQUIRED WITH A-27943 PLATE

0 ₽
30

11-20088 NUT, THROTTLE STOP ADJUSTING SCREW
2 EACH REQUIRED WITH A-27943 PLATE

NUT, THROTTLE STOP ADJUSTING SCREW
2 EACH REQUIRED WITH A-27943 PLATE

0 ₽
31

26852 CAP, NYLON-ADJUSTING SCREW
2 EACH REQUIRED WITH A-27943 PLATE

CAP, NYLON-ADJUSTING SCREW
2 EACH REQUIRED WITH A-27943 PLATE

320 ₽
--

10-28635 SCREW, THROTTLE STOP PLATE TO ADAPTOR

SCREW, THROTTLE STOP PLATE TO ADAPTOR

140 ₽
--

13-26992 LOCKWASHER, THROTTLE STOP PLATE FASTENING SCREW

LOCKWASHER, THROTTLE STOP PLATE FASTENING SCREW

70 ₽
32

10-69035 SCREW, THROTTLE STOP PLATE TO ADAPTOR

SCREW, THROTTLE STOP PLATE TO ADAPTOR

140 ₽
33

28-28657 KEY, MAGNETO DRIVING

KEY, MAGNETO DRIVING

0 ₽
34

23-27957 SPACER, PULLEY TO MAGNETO ADAPTOR CAP - OLD STYLE

SPACER, PULLEY TO MAGNETO ADAPTOR CAP - OLD STYLE

0 ₽
35

29783A2 PULLEY, DRIVEN - OLD STYLE

PULLEY, DRIVEN - OLD STYLE

0 ₽
36

20136 FLANGE, DRIVEN PULLEY - OLD STYLE

FLANGE, DRIVEN PULLEY - OLD STYLE

0 ₽
37

29784 HUB, DRIVEN PULLEY - NEW STYLE-SEE NOTE BELOW

HUB, DRIVEN PULLEY - NEW STYLE-SEE NOTE BELOW

0 ₽
38

29783A1 DRIVEN PULLEY ASSEMBLY - NEW STYLE-SEE NOTE BELOW

DRIVEN PULLEY ASSEMBLY - NEW STYLE-SEE NOTE BELOW

0 ₽
39

17-24873 ROLL PIN, FLANGE LOCATING - NEW STYLE-SEE NOTE BELOW

ROLL PIN, FLANGE LOCATING - NEW STYLE-SEE NOTE BELOW

140 ₽
40

29785 FLANGE, DRIVEN PULLEY - NEW STYLE-SEE NOTE BELOW

FLANGE, DRIVEN PULLEY - NEW STYLE-SEE NOTE BELOW

0 ₽
41

12-20138 WASHER, PULLEY CLAMPING SCREW

WASHER, PULLEY CLAMPING SCREW

0 ₽
--

13-26996 LOCKWASHER, PULLEY CLAMPING SCREW

LOCKWASHER, PULLEY CLAMPING SCREW

60 ₽
42

10-32228 SCREW, PULLEY CLAMPING

SCREW, PULLEY CLAMPING

140 ₽
43

20140 BELT, TIMING

BELT, TIMING

4 020 ₽
--

27942A1 MAGNETO STOP ASSEMBLY
SERIAL 00000000-01231089

MAGNETO STOP ASSEMBLY
SERIAL 00000000-01231089

0 ₽
--

26597 BUMPER, RUBBER-MAGNETO STOP
SERIAL 00000000-01231089

BUMPER, RUBBER-MAGNETO STOP
SERIAL 00000000-01231089

0 ₽
--

10-28635 SCREW, MAGNETO STOP TO PILOT
SERIAL 00000000-01231089

SCREW, MAGNETO STOP TO PILOT
SERIAL 00000000-01231089

140 ₽
--

12-20533 WASHER, MAGNETO STOP FASTENING SCREW
SERIAL 00000000-01231089

WASHER, MAGNETO STOP FASTENING SCREW
SERIAL 00000000-01231089

120 ₽
44

27949 ROD, LIN-UPPER

ROD, LIN-UPPER

0 ₽
45

11-25168 NUT, UPPER LINK ROD ADJUSTING

NUT, UPPER LINK ROD ADJUSTING

0 ₽
46

27948 SWIVEL, UPPER AND LOWER LIND RODS

SWIVEL, UPPER AND LOWER LIND RODS

720 ₽
47

28061 LEVER, LINKAGE-UPPER

LEVER, LINKAGE-UPPER

0 ₽
48

27941 LEVER, LINKAGE-LOWER

LEVER, LINKAGE-LOWER

0 ₽
49

27950 ROD, LIN-LOWER

ROD, LIN-LOWER

0 ₽
50

27940 SHAFT, VERTICAL

SHAFT, VERTICAL

0 ₽
51

23-22981 BUSHING, NYLON-VERTICAL SHAFT

BUSHING, NYLON-VERTICAL SHAFT

0 ₽
52

17-25870 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS

ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS

330 ₽
53

12-29245 WASHER, UPPER AND LOWER SWIVEL

WASHER, UPPER AND LOWER SWIVEL

120 ₽
54

11-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET

NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET

100 ₽
55

10-25781 SCREW, SET-LINKAGE LEVER

SCREW, SET-LINKAGE LEVER

0 ₽
56

12-25866 WASHER, VERTICAL SHAFT-CENTER

WASHER, VERTICAL SHAFT-CENTER

0 ₽
57

33-813469 SPARK PLUG

SPARK PLUG

440 ₽
58

85-63709A1 PROTECTOR, SPARK PLUG

PROTECTOR, SPARK PLUG

550 ₽
59

84-821945A46 CABLE, HIGH TENSION LEAD-SPARK PLUG

CABLE, HIGH TENSION LEAD-SPARK PLUG

4 780 ₽
60

25-25429 "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER

"O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER

0 ₽
61

54-29425 CLIP, HIGH TENSION LEAD CABLE FASTENING

CLIP, HIGH TENSION LEAD CABLE FASTENING

0 ₽
61

54-20534 CLIP, HIGH TENSION LEAD CABLE FASTENING

CLIP, HIGH TENSION LEAD CABLE FASTENING

0 ₽
62

54-25231 CLIP, MERCURY SWITCH AND HARNESS LEADS

CLIP, MERCURY SWITCH AND HARNESS LEADS

0 ₽
63

10-20401 SCREW, LEAD CLIP TO MAGNETO

SCREW, LEAD CLIP TO MAGNETO

0 ₽
64

8M0084613 "D" WASHER, CLIP FASTENING SCREW

"D" WASHER, CLIP FASTENING SCREW

100 ₽
65

394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE

GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE

0 ₽
