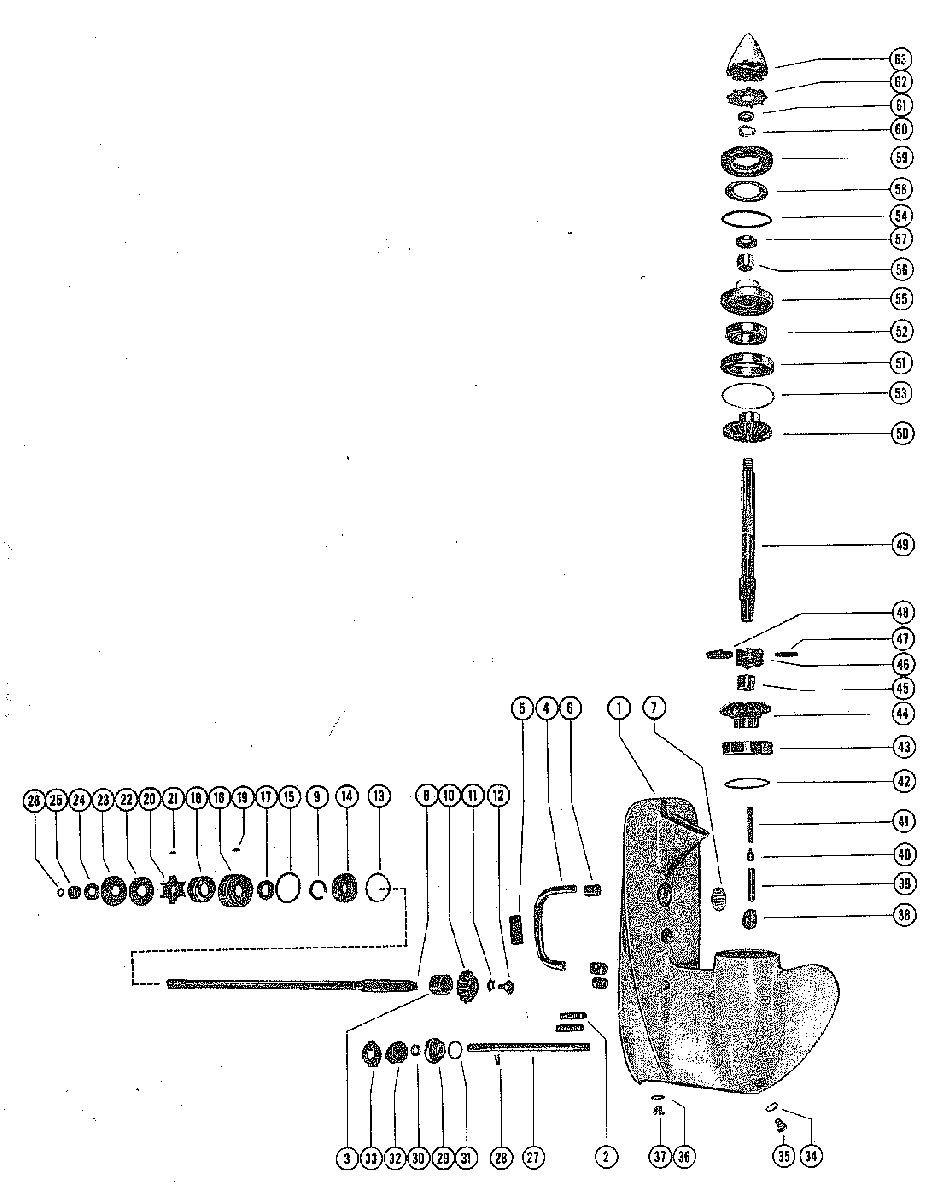

GEAR HOUSING ASSEMBLY (PAGE 2) для Mercury - 300 350 1271884 THRU 1448139
-
№АртикулНазвание
-
3252918 CAM, LOWER REVERSE LOCKINGCAM, LOWER REVERSE LOCKING
-
3352919 CAM, UPPER REVERSE LOCKINGCAM, UPPER REVERSE LOCKING
-
3352919 CAM UPPER REVERSE LOCKINGCAM UPPER REVERSE LOCKING
-
3412-191833 WASHER, GREASE FILLER AND FLUSHING HOLE SCREWWASHER, GREASE FILLER AND FLUSHING HOLE SCREW
-
3510-79953Q04 SCREW, GREASE FILLER AND FLUSHING HOLESCREW, GREASE FILLER AND FLUSHING HOLE
-
3619643 WASHER, GEAR HOUSING VENT SCREWWASHER, GEAR HOUSING VENT SCREW
-
3710-28653 SCREW, GEAR HOUSING VENTSCREW, GEAR HOUSING VENT
-
38760394 CAM, SHIFTCAM, SHIFT
-
38760394 CAM, SHIFTCAM, SHIFT
-
3920930 FOLLOWER, CAMFOLLOWER, CAM
-
4020843 SLIDE, CROSS PINSLIDE, CROSS PIN
-
4124-20254 SPRING, CAM FOLLOWER PINSPRING, CAM FOLLOWER PIN
-
4215-20928A1 SHIM, BALL BEARING TO GEAR HOUSINGSHIM, BALL BEARING TO GEAR HOUSING
-
4330-20840 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
4443-20975A5 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
4531-20249 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
4652-32189 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
4717-20841 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
4853-20842 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
4944-25254 SHAFT, PROPELLERSHAFT, PROPELLER
-
5043-20975A5 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
5120864 RING, ADAPTOR - BALL BEARINGRING, ADAPTOR - BALL BEARING
-
5230-20839T BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
5315-20927A1 SHIM, ADAPTOR RING TO GEAR HOUSINGSHIM, ADAPTOR RING TO GEAR HOUSING
-
5425-20863 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
5520862A1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5631-20249 BEARING, ROLLERBEARING, ROLLER
-
5726-90562 OIL SEALOIL SEAL
-
5812-22970 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
5920865 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6012-25251 WASHER, BACKING (1/8")WASHER, BACKING (1/8")
-
--48-29296A2 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM)PROPELLER ASSEMBLY (2 BLADE - ALUMINUM)
-
6112-25252 WASHER, BACING (1/32")WASHER, BACING (1/32")
-
6214-25250 TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
6311-29825 NUT, PROPELLER (ALUMINUM)NUT, PROPELLER (ALUMINUM)
-
6311-29825 NUT, PROPELLER (NYLON)NUT, PROPELLER (NYLON)
