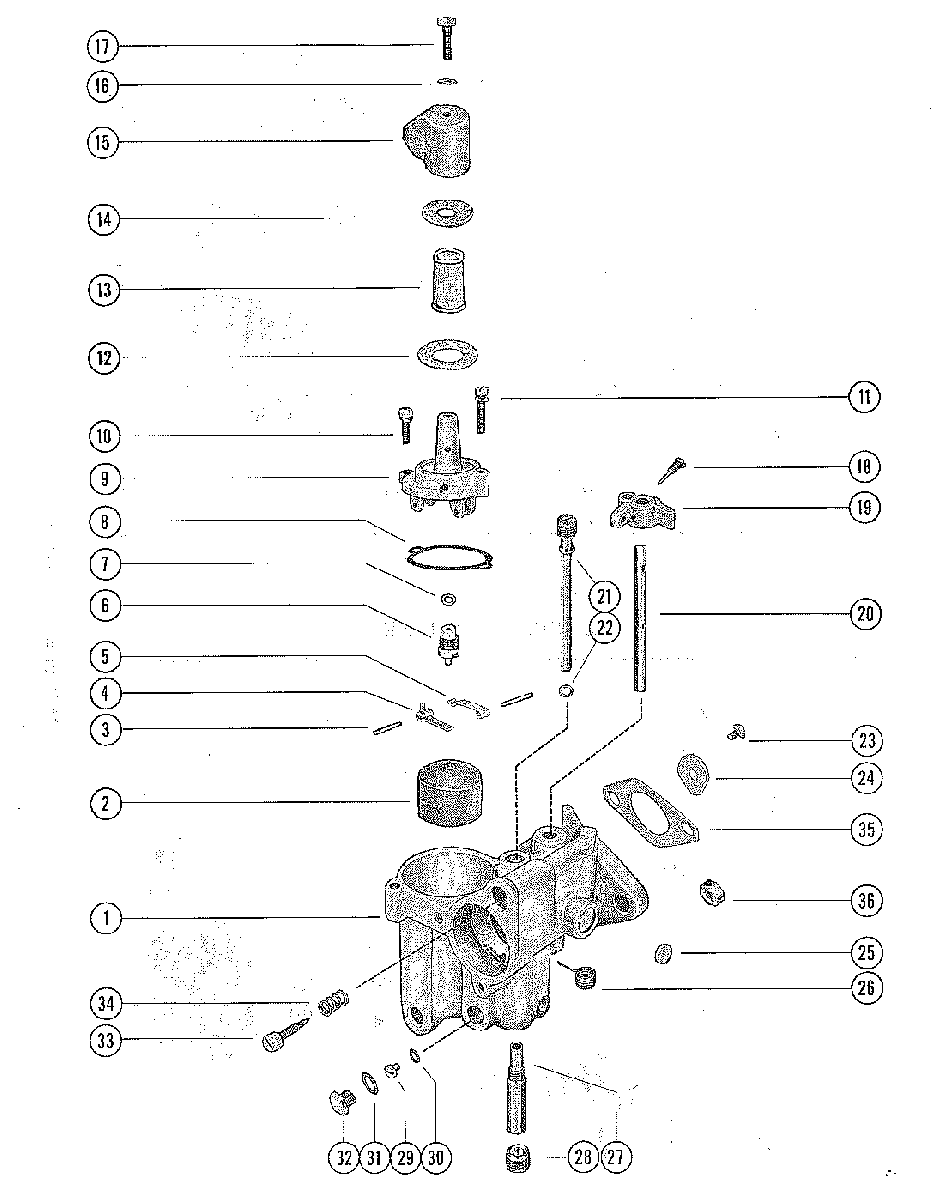

CARBURETOR ASSEMBLY для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
11335-2472 CARBURETOR ASSEMBLY, COMPLETE (KC-8A)CARBURETOR ASSEMBLY, COMPLETE (KC-8A)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
81399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1227-25851 GASLET, STRAINER COVER (LARGE)GASLET, STRAINER COVER (LARGE)
-
131399-3938 SCREEN, FILTERSCREEN, FILTER
-
1427-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
151399-2371 COVER, STRAINERCOVER, STRAINER
-
1627-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1710-25822 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
198146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
201399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
211399-2558 TUBE, IDLETUBE, IDLE
-
2227-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2310-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
241399-2014 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2519-32299 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
2624-26890 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
271399-2535 MAIN NOZZLEMAIN NOZZLE
-
2810-28846 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
291399-2011 JET, MAIN FUEL (.071)JET, MAIN FUEL (.071)
-
291399-1962 JET, MAIN FUEL (.069) - STANDARDJET, MAIN FUEL (.069) - STANDARD
-
291399-1467 JET, MAIN FUEL (.067)JET, MAIN FUEL (.067)
-
291399-1465 JET, MAIN FUEL (.065)JET, MAIN FUEL (.065)
-
3027-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
3127-28406 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
3210-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
331399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
3424-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
--1399-2015 GASKET AND PACKING SETGASKET AND PACKING SET
-
--1395-92621 REPAIR PARTS KITREPAIR PARTS KIT
-
3527-31402 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3611-29250 NUT, CARBURETOR MOUNTING STUDSNUT, CARBURETOR MOUNTING STUDS
