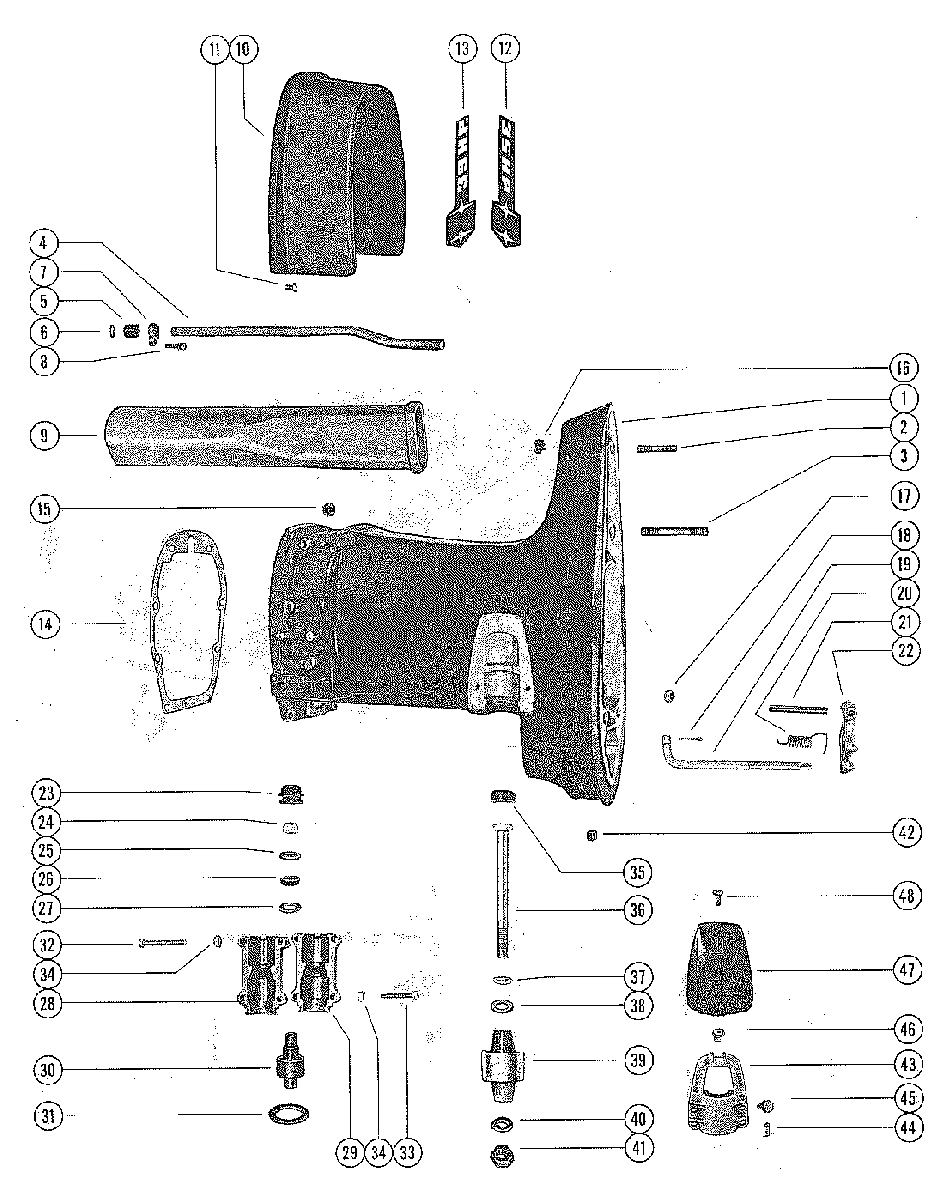

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
11554-2506A2 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
316-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
432-37727 TUBE, WATER INLETTUBE, WATER INLET
-
526-20232 SEAL, WATER INLET TUPE
SERIAL 00000000-01835753SEAL, WATER INLET TUPE
SERIAL 00000000-01835753 -
526-38452 SEAL, WATER INLET TUPE
SERIAL 01835754-09999999SEAL, WATER INLET TUPE
SERIAL 01835754-09999999 -
612-38453 WASHER, WATER TUBE SCREW
SERIAL 01835754-09999999WASHER, WATER TUBE SCREW
SERIAL 01835754-09999999 -
738500 RETAINER - WATER TUBE SEAL
SERIAL 01835754-09999999RETAINER - WATER TUBE SEAL
SERIAL 01835754-09999999 -
810-69069 SCREW, WATER TUBE TO BOTTOM COWL
SERIAL 01835754-09999999SCREW, WATER TUBE TO BOTTOM COWL
SERIAL 01835754-09999999 -
9695431 TUBE, EXHAUSTTUBE, EXHAUST
-
1038109 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
1110-37571 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
1237-37837 DECAL, TRIM COVER - STARBOARDDECAL, TRIM COVER - STARBOARD
-
1337-37836 DECAL, TRIM COVER - PORTDECAL, TRIM COVER - PORT
-
1427-385011 GASLET, DRIVE SHAFT HOUSING TO BOTTOM COWLGASLET, DRIVE SHAFT HOUSING TO BOTTOM COWL
-
1511-862902 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1619-32298 PLUG, PLASTIC - WATER PICK-UP SCREW HOLEPLUG, PLASTIC - WATER PICK-UP SCREW HOLE
-
1711-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
1818-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
1932102 ROD, PUS - REVERSE LOCKROD, PUS - REVERSE LOCK
-
2024-25122 SPRING, TENSION - PUSH RODSPRING, TENSION - PUSH ROD
-
2117-24887 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
2252920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2325305 CAP, RUBBER - UPPER MOUNT BOLT NUTCAP, RUBBER - UPPER MOUNT BOLT NUT
-
2411-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2512-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
2612-30521 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2712-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
2879680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2979680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3075301 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
3124929 PACKING, "U" CUP - UPPER MOUNT COVERSPACKING, "U" CUP - UPPER MOUNT COVERS
-
3210-37941 SCREW, UPPER MOUNT COVER - REAR (1 3/4")SCREW, UPPER MOUNT COVER - REAR (1 3/4")
-
3310-28772 SCREW, SUPPER MOUNT COVER - FRONT (1 1/2")SCREW, SUPPER MOUNT COVER - FRONT (1 1/2")
-
3411-35888 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3525067 BUMPER, RUPPER - LOWER MOUNT SCREWBUMPER, RUPPER - LOWER MOUNT SCREW
-
3610-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
3712-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3812-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
3975302T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
4012-30119 WASHER, LOWER MOUNT SCREW (1/8")WASHER, LOWER MOUNT SCREW (1/8")
-
4111-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
4222-390721 PLUG, GREASE - REVERSE LOCK HOLEPLUG, GREASE - REVERSE LOCK HOLE
-
4369592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4424-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4510-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
4611-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
4735474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
4810-29722 SCREW, COVER TO LOWER CLAMPSCREW, COVER TO LOWER CLAMP
