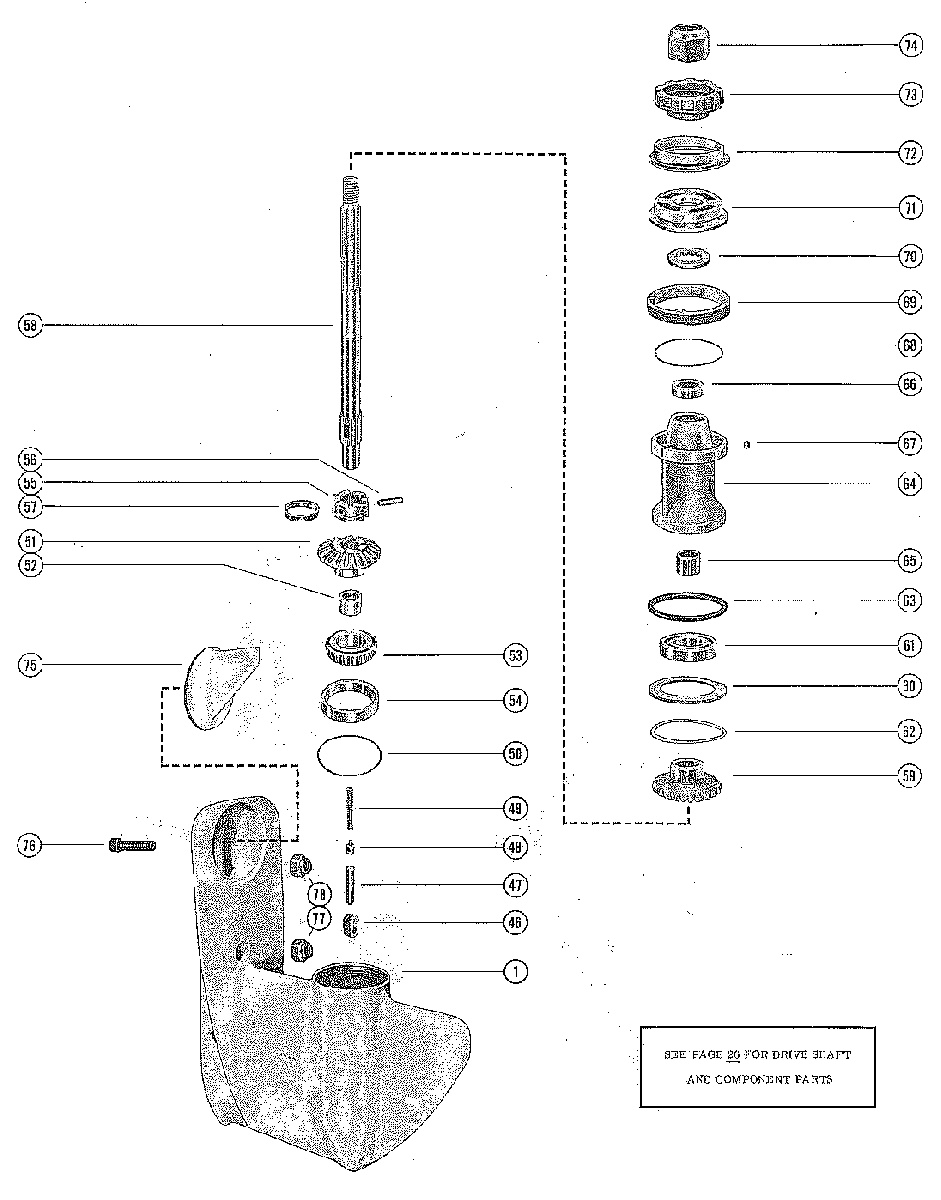

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
-1626-2470A6 GEAR HOUSING ASSEMLBY, COMPLETE (STANDARD) - SEE NOTE BELOWGEAR HOUSING ASSEMLBY, COMPLETE (STANDARD) - SEE NOTE BELOW
-
11626-2470A16 GEAR HOUSING ASSEMBLY(SEE PAGE 26 FOR PARTS BREAKDOWN)GEAR HOUSING ASSEMBLY(SEE PAGE 26 FOR PARTS BREAKDOWN)
-
46760394 CAM, SHIFTCAM, SHIFT
-
4720930 FOLLOWER, CAMFOLLOWER, CAM
-
4820843 SLIDE, CROSS PINSLIDE, CROSS PIN
-
4924-20254 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5015-31154A1 SHIM, BEARING CUP TO GEAR HOUSINGSHIM, BEARING CUP TO GEAR HOUSING
-
--43-33844A4 FORWARD GEAR ASSEMBLY, COMPLETEFORWARD GEAR ASSEMBLY, COMPLETE
-
5143-33844A4 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5231-20249 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5331-31215A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5431-31216 CUP, TAPERED ROLLER BEARINGCUP, TAPERED ROLLER BEARING
-
5552-32189 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5617-20841 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5753-20842 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5844-32000 SHAFT, PROPELLERSHAFT, PROPELLER
-
--43-33844A4 REVERSE GEAR ASSEMBLY, COMPLETEREVERSE GEAR ASSEMBLY, COMPLETE
-
5943-33844A4 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6012-32004 WASHER, TRUST - REVERSE GEARWASHER, TRUST - REVERSE GEAR
-
6130-20839T BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6215-20927A1 SHIM, THRUST WASHER TO GEAR HOUSINGSHIM, THRUST WASHER TO GEAR HOUSING
-
6325-31986 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6453014T1 BEARING CARRIER ASSEMBLY
SERIAL 00000000-01835753BEARING CARRIER ASSEMBLY
SERIAL 00000000-01835753 -
6531-20249 BEARING, ROLLER - BEARING CARRIER
SERIAL 00000000-01835753BEARING, ROLLER - BEARING CARRIER
SERIAL 00000000-01835753 -
6626-90562 OIL SEAL, BEARING CARRIER
SERIAL 00000000-01835753OIL SEAL, BEARING CARRIER
SERIAL 00000000-01835753 -
6453014T1 BEARING CARRIER ASSEMBLY
SERIAL 01835754-09999999BEARING CARRIER ASSEMBLY
SERIAL 01835754-09999999 -
6531-20249 BEARING, ROLLER - BEARING CARRIER
SERIAL 01835754-09999999BEARING, ROLLER - BEARING CARRIER
SERIAL 01835754-09999999 -
6626-90562 OIL SEAL, BEARING CARRIER
SERIAL 01835754-09999999OIL SEAL, BEARING CARRIER
SERIAL 01835754-09999999 -
6626-23517 OIL SEAL, BEARING CARRIER
SERIAL 01835754-09999999OIL SEAL, BEARING CARRIER
SERIAL 01835754-09999999 -
6728-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6812-31993 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6911-87763 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7012-25251 WASHER, BACKING - PROPELLER SHAFT (1/8)WASHER, BACKING - PROPELLER SHAFT (1/8)
-
7138859A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
7212-31992 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
7312-32007 WASHER< SPLINDER - PROPELLER SHAFTWASHER< SPLINDER - PROPELLER SHAFT
-
7411-82671120 NUT, PROPELLERNUT, PROPELLER
-
7597-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7610-32470 SCREW, TRIM TAB TO GEAR HOUSINGSCREW, TRIM TAB TO GEAR HOUSING
-
7711-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16)NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16)
-
7811-23161 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8)NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8)
