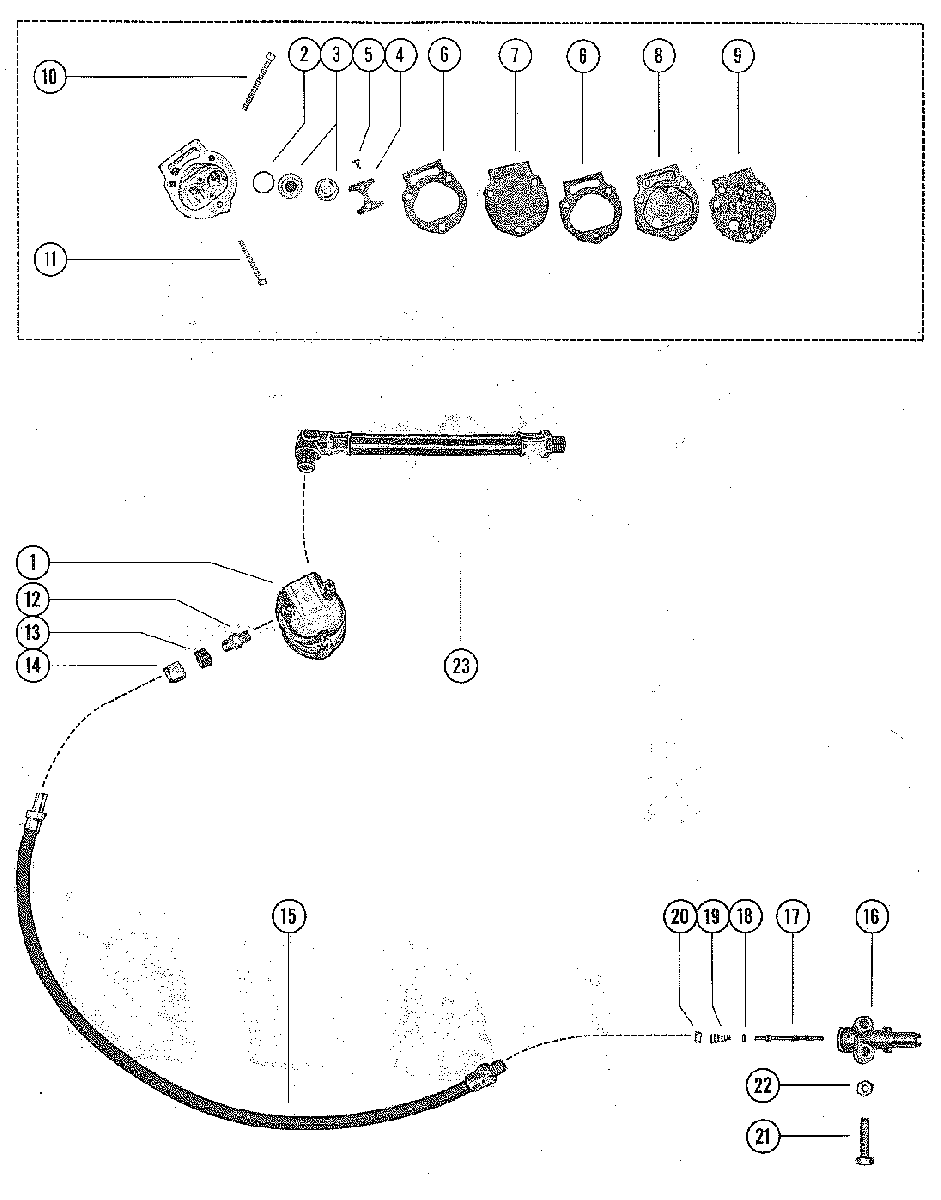

FUEL PUMP ASSEMBLY для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECKVALVE, CHECK
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
830275 COVER, FUEL PUMPCOVER, FUEL PUMP
-
927-30276 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
1010-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")SCREW, FUEL PUMP MOUNTING (1 3/4")
-
1110-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
1222-22949 CONNECTOR, PUMP INLET TO FUEL LINECONNECTOR, PUMP INLET TO FUEL LINE
-
1322-22946 SLEEVE, RUBBER - CONNECTORSLEEVE, RUBBER - CONNECTOR
-
1422-22948 NUT, CONNECTOR TO FUEL LINENUT, CONNECTOR TO FUEL LINE
-
1532-34066 FUEL LINE, FUEL PUMP TTO ADAPTORFUEL LINE, FUEL PUMP TTO ADAPTOR
-
1622833 ADAPTOR, CHECK UNIT (FUEL PUMP)ADAPTOR, CHECK UNIT (FUEL PUMP)
-
1723069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
1825-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
1924-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2030188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2110-56500 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
2211-24652 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
2332-34243 FUEL LINE, FUEL PUMP TO CARBURETOR (7 1/8")FUEL LINE, FUEL PUMP TO CARBURETOR (7 1/8")
