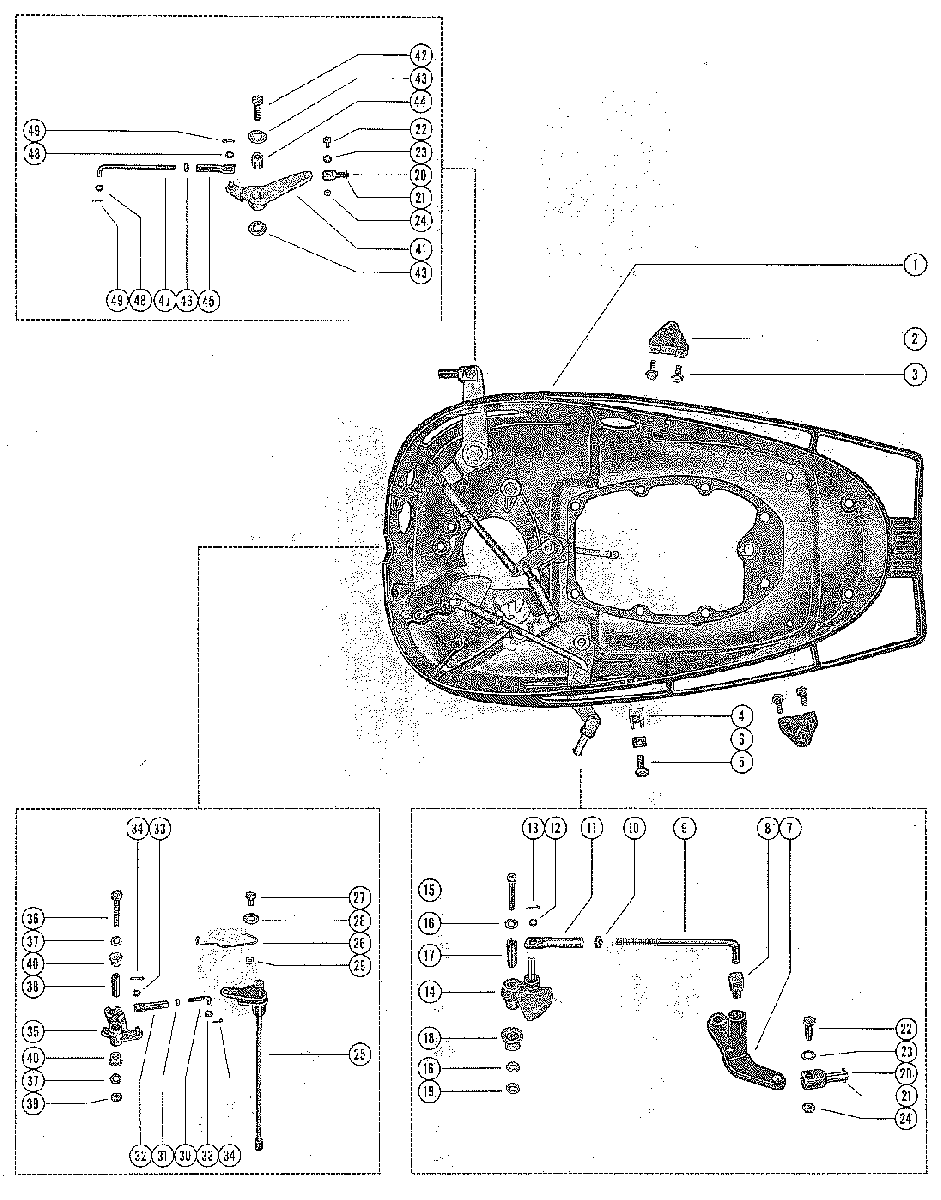

THROTTLE AND SHIFT LINKAGE для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
12121-2510A2 BOTTOM COWL ASSEMBLY (SEE PAGE 18 FOR PARTS BREAKDOWN)BOTTOM COWL ASSEMBLY (SEE PAGE 18 FOR PARTS BREAKDOWN)
-
220557 BRACKET, CABLE END ANCHORBRACKET, CABLE END ANCHOR
-
310-29200 SCREW, CABLE END ANCHOR BRACKET TO BOTTOM COWLSCREW, CABLE END ANCHOR BRACKET TO BOTTOM COWL
-
421968 STOP BLOCK, THROTTLE LEVERSTOP BLOCK, THROTTLE LEVER
-
510-28636 SCREW, STOP BLOCK TO BOTTOM COWLSCREW, STOP BLOCK TO BOTTOM COWL
-
612-21967 WASHER, STOP BLOCK TO BOTTOM COWL SCREWWASHER, STOP BLOCK TO BOTTOM COWL SCREW
-
733833 LEVER, THROTTLE ACTUATING - BOTTOM COWLLEVER, THROTTLE ACTUATING - BOTTOM COWL
-
827947 SWIVEL, THROTTLE CONTROLSWIVEL, THROTTLE CONTROL
-
933898 ROD, THROTTLE CONTROLROD, THROTTLE CONTROL
-
1011-25168 NUT, ADJUSTING - THROTTLE CONTROL RODNUT, ADJUSTING - THROTTLE CONTROL ROD
-
1133953 ROD (SLEEVE), THROTTLE CONTROL ROD TO THROTTLE CONTROL LEVERROD (SLEEVE), THROTTLE CONTROL ROD TO THROTTLE CONTROL LEVER
-
1212-20583 WASHER, THROTTLE CONTROL LEVERWASHER, THROTTLE CONTROL LEVER
-
1318-210711 COTTER PIN, THROTTLE CONTROL LEVERCOTTER PIN, THROTTLE CONTROL LEVER
-
1433835 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1510-29246 SCREW, THROTTLE CONTROL LEVER TO BOTTOM COWLSCREW, THROTTLE CONTROL LEVER TO BOTTOM COWL
-
1612-38832 WASHER, THROTTLE CONTROL LEVER FASTENING CREWWASHER, THROTTLE CONTROL LEVER FASTENING CREW
-
1723-33906 SPACER, THROTTLE CONTROL LEVER FASTENING SCREWSPACER, THROTTLE CONTROL LEVER FASTENING SCREW
-
1823-65830 BUSHING, THROTTLE CONTROL LEVER TO BOTTOM COWLBUSHING, THROTTLE CONTROL LEVER TO BOTTOM COWL
-
1912-21273 WASHER, THROTTLE CONTROL LEVER FASTENING SCREWWASHER, THROTTLE CONTROL LEVER FASTENING SCREW
-
2017-30978A1 PIN ASSEMBLY, CLEVIS YOKEPIN ASSEMBLY, CLEVIS YOKE
-
2117-239281 ROLL PIN, CLEVIS YOKE PINROLL PIN, CLEVIS YOKE PIN
-
2210-20584 SCREW, CLEVIS YOKE PIN FASTENINGSCREW, CLEVIS YOKE PIN FASTENING
-
2313-29402 WASHER, WAVE - CLEVIS YOKE PIN FASTENING SCREWWASHER, WAVE - CLEVIS YOKE PIN FASTENING SCREW
-
2411-826709106 NUT, CLEVIS YOKE PIN FASTENING SCREWNUT, CLEVIS YOKE PIN FASTENING SCREW
-
2533901A1 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
2624-30621 SPRING, DETENE - SHIFT SHAFTSPRING, DETENE - SHIFT SHAFT
-
2710-98256 SCREW, DETENT SPRING TO BOTTOM COWLSCREW, DETENT SPRING TO BOTTOM COWL
-
2812-69057 WASHER, DETENT SPRING FASTENING SCREWWASHER, DETENT SPRING FASTENING SCREW
-
2911-20013 NUT, DETENT SPRING FASTENING SCREWNUT, DETENT SPRING FASTENING SCREW
-
3033837 ROD, THROTTLE STOP CONTROLROD, THROTTLE STOP CONTROL
-
3111-25168 NUT, ADJUSTING - THROTTLE STOP CONTROL RODNUT, ADJUSTING - THROTTLE STOP CONTROL ROD
-
3233953 ROD (SLEEVE), THROTTLE STOP CONTROL ROD TO THROTTLE STOP LEVROD (SLEEVE), THROTTLE STOP CONTROL ROD TO THROTTLE STOP LEV
-
3312-20583 WASHER, THROTTLE STOP LEVERWASHER, THROTTLE STOP LEVER
-
3418-210711 COTTER PIN, THROTTLE STOP LEVERCOTTER PIN, THROTTLE STOP LEVER
-
3533834 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
3610-34438 SCREW, THROTTLE STOP LEVER TO BOTTOM COWL (2 3/8")SCREW, THROTTLE STOP LEVER TO BOTTOM COWL (2 3/8")
-
3712-34437 WASHER, THROTTLE STOP LEVER FASTENING SCREWWASHER, THROTTLE STOP LEVER FASTENING SCREW
-
3823-34440 BUSHING, THROTTLE STOP LEVER FASTENING SCREWBUSHING, THROTTLE STOP LEVER FASTENING SCREW
-
3911-29250 NUT, THROTTLE STOP LEVER FASTENING SCREWNUT, THROTTLE STOP LEVER FASTENING SCREW
-
4023-34103 BUSHING, THROTTLE STOP LEVER FASTENING SCREWBUSHING, THROTTLE STOP LEVER FASTENING SCREW
-
4133841 LEVER, SHIFT CONTROLLEVER, SHIFT CONTROL
-
4210-47273 SCREW, SHIFT CONTROL LEVER TO BOTTOM COWLSCREW, SHIFT CONTROL LEVER TO BOTTOM COWL
-
4312-8M0042641 WASHER, SHIFT CONTROL LEVER FASTENING SCREWWASHER, SHIFT CONTROL LEVER FASTENING SCREW
-
4423-29529 BUSHING, SHIFT CONTROL LEVER FASTENING SCREWBUSHING, SHIFT CONTROL LEVER FASTENING SCREW
-
4533953 ROD (SLEEVE), SHIFT CONTROL ENDROD (SLEEVE), SHIFT CONTROL END
-
4611-25168 NUT, ADJUSTING - SHIFT SHAFT ENDNUT, ADJUSTING - SHIFT SHAFT END
-
4733982 ROD, LINK - SHIFT SHAFT ENDROD, LINK - SHIFT SHAFT END
-
4812-20583 WASHER, SHIFT CONTROL END RODWASHER, SHIFT CONTROL END ROD
-
4918-210711 COTTER PIN, SHIFT CONTROL END RODCOTTER PIN, SHIFT CONTROL END ROD
