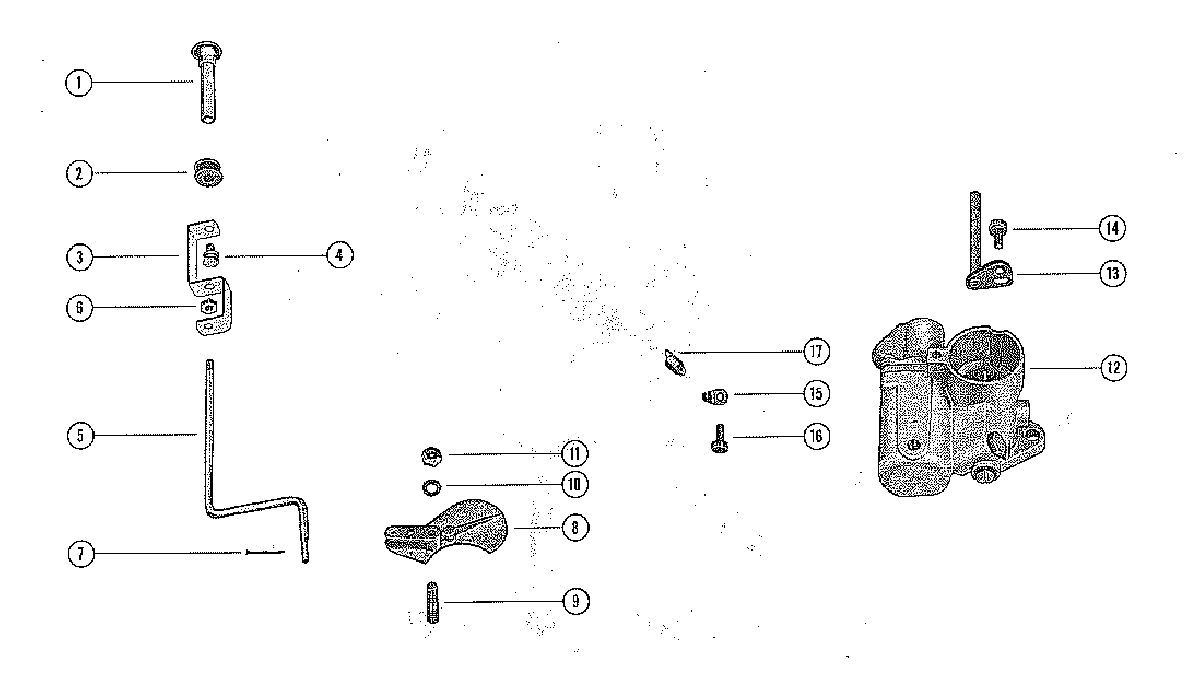

CARBURETOR LINKAGE для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
190242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
225-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
333954 "S" LINK, CHOKE ROD TO CHOKE KNOB"S" LINK, CHOKE ROD TO CHOKE KNOB
-
410-30097 SCREW, "S" LINK TO CHOKE KNOBSCREW, "S" LINK TO CHOKE KNOB
-
534000 ROD, CHOKEROD, CHOKE
-
611-20110 NUT, CHOKE ROD TO "S" LINKNUT, CHOKE ROD TO "S" LINK
-
717-25391 RIVET, CHOKE ROD TO CHOKE SHUTTERRIVET, CHOKE ROD TO CHOKE SHUTTER
-
847804 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
916-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
1012-30164 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
1111-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
121335-2472 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
1333900A1 THROTTLE LEVER ASSEMBLYTHROTTLE LEVER ASSEMBLY
-
1410-29239 SCREW, THROTTLE LEVER TO CARBURETORSCREW, THROTTLE LEVER TO CARBURETOR
-
1527711 RETAINER, CHOKE ROD SPRINGRETAINER, CHOKE ROD SPRING
-
1610-28713 SCREW, RETAINER TO CARBURETORSCREW, RETAINER TO CARBURETOR
-
1724-28965 SPRING, TENSION - CHOKE RODSPRING, TENSION - CHOKE ROD
