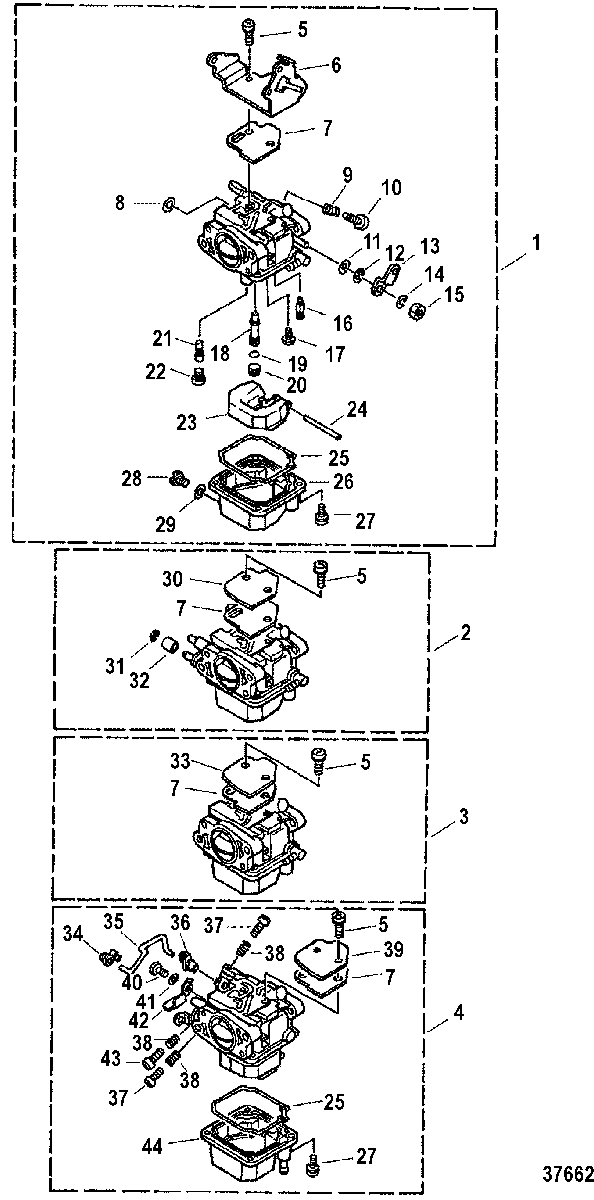

CARBURETOR(NON-ADJUSTABLE PILOT SCREW) для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
13319-825073T11 CARBURETOR
(1) 50 NON-ADJUSTABLE PILOT SCREWCARBURETOR
(1) 50 NON-ADJUSTABLE PILOT SCREW -
23319-825073T12 CARBURETOR
(2) 50 NON-ADJUSTABLE PILOT SCREWCARBURETOR
(2) 50 NON-ADJUSTABLE PILOT SCREW -
33319-825073T13 CARBURETOR
(3) 50 NON-ADJUSTABLE PILOT SCREWCARBURETOR
(3) 50 NON-ADJUSTABLE PILOT SCREW -
43319-8M0059473 CARBURETOR
(4) 50 NON-ADJUSTABLE PILOT SCREWCARBURETOR
(4) 50 NON-ADJUSTABLE PILOT SCREW -
510-809571 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
6809572 COVER
(1)COVER
(1) -
7809573 GASKETGASKET
-
812-826943M WASHER
(1/2/3)WASHER
(1/2/3) -
924-8095791 SPRING
(1/2/3)SPRING
(1/2/3) -
1010-8095781 SCREW, Throttle
(1/2/3)SCREW, Throttle
(1/2/3) -
1112-809580 WASHERWASHER
-
1253-94722M RING, RetainingRING, Retaining
-
13809582 LEVER
(1)LEVER
(1) -
1413-92515M LOCKWASHER
(1)LOCKWASHER
(1) -
1511-809581 NUT
(1)NUT
(1) -
16809570 NEEDLE VALVENEEDLE VALVE
-
1710-8095711 SCREW, (M4 x 5)SCREW, (M4 x 5)
-
18809574 MAIN NOZZLEMAIN NOZZLE
-
1925-11802M O-RINGO-RING
-
20809577 MAIN NOZZLEMAIN NOZZLE
-
218095761 JET, Pilot (#44)JET, Pilot (#44)
-
22809575 JET, Main (#112)JET, Main (#112)
-
23809569 FLOATFLOAT
-
2417-11794M PINPIN
-
2527-809568 GASKETGASKET
-
26809567 BODY
(1/2/3)BODY
(1/2/3) -
2710-81758M SCREW, (M4 x 12)SCREW, (M4 x 12)
-
2810-8095783 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
2927-8095681 GASKETGASKET
-
308095721 COVER
(2)COVER
(2) -
3153-809584 CLIP
(2)CLIP
(2) -
32809585 ROLLER
(2)ROLLER
(2) -
338095721 COVER
(3)COVER
(3) -
3411829M RETAINER
(4)RETAINER
(4) -
35809586 ROD, Starter
(4)ROD, Starter
(4) -
36809587 JOINT
(4)JOINT
(4) -
3710-8095781 SCREW, Throttle
(4)SCREW, Throttle
(4) -
3824-8095791 SPRING, Pilot Adjusting
(4)SPRING, Pilot Adjusting
(4) -
398095721 COVER
(4)COVER
(4) -
4010-8095712 SCREW
(4)SCREW
(4) -
4112-8095801 WASHER
(4)WASHER
(4) -
428095821 LEVER
(4)LEVER
(4) -
4310-826931M SCREW
(4)SCREW
(4) -
448095671 BODY
(4)BODY
(4) -
-809594A1 REPAIR KIT, Carburetor
(One Kit per Carburetor)REPAIR KIT, Carburetor
(One Kit per Carburetor)
