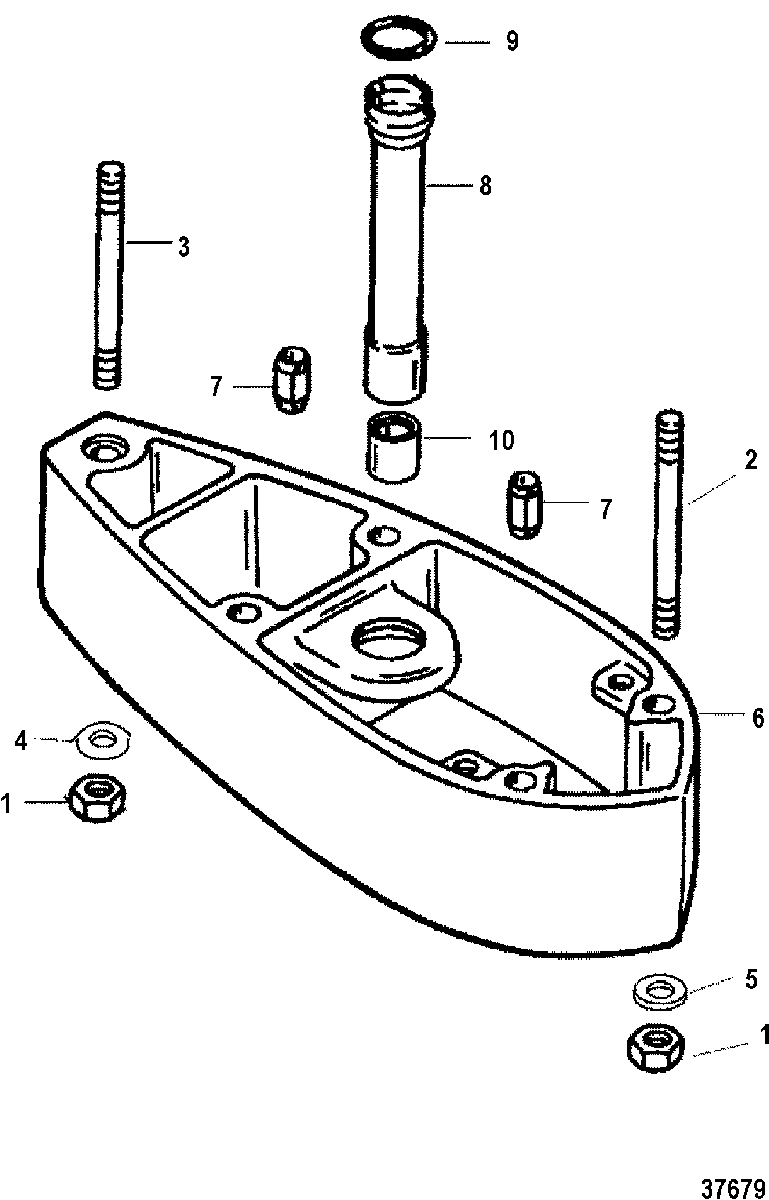

EXTENSION COMPONENTS(NON BIGFOOT) для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
111-40140 NUT, (M10)NUT, (M10)
-
216-8168665 STUD, (M10 x 130)STUD, (M10 x 130)
-
316-824083 STUD, (M10 x 114)STUD, (M10 x 114)
-
412-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
-
512-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
6824072A1 SPACER, Driveshaft Housing Extension
(BLACK)SPACER, Driveshaft Housing Extension
(BLACK) -
6824072A2 SPACER, Driveshaft Housing Extension
(GRAY)SPACER, Driveshaft Housing Extension
(GRAY) -
717-821327 PIN, DowelPIN, Dowel
-
8824082A1 TUBE ASSEMBLY, Water - ExtensionTUBE ASSEMBLY, Water - Extension
-
925-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
1026-824084 SEALSEAL
