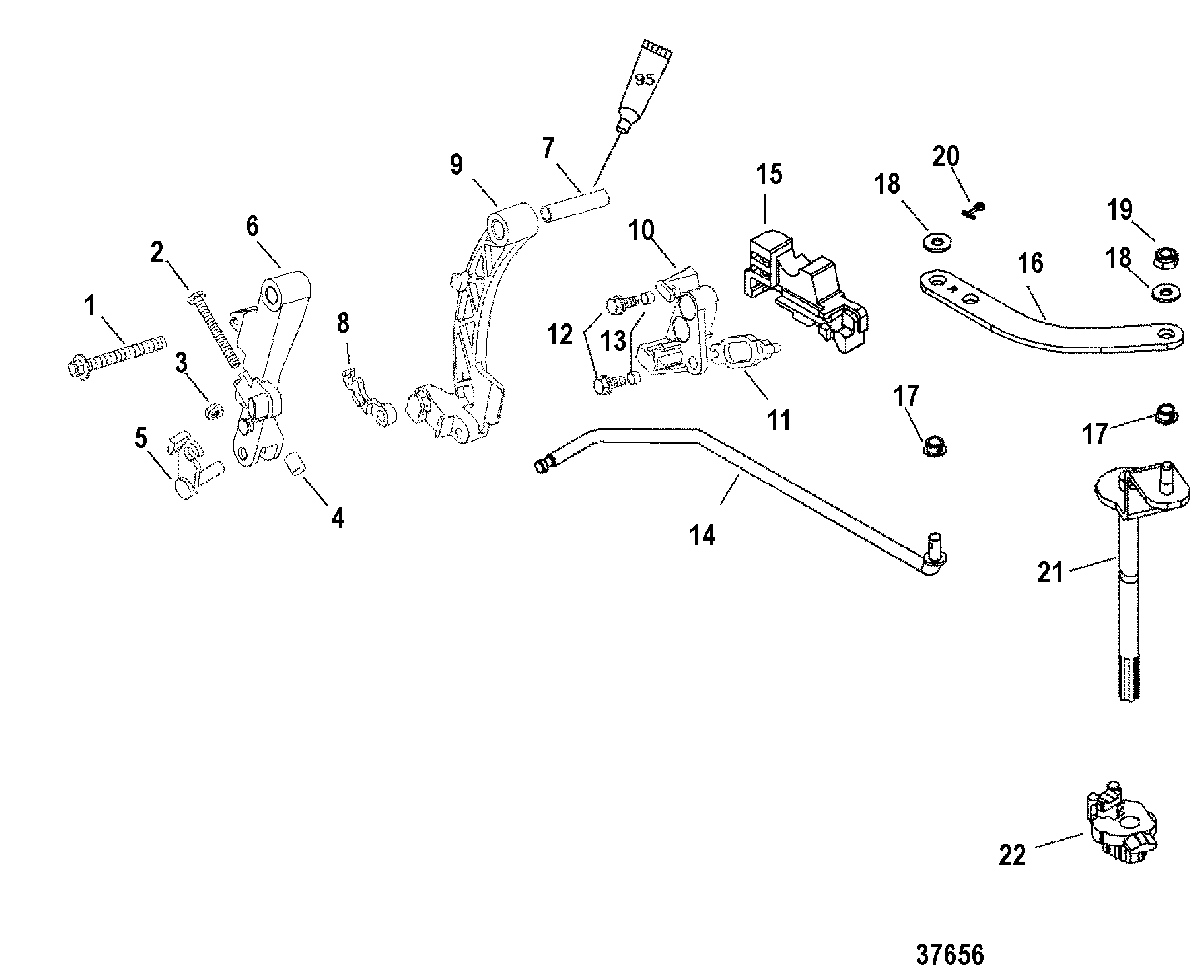

LINKAGE(BIGFOOT) для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5826587 RETAINERRETAINER
-
6822682A4 LEVER, ThrottleLEVER, Throttle
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINERRETAINER
-
98259571 LEVER, ShiftLEVER, Shift
-
10827706A4 BRACKETBRACKET
-
1198889 LATCHLATCH
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1323-15885 SLEEVESLEEVE
-
14893777 SHIFT RODSHIFT ROD
-
15827706A4 GUIDEGUIDE
-
16893769A01 SHIFT LINKSHIFT LINK
-
1723-48475 BUSHINGBUSHING
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401386 NUT, (M6)NUT, (M6)
-
2018-25191 COTTER PINCOTTER PIN
-
21850166T2 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
2223-850165 BUSHINGBUSHING
