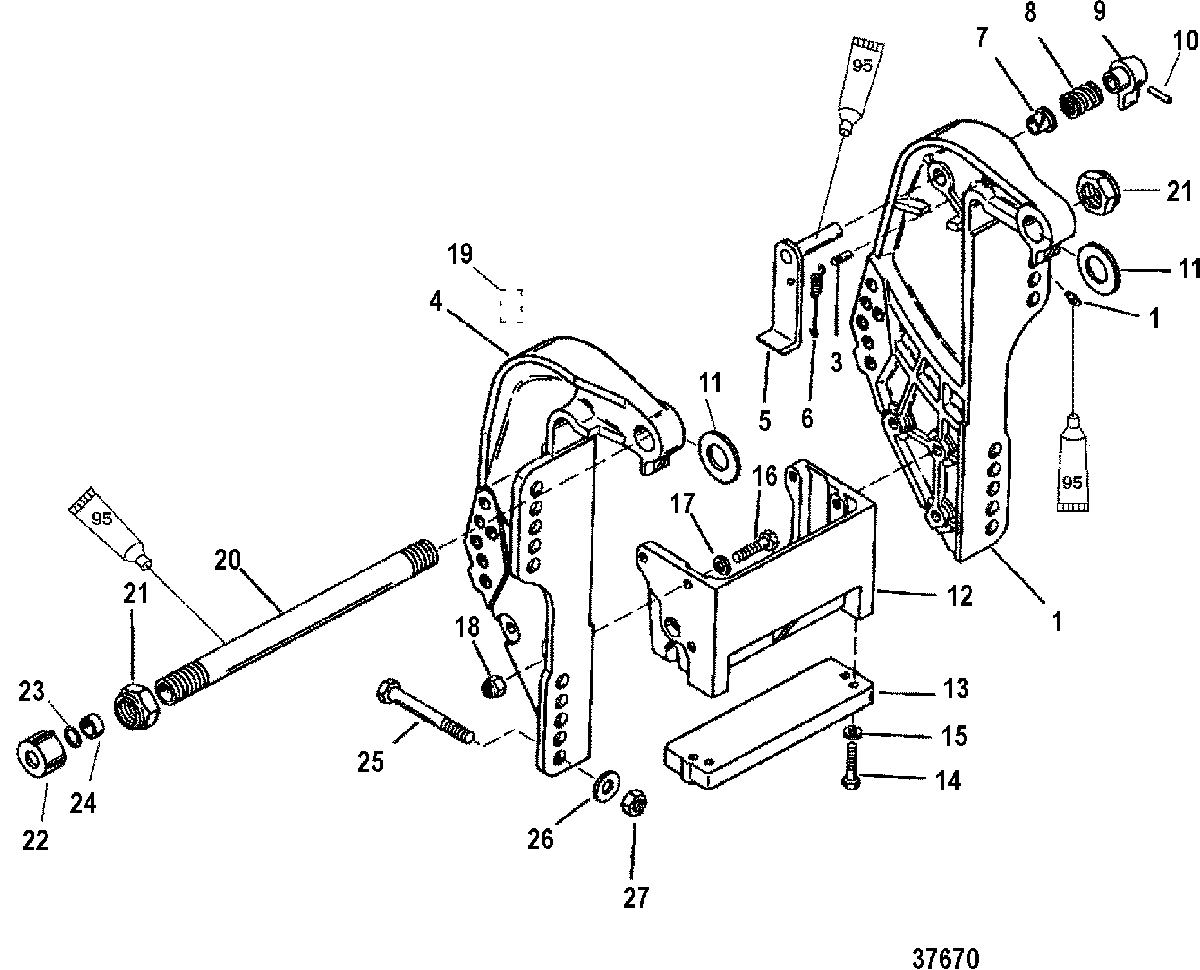

TRANSOM BRACKET(BIGFOOT) для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
13418-822866T04 BRACKET ASSEMBLY, Transom
(BLACK) PORTBRACKET ASSEMBLY, Transom
(BLACK) PORT -
13418-822866A2 BRACKET ASSEMBLY, Transom
(GRAY) PORTBRACKET ASSEMBLY, Transom
(GRAY) PORT -
222-74036 FITTING, Grease
PORTFITTING, Grease
PORT -
317-99604 PIN, Groove
PORTPIN, Groove
PORT -
43418-822865T05 BRACKET, Transom
(BLACK) STARBOARDBRACKET, Transom
(BLACK) STARBOARD -
43418-822865F3 BRACKET, Transom
(GRAY) STARBOARDBRACKET, Transom
(GRAY) STARBOARD -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(BLACK)LEVER ASSEMBLY, Tilt Lock
(BLACK) -
5893704T01 LEVER ASSEMBLY, Tilt Lock
(GRAY)LEVER ASSEMBLY, Tilt Lock
(GRAY) -
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB
(BLACK)KNOB
(BLACK) -
9812709 KNOB
(GRAY)KNOB
(GRAY) -
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, Anchor
(BLACK)BRACKET, Anchor
(BLACK) -
1218486A08 BRACKET, Anchor
(GRAY)BRACKET, Anchor
(GRAY) -
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1610-4000355 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-400257 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1811-401388 NUT, (M8)NUT, (M8)
-
19N.S.S. Not Sold Separate, DECAL-TILT LOCKNot Sold Separate, DECAL-TILT LOCK
-
208M0041938 TILT TUBETILT TUBE
-
2111-858869 NUT, (7/8-14)NUT, (7/8-14)
-
2219624A1 SEAL KITSEAL KIT
-
2325-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
2423-78861 SPACERSPACER
-
2510-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2711-91962 NUT, (.500-20)NUT, (.500-20)
