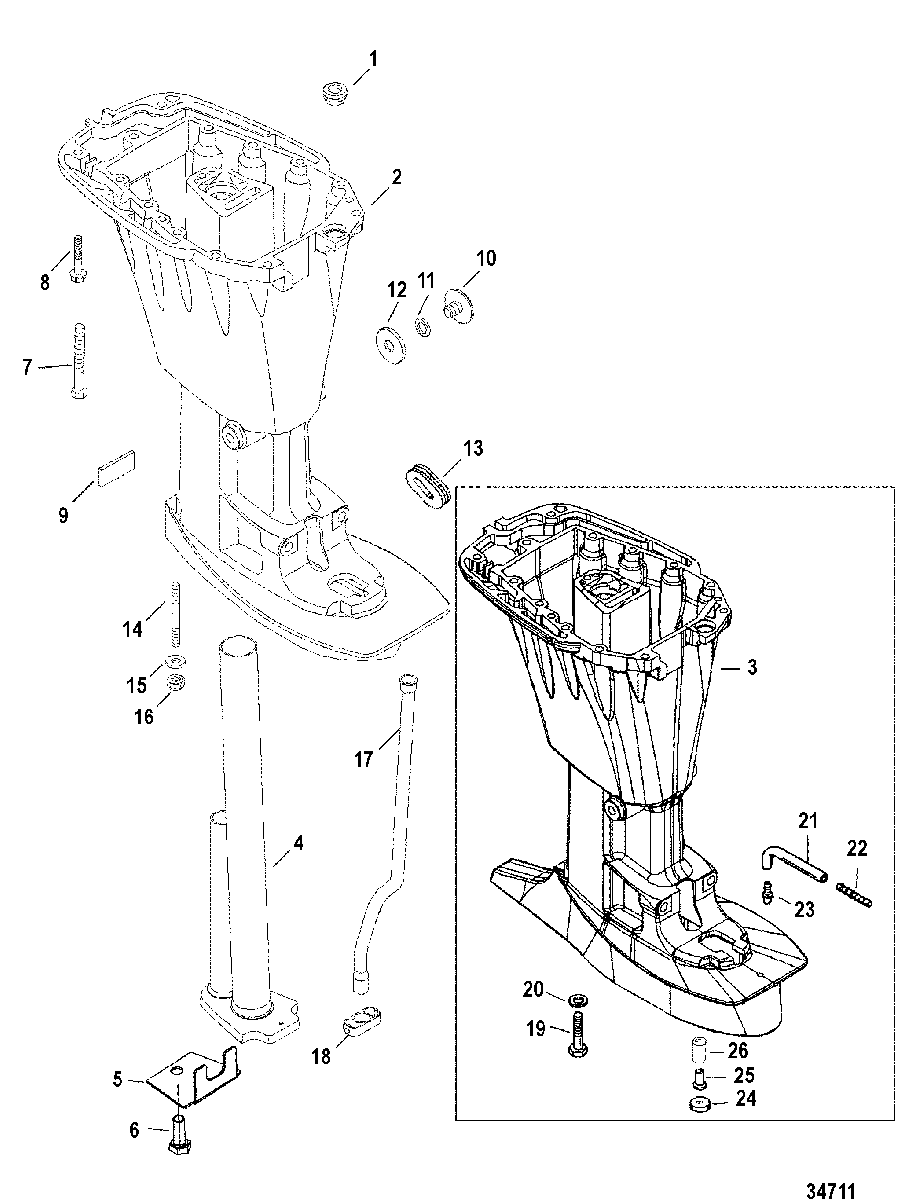

DRIVESHAFT HOUSING для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
142941001 SEAL, Water TubeSEAL, Water Tube
-
23532-825218T5 HOUSING ASSEMBLY, Driveshaft
(BLACK) NON-BIGFOOTHOUSING ASSEMBLY, Driveshaft
(BLACK) NON-BIGFOOT -
23532-825218T5 HOUSING ASSEMBLY, Driveshaft
(GRAY) NON-BIGFOOTHOUSING ASSEMBLY, Driveshaft
(GRAY) NON-BIGFOOT -
31503-852421T3 HOUSING ASSEMBLY, Driveshaft
(BLACK) BIGFOOTHOUSING ASSEMBLY, Driveshaft
(BLACK) BIGFOOT -
31503-852421T4 HOUSING ASSEMBLY, Driveshaft
(GRAY) BIGFOOTHOUSING ASSEMBLY, Driveshaft
(GRAY) BIGFOOT -
4825220T06 PIPE, ExhaustPIPE, Exhaust
-
58M4503628 PLATE
BIGFOOTPLATE
BIGFOOT -
610-1993325 SCREW, (M10 x 25 MM)
BIGFOOTSCREW, (M10 x 25 MM)
BIGFOOT -
710-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
810-88960845 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
98M0043364 BUMPERBUMPER
-
108288181 PLUG, DrainPLUG, Drain
-
1127-828816 GASKETGASKET
-
12826276 BUMPERBUMPER
-
1325-8M4504002 GROMMETGROMMET
-
1416-823984 STUD, (M10 x 50)STUD, (M10 x 50)
-
1416-903501 STUD, (M10 x 100)
(BIGFOOT)STUD, (M10 x 100)
(BIGFOOT) -
1512-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
-
1611-40140 NUT, (M10)NUT, (M10)
-
1732-897971A01 TUBE, WaterTUBE, Water
-
1854-828529 GUIDEGUIDE
-
1910-4000380 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
2012-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2122-85822A7 SPEEDOMETER PICK UP
BIGFOOTSPEEDOMETER PICK UP
BIGFOOT -
2222-85822T CONNECTOR, Straight
BIGFOOTCONNECTOR, Straight
BIGFOOT -
2322-13035002 FITTING
BIGFOOTFITTING
BIGFOOT -
2423-813745 SPACER
BIGFOOTSPACER
BIGFOOT -
2543585 COUPLING
BIGFOOTCOUPLING
BIGFOOT -
2623-855623 BUSHING
BIGFOOTBUSHING
BIGFOOT -
-27-832013A96 GASKET SETGASKET SET
