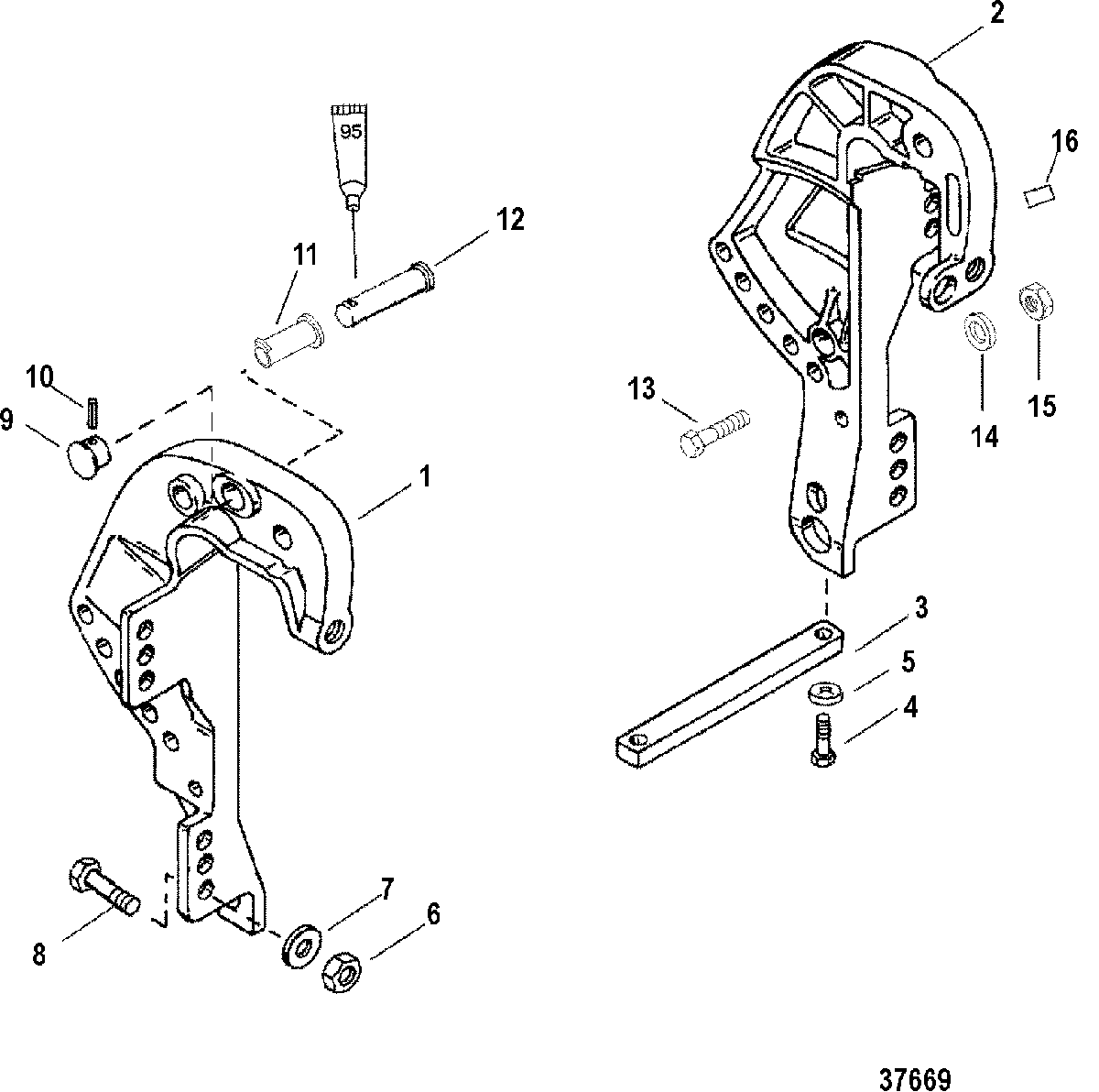

CLAMP BRACKET(NON BIGFOOT) для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
13412-821774T8 CLAMP BRACKET
(BLACK-STBD.)CLAMP BRACKET
(BLACK-STBD.) -
13412-821774T8 CLAMP BRACKET
(GRAY-STBD.)CLAMP BRACKET
(GRAY-STBD.) -
23411-821773T1 CLAMP BRACKET
(BLACK-PORT)CLAMP BRACKET
(BLACK-PORT) -
23411-821773A2 CLAMP BRACKET
(GRAY-PORT)CLAMP BRACKET
(GRAY-PORT) -
397-8252711 ANODEANODE
-
410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
611-91962 NUT, (.500-20)NUT, (.500-20)
-
712-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
810-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
9822401 CAPCAP
-
1017-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
1123-823589 BUSHINGBUSHING
-
1217-8224001 PINPIN
-
1310-4009040 SCREW, (M10 x 40) Stainless SteelSCREW, (M10 x 40) Stainless Steel
-
1412-4002319 WASHERWASHER
-
1511-40140 NUT, (M10)NUT, (M10)
-
1637-8237011 DECAL, Co-PilotDECAL, Co-Pilot
