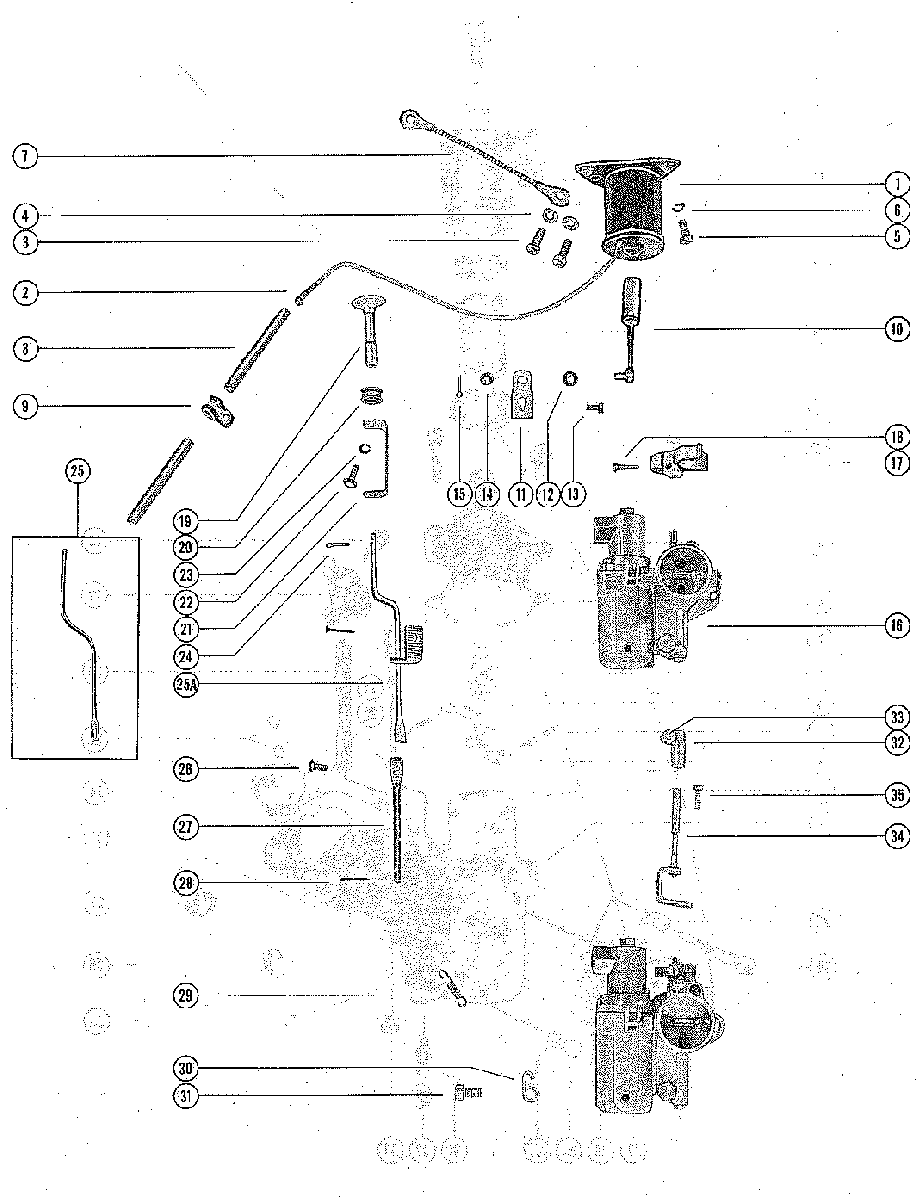

CABURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
131593 CHOKE SOLENOID, TOP COWLCHOKE SOLENOID, TOP COWL
-
222647 DISCONNECT, KNIFE SPLICE - CHOKE SOLENOIDDISCONNECT, KNIFE SPLICE - CHOKE SOLENOID
-
310-20540 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
413-26992 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
510-24773 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
613-26991 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
726716A1 GROUND STRAP ASSEMBLY, SOLENOID TO ADAPTORGROUND STRAP ASSEMBLY, SOLENOID TO ADAPTOR
-
832-26693A1 SLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRESLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRE
-
954-24836 CLAMP, CHOKE WIRE TO STARTER SOLENOIDCLAMP, CHOKE WIRE TO STARTER SOLENOID
-
-8M0084613 D WASHER, CHOKE WIRE CLAMP SCREWD WASHER, CHOKE WIRE CLAMP SCREW
-
1027031A1 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
1127710 ADAPTOR PLATE, CHOKE PLUNGERADAPTOR PLATE, CHOKE PLUNGER
-
1225-26633 GROMMET, ADAPTOR PLATEGROMMET, ADAPTOR PLATE
-
1310-30097 SCREW, ADAPTOR PLATE TO CHOKE ROD BRACKETSCREW, ADAPTOR PLATE TO CHOKE ROD BRACKET
-
1412-26014 WASHER, CHOKE SOLENOID LINKWASHER, CHOKE SOLENOID LINK
-
1518-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENINGCOTTER PIN, CHOKE SOLENOID LINK FASTENING
-
161333-2001 CARBUERTOR ASSEMBLY, COMPLETECARBUERTOR ASSEMBLY, COMPLETE
-
161333-1867 CARBUERTOR ASSEMBLY, COMPLETECARBUERTOR ASSEMBLY, COMPLETE
-
161333-2002 CARBUERTOR ASSEMBLY, COMPLETECARBUERTOR ASSEMBLY, COMPLETE
-
1727917 CLUSTER, THROTTLE LEVER ( UPPER CARBURETOR )CLUSTER, THROTTLE LEVER ( UPPER CARBURETOR )
-
181395-6027 SCREW, SET - CLUSTER TO THROTTLE LEVERSCREW, SET - CLUSTER TO THROTTLE LEVER
-
1920663 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1990242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
2025-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
2122462 U LINK, CHOKE KNOB TO CHOKE RODU LINK, CHOKE KNOB TO CHOKE ROD
-
2210-69022 SCREW, U LINK TO CHOKE KNOBSCREW, U LINK TO CHOKE KNOB
-
2313-26996 LOCKWASHER, U LINK FASTENING SCREWLOCKWASHER, U LINK FASTENING SCREW
-
2418-210711 COTTER PIN, CHOKE LEVER AND ROD FASTENINGCOTTER PIN, CHOKE LEVER AND ROD FASTENING
-
2528977 CHOKE ROD - UPPERCHOKE ROD - UPPER
-
25A28972A1 CHOKE ROD AND BRACKET ASSEMBLY - UPPERCHOKE ROD AND BRACKET ASSEMBLY - UPPER
-
2610-30096 SCREW, UPPER CHOKE ROD TO LOWER CHOKE RODSCREW, UPPER CHOKE ROD TO LOWER CHOKE ROD
-
2727918 CHOKE ROD - LOWERCHOKE ROD - LOWER
-
--12-27882 WASHER, CHOKE ROD FASTENING SCREWWASHER, CHOKE ROD FASTENING SCREW
-
2817-25391 RIVET, CHOKE ROD TO THROTTLE SHAFTRIVET, CHOKE ROD TO THROTTLE SHAFT
-
2924-20649 SPRING, CHOKE ROD TO RETAINERSPRING, CHOKE ROD TO RETAINER
-
2924-28965 SPRING, CHOKE ROD TO RETAINERSPRING, CHOKE ROD TO RETAINER
-
3028651 RETAINER, CHOKE ROD SPRINGRETAINER, CHOKE ROD SPRING
-
3031479 RETAINER, CHOKE ROD SPRINGRETAINER, CHOKE ROD SPRING
-
3110-28713 SCREW, RETAINER TO LOWER CARBURETORSCREW, RETAINER TO LOWER CARBURETOR
-
3227870 CLAMP, THROTTLE PICKUP BRACKETCLAMP, THROTTLE PICKUP BRACKET
-
3310-69022 SCREW, CLAMP TO THROTTLE PICKUP BRACKETSCREW, CLAMP TO THROTTLE PICKUP BRACKET
-
--12-30164 WASHER, THROTTLE PICKUP BRACKET CLAMP SCREWWASHER, THROTTLE PICKUP BRACKET CLAMP SCREW
-
3428007A1 BRACKET ASSMEBLY, THROTTLE PICKUPBRACKET ASSMEBLY, THROTTLE PICKUP
-
3453719A2 BRACKET ASSMEBLY, THROTTLE PICKUP (NOT AS SHOWN)BRACKET ASSMEBLY, THROTTLE PICKUP (NOT AS SHOWN)
-
3510-29239 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
