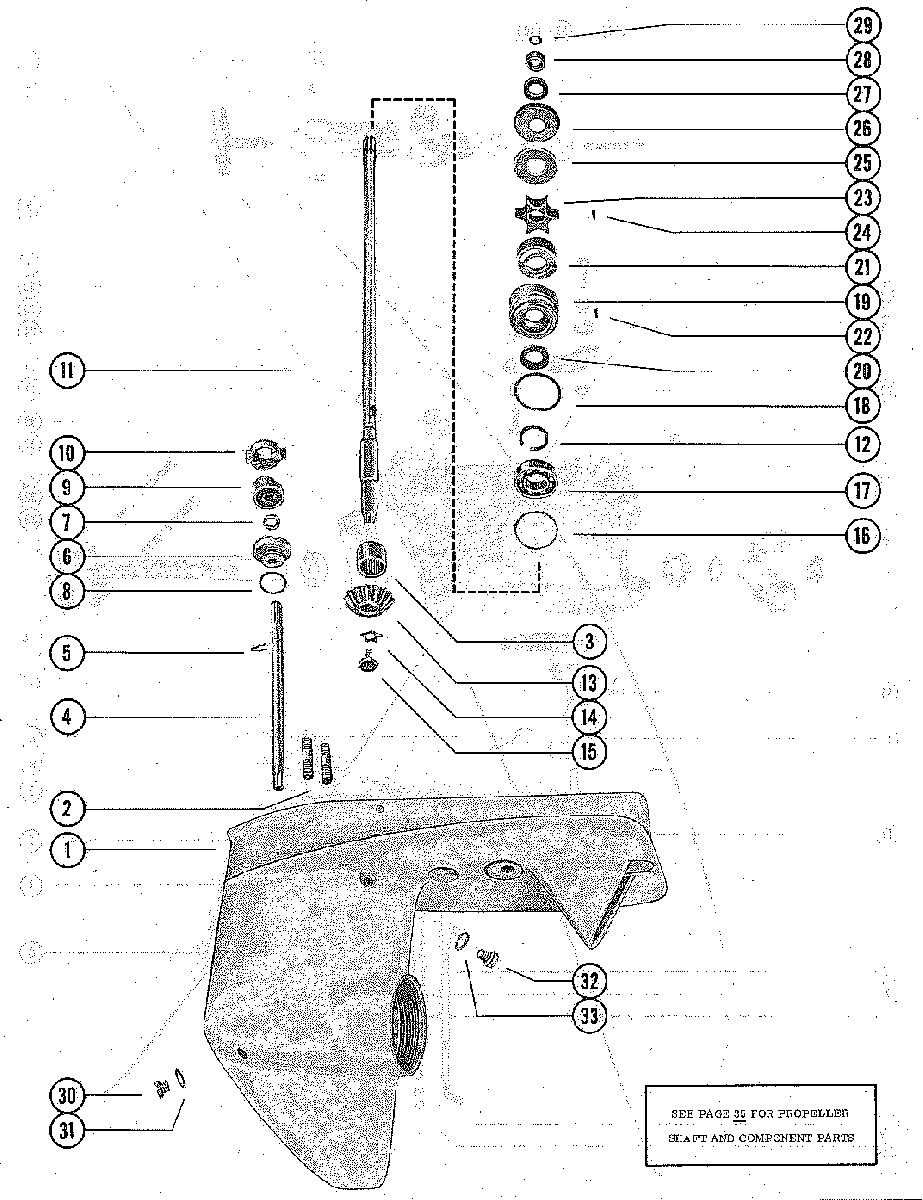

GEAR HOUSING ASSEMBLY, COMPLETE(MERC 500M & E) (PAGE 1) для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
-1603-1868A2 GEAR HOUSING ASSEMBLY, COMPLETE
SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE
SEE NOTE BELOW -
11603-1868A1 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSINGSTUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
331-62091T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
425136 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
553-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
623-46284A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
726-892361 OIL SEALOIL SEAL
-
825-25439 "OIL" RING, SHIFT SHAFT BUSHING"OIL" RING, SHIFT SHAFT BUSHING
-
952918 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
1052919 CAM, UPPER - REVERSE LOCKINGCAM, UPPER - REVERSE LOCKING
-
1145-29617A1 DRIVE SHAFT ASSEMBLYDRIVE SHAFT ASSEMBLY
-
1253-29116 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1343-20834 GEAR, PINIONGEAR, PINION
-
1414-29163 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
1510-20925 SCREW, PINION GEAR TO DRIVE SHAFTSCREW, PINION GEAR TO DRIVE SHAFT
-
1615-20929A1 SHIM, DRIVE SHAFT BEARING TO HSG.SHIM, DRIVE SHAFT BEARING TO HSG.
-
1730-72961 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1825-26722 "O"RING, WATER PUMP CARTRIDGE"O"RING, WATER PUMP CARTRIDGE
-
1946-29117A1 WATER PUMP CARTRIDGE ASSEMBLYWATER PUMP CARTRIDGE ASSEMBLY
-
2026-90562 OIL SEALOIL SEAL
-
2128091 INSERT, WATER PUMP CARTRIDGEINSERT, WATER PUMP CARTRIDGE
-
2228-28657 KEY, WATER PUMP CARTRIDGEKEY, WATER PUMP CARTRIDGE
-
2347-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2428-8M0032837 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
2520272 PLATE, OUTLET - WATER PUMP COVERPLATE, OUTLET - WATER PUMP COVER
-
2620270A2 WATER PUMP COVER ASSEMBLYWATER PUMP COVER ASSEMBLY
-
2726-23517 OIL SEALOIL SEAL
-
2825-20273 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
2925-29619 "O"RING, UPPER - DRIVE SHAFT"O"RING, UPPER - DRIVE SHAFT
-
3010-79953Q04 SCREW, GREASE FILLER AND FLUSHING HOLESCREW, GREASE FILLER AND FLUSHING HOLE
-
3112-191833 WASHER, GREASE FILLER AND FLUSHING HOLE SCREWWASHER, GREASE FILLER AND FLUSHING HOLE SCREW
-
3210-28653 SCREW, GEAR HOUSING VENTSCREW, GEAR HOUSING VENT
-
3319643 WASHER, GEAR HOUSING VENT SCREWWASHER, GEAR HOUSING VENT SCREW
