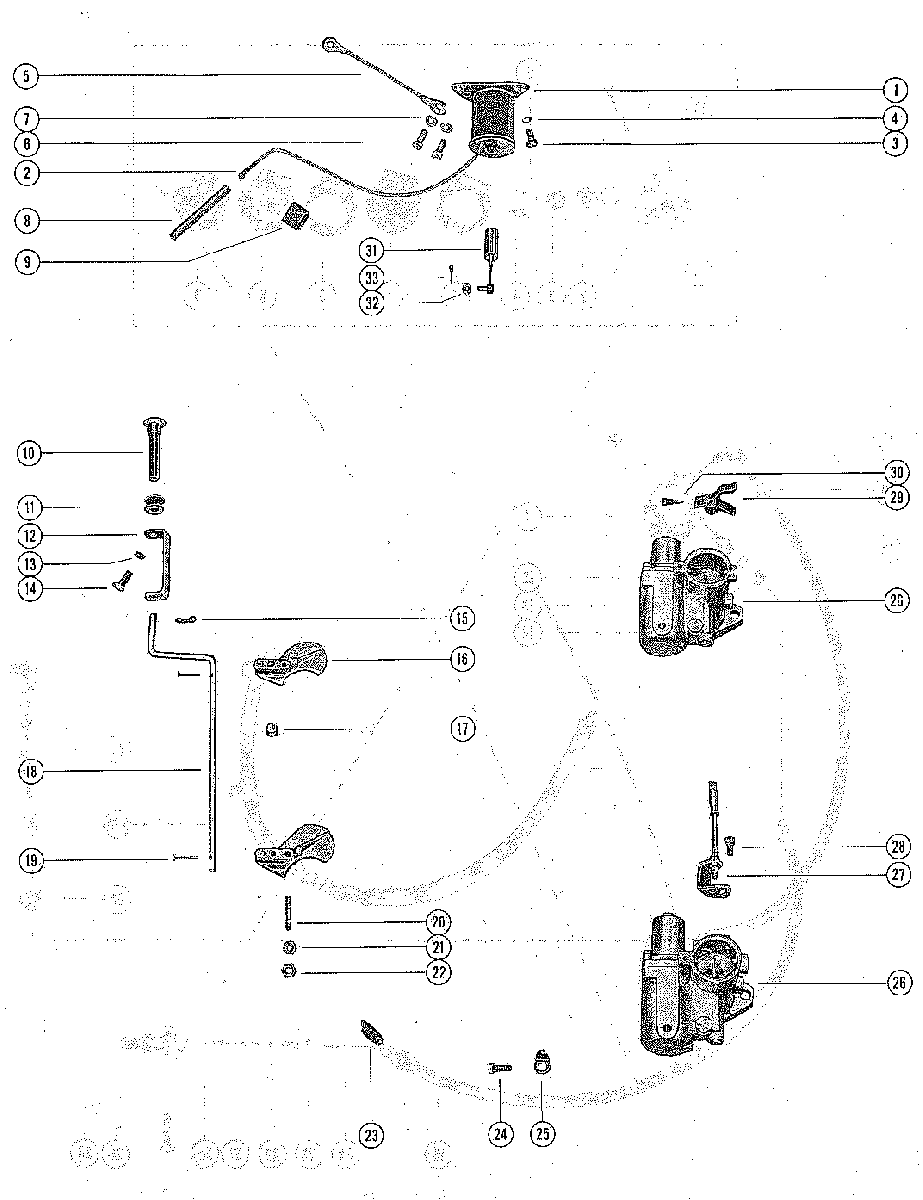

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
131593 CHOKE SOLENOID, TOP COWL
SERIAL 00000000-01570353CHOKE SOLENOID, TOP COWL
SERIAL 00000000-01570353 -
131593 CHOKE SOLENOID, TOP COWL
SERIAL 01598788-09999999CHOKE SOLENOID, TOP COWL
SERIAL 01598788-09999999 -
222647 DISCONNECT, KNIFT - CHOKE SOLENOID LEADDISCONNECT, KNIFT - CHOKE SOLENOID LEAD
-
310-20540 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
413-26992 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
526716A1 GROUND STRAP ASSEMBLY, SOLENOID TO ADAPTORGROUND STRAP ASSEMBLY, SOLENOID TO ADAPTOR
-
610-24773 SCREW, CHOKE SOLENOID TO TOP COWLSCREW, CHOKE SOLENOID TO TOP COWL
-
713-26991 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
832-26693A1 SLEEVE, CHOKE SOLENOID LEADSLEEVE, CHOKE SOLENOID LEAD
-
923-27783 S CLIP, CHOKE SOLENOID LEAD TO TOP COWLS CLIP, CHOKE SOLENOID LEAD TO TOP COWL
-
1090242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1125-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1222462 U LINK, CHOKE ROD TO CHOKE KNOBU LINK, CHOKE ROD TO CHOKE KNOB
-
1313-26996 LOCKWASHER, U LINK SCREWLOCKWASHER, U LINK SCREW
-
1410-69022 SCREW, U LINKM TO CHOKE KNOBSCREW, U LINKM TO CHOKE KNOB
-
1518-210711 COTTER PIN, U LINK TO CHOKE RODCOTTER PIN, U LINK TO CHOKE ROD
-
1638604 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
1638604 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
1638604 SHUTTER, CHOKE - CARBURETOR (UPPER)SHUTTER, CHOKE - CARBURETOR (UPPER)
-
1723-30438 BUSHING, NYLON - UPPER CHOKE SHUTTERBUSHING, NYLON - UPPER CHOKE SHUTTER
-
1813520 ROD, CHOKEROD, CHOKE
-
1831519 ROD, CHOKEROD, CHOKE
-
1917-25391 RIVET, CHOKE SHUTTER TO CHOKE RODRIVET, CHOKE SHUTTER TO CHOKE ROD
-
2016-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2112-30164 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
2211-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2324-28965 SPRING, TENSION - CHOKE RODSPRING, TENSION - CHOKE ROD
-
2410-28713 SCREW, RETAINER TO LOWER CARBURETORSCREW, RETAINER TO LOWER CARBURETOR
-
2527711 RETAINER, CHOKE ROD SPRING TO CARBURETORRETAINER, CHOKE ROD SPRING TO CARBURETOR
-
261333-2099 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
2753719A2 THROTTLE PICK-UP BRACKET ASSMEBLYTHROTTLE PICK-UP BRACKET ASSMEBLY
-
2810-29239 SCREW, THROTTLE PICK-UP BRAKCET MOUNTINGSCREW, THROTTLE PICK-UP BRAKCET MOUNTING
-
2927917 CLUSTER, THROTTLE LEVER ( UPPER CABURETOR )CLUSTER, THROTTLE LEVER ( UPPER CABURETOR )
-
301395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
3148315A4 PLUGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
3212-30164 WASHER, PLUNGER AND LINKWASHER, PLUNGER AND LINK
-
3318-26953 COTTER PIN, LINK TO UPPER CHOKE SHUTTERCOTTER PIN, LINK TO UPPER CHOKE SHUTTER
