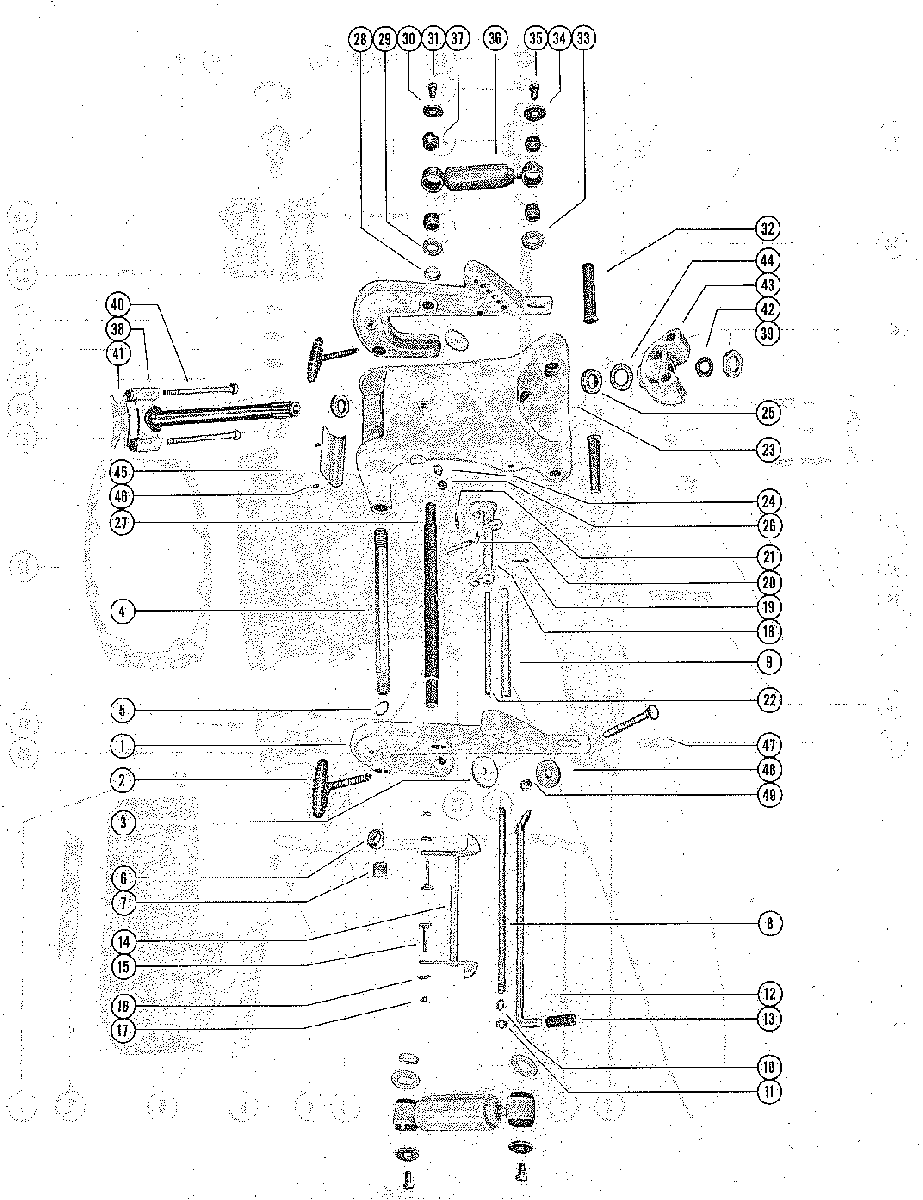

CLAMP AND SWIVEL BRACKET (MERC 500) для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
11440-1795A1 CLAMP BRACKET ASEMBLYCLAMP BRACKET ASEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT -CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT -CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKETSHIM, CLAMP BRACKET TO SWIVEL BRACKET
-
611-858869 NUT, TILT TUBENUT, TILT TUBE
-
753078 CAP, PALSTIC - TILT TUBECAP, PALSTIC - TILT TUBE
-
816-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
923-59624 SPACER, CLAMP B RACKET STUDSPACER, CLAMP B RACKET STUD
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-22053 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
1430200A1 TILT STOP LEVER ASSEMBLYTILT STOP LEVER ASSEMBLY
-
1510-28339 SCREW, TILT STOP LEVER ANCH ORSCREW, TILT STOP LEVER ANCH OR
-
1613-20846 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
1711-24652 NUT, LEVER ANCHOR SCREWNUT, LEVER ANCHOR SCREW
-
1826903A3 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
1918-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
2024-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
2117-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
2256349 SHAFT, REVERSE LOCK TO SWIVEL BRACKETSHAFT, REVERSE LOCK TO SWIVEL BRACKET
-
231444-1801A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
2422-69059 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
2526-32911 OIL SEALOIL SEAL
-
2619-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
2755-28415 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
2823-28024 SPACER, UPPER BUSHING TO CLAMP BRACKETSPACER, UPPER BUSHING TO CLAMP BRACKET
-
2912-28025 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
3012-28420 WASHER, UPPER BUSHING RETAINER (OUTER)WASHER, UPPER BUSHING RETAINER (OUTER)
-
3110-28449 BOLT, NYLOCK - UPPER SHOCK MOUNTING PINBOLT, NYLOCK - UPPER SHOCK MOUNTING PIN
-
3255-28413 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
3323-28032 SPACER, LOWER BUSHING TO SWIVEL BRACKETSPACER, LOWER BUSHING TO SWIVEL BRACKET
-
3412-28420 WASHER, LOWER BUSHING RETAINER (OUTER)WASHER, LOWER BUSHING RETAINER (OUTER)
-
3510-28449 BOLT, NYLOCK - LOWER SHOCK MOUNTING PINBOLT, NYLOCK - LOWER SHOCK MOUNTING PIN
-
3655-28054 SHOCK ABSORBERSHOCK ABSORBER
-
3723-28055 BUSHING, RUBBER - SHOCK ABSORBERBUSHING, RUBBER - SHOCK ABSORBER
-
3817-28418A4 SWIVEL PIN AND TOP YOKE ASSEMBLYSWIVEL PIN AND TOP YOKE ASSEMBLY
-
3911-71956 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
4010-33986 BOLT, UPPER MOUNT TO SWIVEL PINBOLT, UPPER MOUNT TO SWIVEL PIN
-
4130711 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
4212-26837 WASHER, LOWER - SWIVEL PINWASHER, LOWER - SWIVEL PIN
-
4330462 BOTTOM YOKEBOTTOM YOKE
-
4412-25176 WASHER, SWIVEL PIN TO BOTTOM YOKEWASHER, SWIVEL PIN TO BOTTOM YOKE
-
4538-56267 SERIAL PLATESERIAL PLATE
-
4610-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
4710-68298 BOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOMBOLT, CARRIAGE - CLAMP BRACKET TO BOAT TRANSOM
-
4812-46765 WASHER, CARRIAGE BOLTWASHER, CARRIAGE BOLT
-
4911-82670912 NUT, CARRIAGE BOLTNUT, CARRIAGE BOLT
