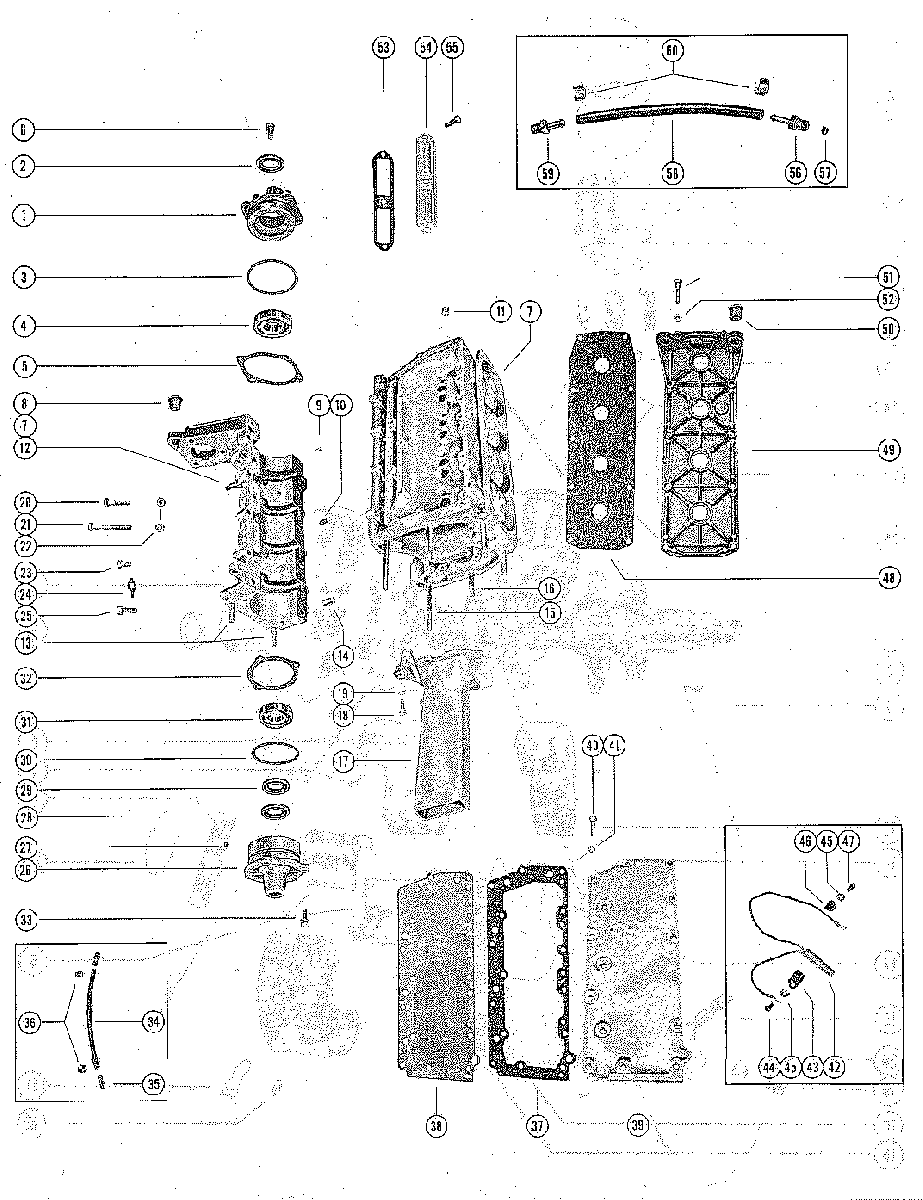

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 500 1421113 THRU 1639472
-
№АртикулНазвание
-
11100-339A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
226-41953 OIL SEALOIL SEAL
-
325-20081 "O" RING, UPPER END CAP"O" RING, UPPER END CAP
-
430-63742T BALL BEARING, UPPER END CAPBALL BEARING, UPPER END CAP
-
515-20082 SHIM, UPPER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)SHIM, UPPER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
-
610-29198 SCREW, UPPER END CAP MOUNTINGSCREW, UPPER END CAP MOUNTING
-
7831-2414A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
7831-2414A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
823-26348 BUSHING, CRANKCASEBUSHING, CRANKCASE
-
917-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
-
1017-20323 DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
-
1122-328022 PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLESPLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
-
1216-21831 STUD, CARBURETOR MOUNTING (1 1/4")STUD, CARBURETOR MOUNTING (1 1/4")
-
1316-33111 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
-
1417-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
1516-8M0034463 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
-
1616-29989 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
-
1736157 EXTENSION, EXHAUST - CYLINDER BLOCKEXTENSION, EXHAUST - CYLINDER BLOCK
-
1810-31096 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCKSCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
-
1810-31096 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCKSCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
-
1810-32079 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCKSCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
-
1810-32079 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCKSCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
-
1912-20028 WASHER, EXHAUST EXTENSION FASTENING SCREWWASHER, EXHAUST EXTENSION FASTENING SCREW
-
2010-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
2110-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
-
2211-29250 NUT, CRANKCASE FASTENING SCREWNUT, CRANKCASE FASTENING SCREW
-
2310-20089 SCREW, MAIN BEARING LOCKINGSCREW, MAIN BEARING LOCKING
-
2310-98260 SCREW, MAIN BEARING LOCKINGSCREW, MAIN BEARING LOCKING
-
2414-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
2510-20359 SCREW, CENTER MAIN BEARING LOCKINGSCREW, CENTER MAIN BEARING LOCKING
-
261102-4181A3 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2721-28481A1 CHECK VALVE ASSEMBLY, LOWER END CAPCHECK VALVE ASSEMBLY, LOWER END CAP
-
2826-29477 OIL SEAL, LOWEROIL SEAL, LOWER
-
2926-41953 OIL SEAL, UPPEROIL SEAL, UPPER
-
3025-20081 "O" RING, LOWER END CAP"O" RING, LOWER END CAP
-
3130-63742T BALL BEARING, LOWER END CAPBALL BEARING, LOWER END CAP
-
3215-20085 SHIM, LOWER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)SHIM, LOWER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
-
3310-29198 SCREW. LOWER END CAP MOUNTINGSCREW. LOWER END CAP MOUNTING
-
3432-8M0108355 TUBE, BALANCE - MAIN BEARINGTUBE, BALANCE - MAIN BEARING
-
3522-291112 CONNECTOR, BALANCE TUBE TO CYLINDER BLOCKCONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
-
3654-20386 CLAMP, BALANCE TUBE TO CONNECTORSCLAMP, BALANCE TUBE TO CONNECTORS
-
3727-26923 GASKET, CYLINDER BLOCK TO MANIFOLD PLATEGASKET, CYLINDER BLOCK TO MANIFOLD PLATE
-
3826922 PLATE, EXHAUST MANIFOLDPLATE, EXHAUST MANIFOLD
-
3727-26923 GASKET, EXHAUST PLATE TO EXHAUST COVERGASKET, EXHAUST PLATE TO EXHAUST COVER
-
3928240 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
4010-28668 SCREW, MANIFOLD COVER TO CYLINDER BLOCKSCREW, MANIFOLD COVER TO CYLINDER BLOCK
-
4010-28666 SCREW, MAINFOLD COVER AND HIGH TENSION LEAD MOUNTINGSCREW, MAINFOLD COVER AND HIGH TENSION LEAD MOUNTING
-
4112-20028 WASHER, MANIFOLD COVER AND HIGH TENSION LEAD CLIP SCREWSWASHER, MANIFOLD COVER AND HIGH TENSION LEAD CLIP SCREWS
-
4258124A1 SWITCH, MERCURY - EXHAUST MANIFOLD COVERSWITCH, MERCURY - EXHAUST MANIFOLD COVER
-
4354-22875 CLAMP, MERCURY SWITCH TO MANIFOLD COVERCLAMP, MERCURY SWITCH TO MANIFOLD COVER
-
4410-20401 SCREW, MERCURY SWITCH CLAMP FASTENINGSCREW, MERCURY SWITCH CLAMP FASTENING
-
458M0084613 "D" WASHER, CLAMP AND CLIP FASTENING SCREW"D" WASHER, CLAMP AND CLIP FASTENING SCREW
-
4654-25231 CLIP, MERCURY SWITCH LEAD WIRE TO MAGNETOCLIP, MERCURY SWITCH LEAD WIRE TO MAGNETO
-
4710-20401 SCREW, LEAD WIRE CLIP FASTENINGSCREW, LEAD WIRE CLIP FASTENING
-
4827-22333 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
491000-1A1 CYLINDER BLOCK CCOVER ASSEMBLYCYLINDER BLOCK CCOVER ASSEMBLY
-
5023-26348 BUSHING, CYLINDER BLOCK COVERBUSHING, CYLINDER BLOCK COVER
-
5023-26348 BUSHING, CYLINDER BLOCK COVERBUSHING, CYLINDER BLOCK COVER
-
5110-20653 SCREW, CYLINDER BLOCK COVER MOUNTINGSCREW, CYLINDER BLOCK COVER MOUNTING
-
5211-24652 NUT, COVER MOUNTING SCREWNUT, COVER MOUNTING SCREW
-
5327-279361 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
5427935 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
5510-20540 SCREW, TRANSFER PORT COVER MOUNTINGSCREW, TRANSFER PORT COVER MOUNTING
-
5622-62365A1 CHECK VALVE ASSEMBLY, BLLD HOSE (UPPER)CHECK VALVE ASSEMBLY, BLLD HOSE (UPPER)
-
5721-28481A1 CHECK VALVE ASSEMBLY, BLLED HOSE VALVECHECK VALVE ASSEMBLY, BLLED HOSE VALVE
-
5832-9912688 HOSE, CYLINDER BLEED (6 1/2")HOSE, CYLINDER BLEED (6 1/2")
-
5922-67902 CONNECTOR, CYLINDER BLEED HOSE (LOWER)CONNECTOR, CYLINDER BLEED HOSE (LOWER)
-
6054-20387 CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTORCLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
