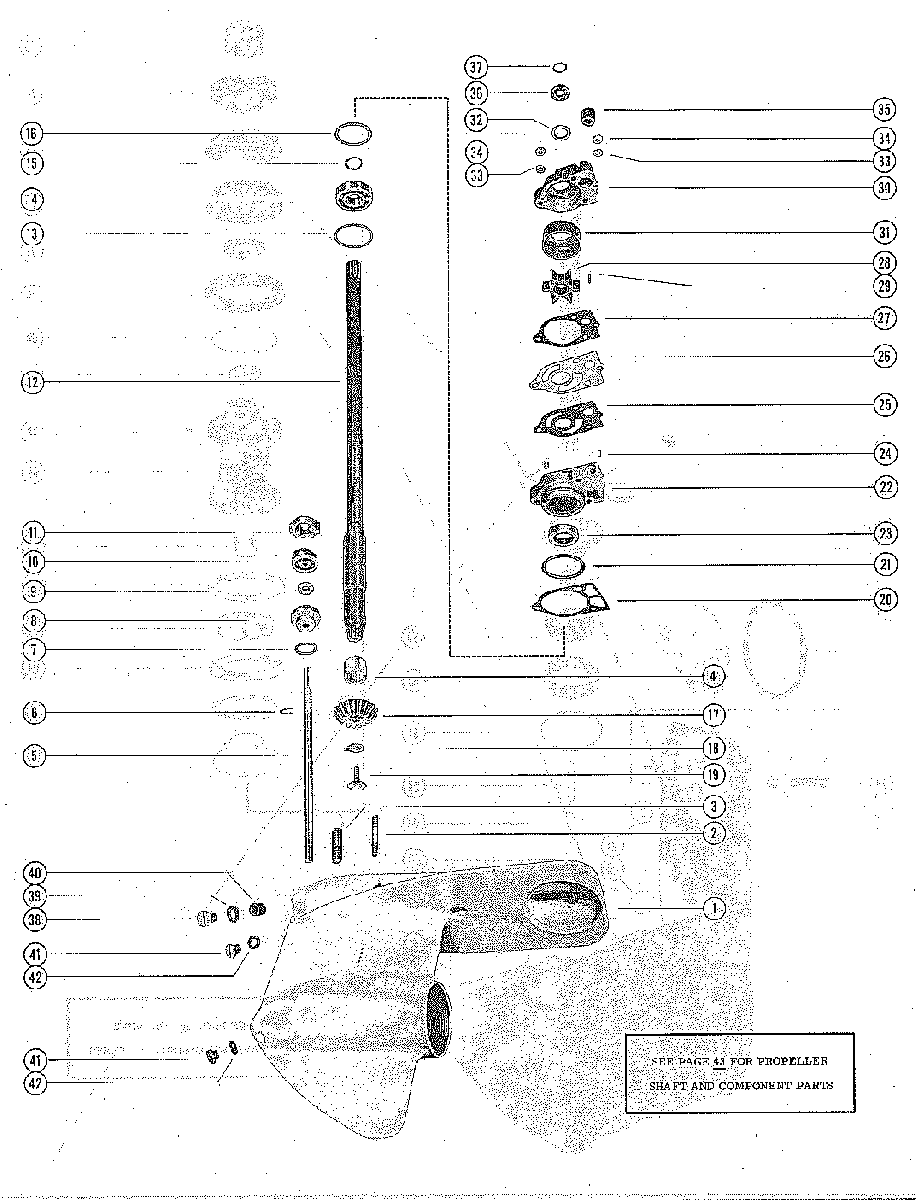

GEAR HOUSING ASSEMBLY, COMPLETE(MERC 500M-2 & 500E-2) (P. 1) для Mercury - 500 1421113 THRU 1639472

№

Артикул

Название
-

1626-2040A3 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) -SEE NOTE BELOW

GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) -SEE NOTE BELOW

0 ₽
1

1626-2040A1 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY

0 ₽
2

16-32027 STUD,WATER PUMP BODY AND BASE TO GEAR HOUSING

STUD,WATER PUMP BODY AND BASE TO GEAR HOUSING

0 ₽
3

16-32017 STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING

STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING

0 ₽
4

31-62091T BEARING, ROLLER - DRIVE SHAFT

BEARING, ROLLER - DRIVE SHAFT

6 670 ₽
5

56622A1 SHAFT,SHIFT - LOWER

SHAFT,SHIFT - LOWER

7 300 ₽
6

53-29641 CLIP,RETAINING - SHIFT SHAFT

CLIP,RETAINING - SHIFT SHAFT

140 ₽
7

25-25439 "O"RING,SHIFT SHAFT BUSHING

"O"RING,SHIFT SHAFT BUSHING

190 ₽
8

23-46284A1 BUSHING ASSEMBLY,SHIFT SHAFT

BUSHING ASSEMBLY,SHIFT SHAFT

6 410 ₽
9

26-892361 OIL SEAL,SHIFT SHAF BUSHING

OIL SEAL,SHIFT SHAF BUSHING

1 450 ₽
10

52918 CAM,LOWER - REVERSE LOCKING

CAM,LOWER - REVERSE LOCKING

0 ₽
11

52919 CAM,UPPER - REVERSE LOCKING

CAM,UPPER - REVERSE LOCKING

0 ₽
12

45-38466 DRIVE SHAFT(STANDARD)

DRIVE SHAFT(STANDARD)

0 ₽
13

15-20929A1 SHIM,BEARING TO GEAR HOUSING

SHIM,BEARING TO GEAR HOUSING

0 ₽
14

30-72961 BEARING,BALL - DRIVE SHAFT

BEARING,BALL - DRIVE SHAFT

2 680 ₽
15

53-29116 RING,SNAP - BALL BEARING RETAINING

RING,SNAP - BALL BEARING RETAINING

0 ₽
16

15-20929A1 SHIM,BEARING TO WATER PUMP BASE

SHIM,BEARING TO WATER PUMP BASE

0 ₽
17

43-20834 GEAR,PINION - DRIVE SHAFT

GEAR,PINION - DRIVE SHAFT

0 ₽
18

14-29163 TAB WATER,PINION GEAR FASTENING SCREW

TAB WATER,PINION GEAR FASTENING SCREW

0 ₽
19

10-20925 SCREW, PINION GEAR TO DRIVE SHAFT

SCREW, PINION GEAR TO DRIVE SHAFT

0 ₽
20

27-32771 GASKET,WATER PUMP BASE TO GEAR HOUSING

GASKET,WATER PUMP BASE TO GEAR HOUSING

230 ₽
21

25-26855 "O"RING,WATER PUMP BASE

"O"RING,WATER PUMP BASE

150 ₽
22

46-39531A1 WATER PUMP BASE ASSEMBLY

WATER PUMP BASE ASSEMBLY

5 090 ₽
23

26-90562 OIL SEAL,WATER PUMP BASE

OIL SEAL,WATER PUMP BASE

3 370 ₽
24

17-29596T DOWEL PIN,WATER PUMP BASE TO WATER PUMP BODY

DOWEL PIN,WATER PUMP BASE TO WATER PUMP BODY

1 190 ₽
25

27-19553 GASKET,LOWER - WATER PUMP BASE TO FACE PLATE

GASKET,LOWER - WATER PUMP BASE TO FACE PLATE

220 ₽
26

32768 PLATE,FACE - WATER PUMP BASE TO WATER PUMP BODY

PLATE,FACE - WATER PUMP BASE TO WATER PUMP BODY

290 ₽
27

27-19551 GASKET,UPPER - FACE PLATE TO WATER PUMP BODY

GASKET,UPPER - FACE PLATE TO WATER PUMP BODY

180 ₽
28

47-89983T IMPELLER,WATER PUMP

IMPELLER,WATER PUMP

4 170 ₽
29

28-8M0032837 PIN,IMPELLER DRIVE

PIN,IMPELLER DRIVE

490 ₽
30

46-60366Q1 WATER PUMP BODY ASSEMBLY

WATER PUMP BODY ASSEMBLY

9 250 ₽
31

32001 INSERT,WATER PUMP BODY

INSERT,WATER PUMP BODY

0 ₽
32

26-32121 OIL SEAL,WATER PUMP BODY

OIL SEAL,WATER PUMP BODY

1 940 ₽
33

13-26992 LOCKWASHER,WATER PUMP BODY AND BASE STUDS

LOCKWASHER,WATER PUMP BODY AND BASE STUDS

70 ₽
34

11-29598 NUT,WATER PUMP BODY AND BASE FASTENING STUDS

NUT,WATER PUMP BODY AND BASE FASTENING STUDS

150 ₽
35

26-25192 SEAL,WATER PUMP BODY TO WATER INLET TUBE

SEAL,WATER PUMP BODY TO WATER INLET TUBE

0 ₽
36

25-20273 RING,RUBBER - CENTRIFUGAL SLINGER(DRIVE SHAFT)

RING,RUBBER - CENTRIFUGAL SLINGER(DRIVE SHAFT)

200 ₽
37

25-29619 "O"RING,UPPER - DRIVE SHAFT

"O"RING,UPPER - DRIVE SHAFT

170 ₽
38

10-29608 SCREW,GEAR HOUSING FLUSHING HOLE

SCREW,GEAR HOUSING FLUSHING HOLE

0 ₽
39

27-29586 GASKET,GEAR HOUSING FLUSHING HOLE SCREW

GASKET,GEAR HOUSING FLUSHING HOLE SCREW

90 ₽
40

26-29612 SEAL,GEAR HOUSING FLUSHING HOLE

SEAL,GEAR HOUSING FLUSHING HOLE

280 ₽
41

10-79953Q04 SCREW,GREASE FILLER AND VENT HOLE

SCREW,GREASE FILLER AND VENT HOLE

1 000 ₽
42

12-191833 WASHER,GREASE FILLER AND VENT HOLE SCREW

WASHER,GREASE FILLER AND VENT HOLE SCREW

60 ₽
