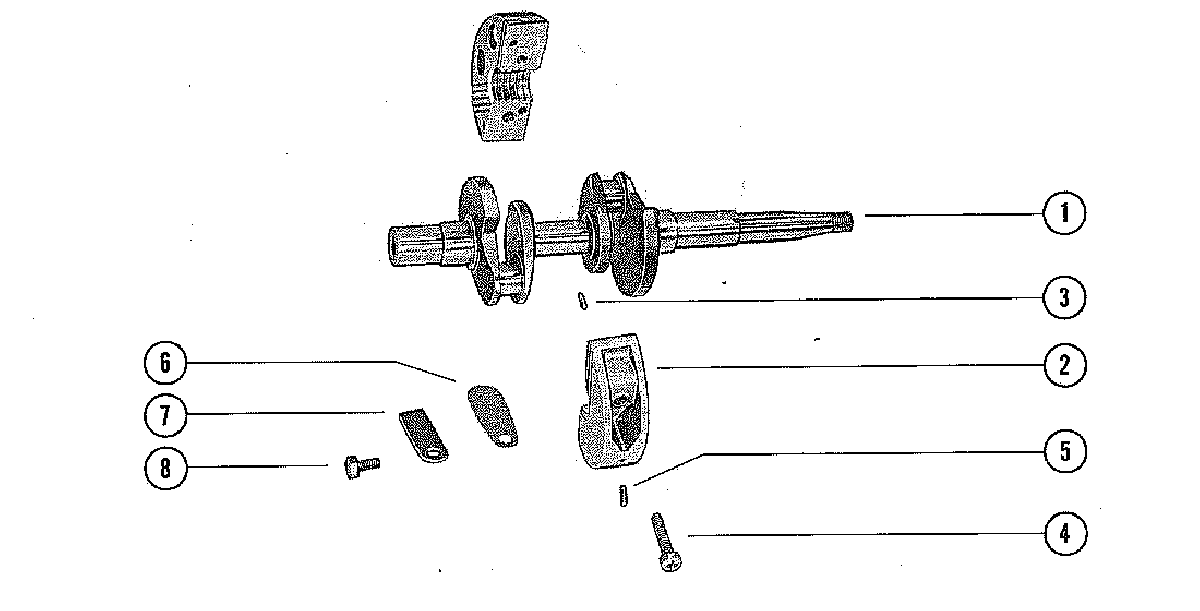

CRANKSHAFT AND MAIN BEARING ASSEMBLY для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
1419-1805 CRANKSHAFT
SERIAL 01583852-09999999CRANKSHAFT
SERIAL 01583852-09999999 -
1419-2223 CRANKSHAFT
SERIAL 00000000-01610265CRANKSHAFT
SERIAL 00000000-01610265 -
2529-2721A3 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
317-20032 PIN, DOWEL-MAIN BEARINGPIN, DOWEL-MAIN BEARING
-
410-68918 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
517-20032 PIN, DOWEL-MAIN BEARINGPIN, DOWEL-MAIN BEARING
-
634-23087A1 REED SET, MATCHED-MAIN BEARINGREED SET, MATCHED-MAIN BEARING
-
734-21721 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
810-27304 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
