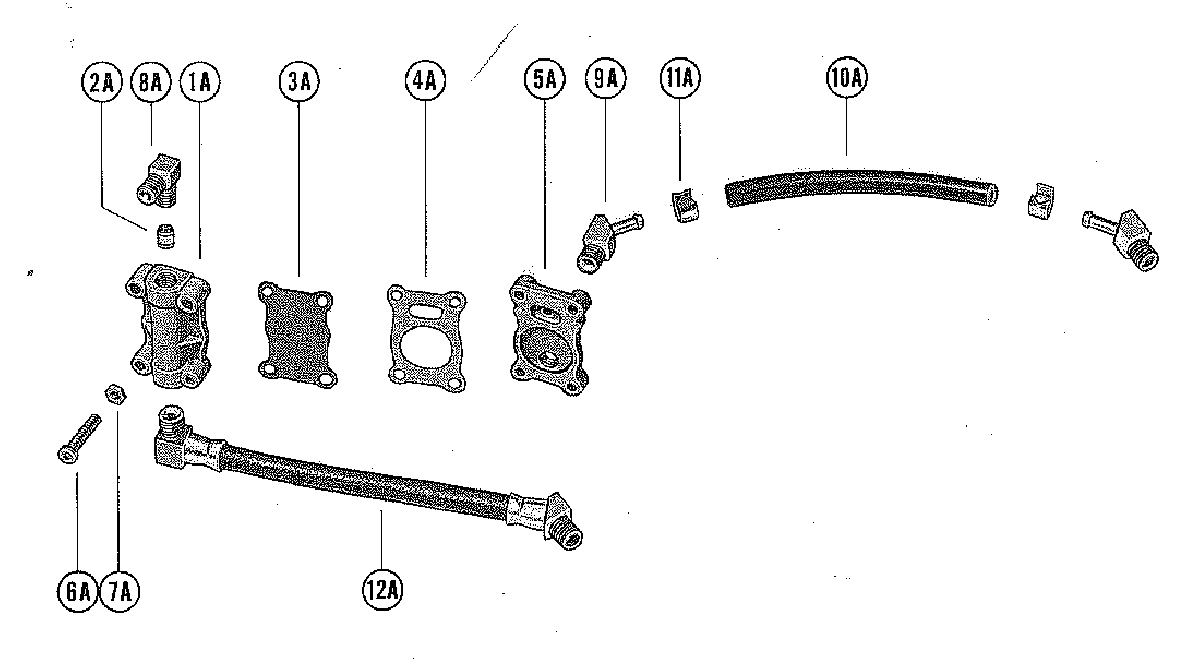

FUEL PUMP ASSEMBLY (SERIAL NO. 1582403 AND ABOVE) для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
1A39082A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
2A21-22974A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
3A31503A1 DIAPHRAGM, FUEL PUMP TO GASKETDIAPHRAGM, FUEL PUMP TO GASKET
-
4A27-30651 GASKET, FUEL PUMP DIAPHRAGM TO SPACERGASKET, FUEL PUMP DIAPHRAGM TO SPACER
-
5A34571 SPACER, FUEL PUMPSPACER, FUEL PUMP
-
6A10-23702 SCREW, SPACER TO FUEL PUMPSCREW, SPACER TO FUEL PUMP
-
7A11-68219 NUT, SPACER TO FUEL PUMP SCREWNUT, SPACER TO FUEL PUMP SCREW
-
8A22-34577 ELBOW (90), FUEL PUMP TO CARBURETORELBOW (90), FUEL PUMP TO CARBURETOR
-
9A22-34579 ELBOW (45), SPACER TO PRESSURE HOSE TO BLOCKELBOW (45), SPACER TO PRESSURE HOSE TO BLOCK
-
10A32-9912688 HOSE, PRESSURE-CYLINDER BLOCK TO FUEL PUMPHOSE, PRESSURE-CYLINDER BLOCK TO FUEL PUMP
-
11A54-20387 CLAMP, PRESSURE HOSE TO 45 ELBOWSCLAMP, PRESSURE HOSE TO 45 ELBOWS
-
12A32-34572 FUEL LINE, FUEL PUMP TO ADAPTOR (5-1/2")FUEL LINE, FUEL PUMP TO ADAPTOR (5-1/2")
-
1132454 ADAPTOR, CHECK UNIT (FUEL LINE) - SEE UPPER PHOTOADAPTOR, CHECK UNIT (FUEL LINE) - SEE UPPER PHOTO
-
1210-32455 SCREW, ADAPTOR TO BOTTOM COWL (1-1/2") - SEE UPPER PHOTOSCREW, ADAPTOR TO BOTTOM COWL (1-1/2") - SEE UPPER PHOTO
-
1324-28357 SPRING, ADAPTOR TO BOTTOM COWL SCREW - SEE UPPER PHOTOSPRING, ADAPTOR TO BOTTOM COWL SCREW - SEE UPPER PHOTO
-
1411-20110 NUT, ADAPTOR TO BOTTOM COWL SCREW - SEE UPPER PHOTONUT, ADAPTOR TO BOTTOM COWL SCREW - SEE UPPER PHOTO
