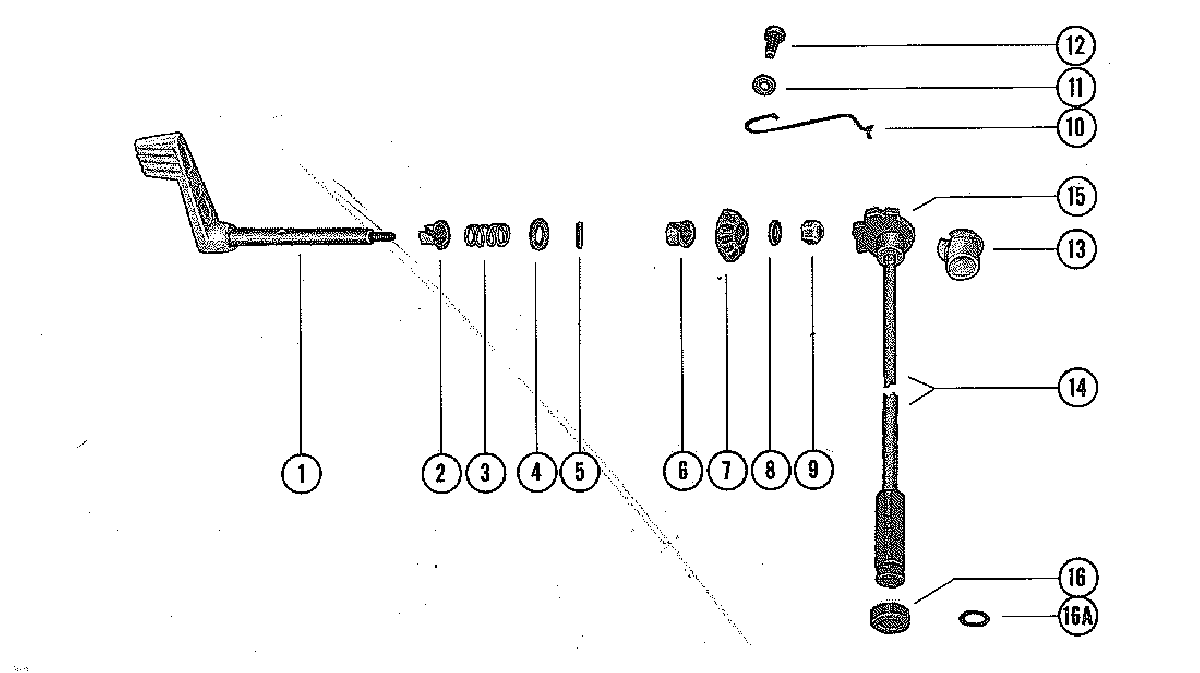

SHIFT CONTROL LINKAGE для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
130747 HANDLE, SHIFT CONTROLHANDLE, SHIFT CONTROL
-
223-30678 BUSHING, NYLON-SHIFT CONTROL HANDLEBUSHING, NYLON-SHIFT CONTROL HANDLE
-
324-30817 SPRING, TENSION-SHIFT CONTROL HANDLESPRING, TENSION-SHIFT CONTROL HANDLE
-
412-20086 WASHER, TENSION SPRING TO HANDLEWASHER, TENSION SPRING TO HANDLE
-
517-25905 PINE, ROLL-SPRING AND WASHER TO HANDLEPINE, ROLL-SPRING AND WASHER TO HANDLE
-
510-28668 PIN, DOWEL-TENSION SPRING TO HANDLEPIN, DOWEL-TENSION SPRING TO HANDLE
-
623-30678 BUSHING, NYLON-SHIFT CONTROL HANDLEBUSHING, NYLON-SHIFT CONTROL HANDLE
-
743-30802 GEAR, HORIZONTAL-SHIFT CONTROL HANDLEGEAR, HORIZONTAL-SHIFT CONTROL HANDLE
-
812-29245 WASHER, SHIFT CONTROL HANDLEWASHER, SHIFT CONTROL HANDLE
-
911-8267089 NUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLENUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLE
-
1024-30816 SPRING, DETENT-SECTOR GEARSPRING, DETENT-SECTOR GEAR
-
1112-29245 WASHER, DETENT SPRING SCREW
SERIAL 00000000-01552144WASHER, DETENT SPRING SCREW
SERIAL 00000000-01552144 -
1210-55336 SCREW, DETENT SPRING TO BOTTOM COWL
SERIAL 00000000-01552144SCREW, DETENT SPRING TO BOTTOM COWL
SERIAL 00000000-01552144 -
1113-21272 LOCKWASHER, DETENT SPRING SCREW
SERIAL 01582403-09999999LOCKWASHER, DETENT SPRING SCREW
SERIAL 01582403-09999999 -
1210-28639 SCREW, DETENT SPRING TO BOTTOM COWL
SERIAL 01582403-09999999SCREW, DETENT SPRING TO BOTTOM COWL
SERIAL 01582403-09999999 -
1323-30677 BUSHING, NYLON-SHIFT CONTROL SHAFTBUSHING, NYLON-SHIFT CONTROL SHAFT
-
1454640A1 SHIFT CONTROL SHAFT ASSEMBLY (SEE NOTE BELOW)SHIFT CONTROL SHAFT ASSEMBLY (SEE NOTE BELOW)
-
1543-32453 GEAR, SECTOR-SHIFT CONTROL SHAFT(BRONZE)GEAR, SECTOR-SHIFT CONTROL SHAFT(BRONZE)
-
1454640A1 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 00000(3)-01526318SHIFT CONTROL SHAFT ASSEMBLY
SERIAL 00000(3)-01526318 -
1543-32453 GEAR, SECTOR-SHIFT CONTROL SHAFT (ALUMINUM)
SERIAL 00000(3)-01526318GEAR, SECTOR-SHIFT CONTROL SHAFT (ALUMINUM)
SERIAL 00000(3)-01526318 -
1454640A1 SHIFT CONTROL SHAFT ASSEMBLY
SERIAL )1526319-01877455SHIFT CONTROL SHAFT ASSEMBLY
SERIAL )1526319-01877455 -
1543-32453 GEAR, SECTOR-SHIFT CONTROL SHAFT(ALUMINUM)
SERIAL )1526319-01877455GEAR, SECTOR-SHIFT CONTROL SHAFT(ALUMINUM)
SERIAL )1526319-01877455 -
1625-26630 RING, RUBBER-LOWER SHIFT CONTROL SHAFT
SERIAL 00000000-01877455RING, RUBBER-LOWER SHIFT CONTROL SHAFT
SERIAL 00000000-01877455 -
1445251A2 SHIFT CONTROL ASSEMBLY
SERIAL 01877456-09999999SHIFT CONTROL ASSEMBLY
SERIAL 01877456-09999999 -
1543-32453 GEAR, SECTOR-SHIFT CONTROL SHAFT (ALUMINUM)
SERIAL 01877456-09999999GEAR, SECTOR-SHIFT CONTROL SHAFT (ALUMINUM)
SERIAL 01877456-09999999 -
16A25-38933 "O" RING, LOWER SHIFT CONTROL SHAFT
SERIAL 01877456-09999999"O" RING, LOWER SHIFT CONTROL SHAFT
SERIAL 01877456-09999999
