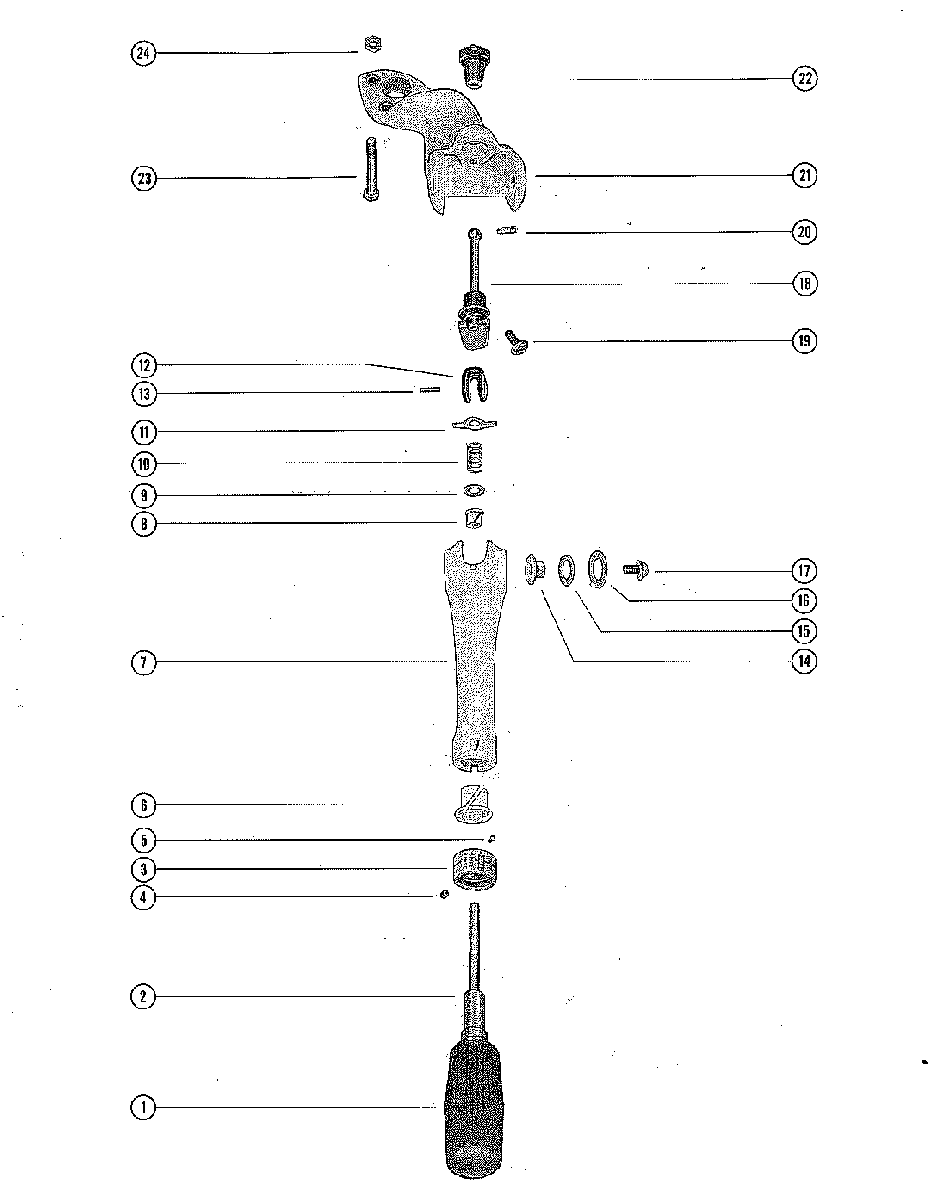

STEERING HANDLE ASSEMBLY для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
-30660A1 STEERING HANDLE ASSEMBLY, COMPLETESTEERING HANDLE ASSEMBLY, COMPLETE
-
127763 GRIP, RUBBER-SHEERING HANDLE BODYGRIP, RUBBER-SHEERING HANDLE BODY
-
231000 BODY AND SHAFT, STEERING HANDLEBODY AND SHAFT, STEERING HANDLE
-
331001 INDICATOR, SPEED/SHIFT-STEERING HANDLEINDICATOR, SPEED/SHIFT-STEERING HANDLE
-
410-31002 SCREW, SET-SPEED AND SHIFT INDICATORSCREW, SET-SPEED AND SHIFT INDICATOR
-
510-22290 SCREW, INDICATOR TO STEERING HANDLE BODYSCREW, INDICATOR TO STEERING HANDLE BODY
-
623-30677 BUSHING, NYLON-STEERING HANDLE TO BODYBUSHING, NYLON-STEERING HANDLE TO BODY
-
730660 HANDLE, STEERING-THROTTLE CONTROLHANDLE, STEERING-THROTTLE CONTROL
-
823-28100 BUSHING, NYLON-STEERING HANDLEBUSHING, NYLON-STEERING HANDLE
-
912-20084 WASHER, STEERING HANDLE SHAFTWASHER, STEERING HANDLE SHAFT
-
1024-26703 SPRING, STEERING HANDLE SHAFTSPRING, STEERING HANDLE SHAFT
-
1114-26706 TAB WASHER, YOKE PIN HOLDINGTAB WASHER, YOKE PIN HOLDING
-
1230235 YOKE, STEERING HANDLE SHAFTYOKE, STEERING HANDLE SHAFT
-
1317-26862 PIN, YOKE TO STEERING HANDLE SHAFTPIN, YOKE TO STEERING HANDLE SHAFT
-
-35908A2 STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL 00000000-01677523STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL 00000000-01677523 -
127763 GRIP, RUBBER-STEERING HANDLE BODYGRIP, RUBBER-STEERING HANDLE BODY
-
235909 BODY AND SHAFT, STEERING HANDLEBODY AND SHAFT, STEERING HANDLE
-
331001 INDICATOR, SPEED/SHIFT-STEERING HANDLEINDICATOR, SPEED/SHIFT-STEERING HANDLE
-
410-31002 SCREW, SET-SPEED AND SHIFT INDICATORSCREW, SET-SPEED AND SHIFT INDICATOR
-
510-22290 SCREW, INDICATOR TO STEERING HANDLE BODYSCREW, INDICATOR TO STEERING HANDLE BODY
-
623-30677 BUSHING, NYLON-STEERING HANDLE TO BODYBUSHING, NYLON-STEERING HANDLE TO BODY
-
735908A1 HANDLE, STEERING-THROTTLE CONTROLHANDLE, STEERING-THROTTLE CONTROL
-
823-28100 BUSHING, NYLON-STEERING HANDLEBUSHING, NYLON-STEERING HANDLE
-
912-20084 WASHER, STEERING HANDLE SHAFTWASHER, STEERING HANDLE SHAFT
-
1024-26703 SPRING, STEERING HANDLE SHAFTSPRING, STEERING HANDLE SHAFT
-
1114-26706 TAB WASHER, YOKE PIN HOLDINGTAB WASHER, YOKE PIN HOLDING
-
1230235 YOKE, STEERING HANDLE SHAFTYOKE, STEERING HANDLE SHAFT
-
1317-26862 PIN, YOKE TO STEERING HANDLE SHAFTPIN, YOKE TO STEERING HANDLE SHAFT
-
1426711 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1515-26707 SHIM, STEERING HANDLE PIVOT TO BRACKETSHIM, STEERING HANDLE PIVOT TO BRACKET
-
1615-30905 SHIM, STEERING HANDLE TO ARM BRACKETSHIM, STEERING HANDLE TO ARM BRACKET
-
1710-28592 SCREW, STEERING HANDLE TO ARM BRACKETSCREW, STEERING HANDLE TO ARM BRACKET
-
1831202A2 THROTTLE CONTROL SHAFT ASSEMBLY SEE NOTE BELOW
SERIAL 01413528-09999999THROTTLE CONTROL SHAFT ASSEMBLY SEE NOTE BELOW
SERIAL 01413528-09999999 -
1831202A1 THROTTLE CONTROL SHAFT ASSEMBLY
SERIAL 00000000-01413529THROTTLE CONTROL SHAFT ASSEMBLY
SERIAL 00000000-01413529 -
1910-96138 SCREW, THROTTLE CONTROL SHAFT TO BRACKETSCREW, THROTTLE CONTROL SHAFT TO BRACKET
-
2017-30904 PIN, THROTTLE CONTROL SHAFTPIN, THROTTLE CONTROL SHAFT
Производитель Mercury-Mercruiser -
2130725 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
2230970 BOOT, RUBBER-THROTTLE CONTROL SHAFTBOOT, RUBBER-THROTTLE CONTROL SHAFT
-
2310-30679 SCREW, STEERING ARM BRACKET TO SADDLESCREW, STEERING ARM BRACKET TO SADDLE
-
2411-24652 NUT, STEERING ARM BRACKET FASTENING SCREWNUT, STEERING ARM BRACKET FASTENING SCREW
