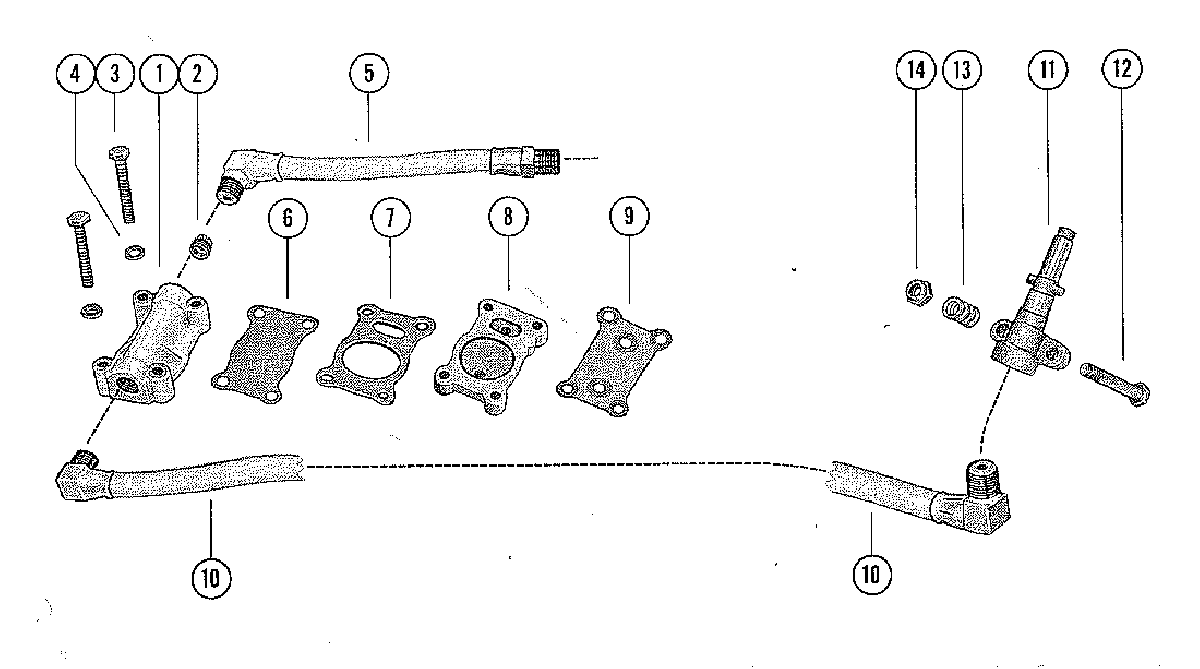

FUEL PUMP ASSEMBLY (SERIAL NO. 1552144 AND BELOW) для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
139082A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-22974A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
310-73656 SCREW, FUEL PUMP TO CYLINDER BLOCKSCREW, FUEL PUMP TO CYLINDER BLOCK
-
412-26014 WASHER, FUEL PUMP FASTENING SCREWWASHER, FUEL PUMP FASTENING SCREW
-
532-30850 FUEL LINE, FUEL PUMP TO CARBURETOR (5")FUEL LINE, FUEL PUMP TO CARBURETOR (5")
-
532-32230 FUEL LINE, FUEL PUMP TO CARBURETOR (4-3/4")FUEL LINE, FUEL PUMP TO CARBURETOR (4-3/4")
-
631503A1 DIAPHRAGM, FUEL PUMP TO GASKETDIAPHRAGM, FUEL PUMP TO GASKET
-
727-30651 GASKET, FUEL PUMP TO SPACERGASKET, FUEL PUMP TO SPACER
-
831510 SPACER, FUEL PUMP TO CYLINDER BLOCKSPACER, FUEL PUMP TO CYLINDER BLOCK
-
831510 SPACER, FUEL PUMP TO CYLINDER BLOCKSPACER, FUEL PUMP TO CYLINDER BLOCK
-
927-31509 GASEKT, FUEL PUMP SPACER TO CYLINDER BLOCKGASEKT, FUEL PUMP SPACER TO CYLINDER BLOCK
-
1032-32617 FUEL LINE, FUEL PUMP TO ADAPTOR (9-3/8")FUEL LINE, FUEL PUMP TO ADAPTOR (9-3/8")
-
--32454 ADAPTOR, CHECK UNIT (FUEL LINE)-N.L.A.-ORDER 32454ADAPTOR, CHECK UNIT (FUEL LINE)-N.L.A.-ORDER 32454
-
--10-29283 SCREW, ADAPTOR TO BOTTOM COWL (1-1/4")SCREW, ADAPTOR TO BOTTOM COWL (1-1/4")
-
1132454 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
1210-32455 SCREW, ADAPTOR TO BOTTOM COWL (1-1/2")SCREW, ADAPTOR TO BOTTOM COWL (1-1/2")
-
1324-28357 SPRING, ADAPTOR FASTENING SCREWSPRING, ADAPTOR FASTENING SCREW
-
1411-20110 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY (SERIAL NO. 1526209 AND ABOVE)
- CARBURETOR ASSEMBLY (THRU SERIAL NO. 1526208)
- CARBURETOR CHOKE LINKAGE ( SERIAL NO. 1526209 AND ABOVE)
- CARBURETOR CHOKE LINKAGE (SERIAL NO. 1526208 AND BELOW)
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL AND STATOR PLATE ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
- • FUEL PUMP ASSEMBLY (SERIAL NO. 1552144 AND BELOW)
- FUEL PUMP ASSEMBLY (SERIAL NO. 1582403 AND ABOVE)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
- TOP COWL AND STARTER ASSEMBLY (MERC 60-3 AND MERC 60-4)
