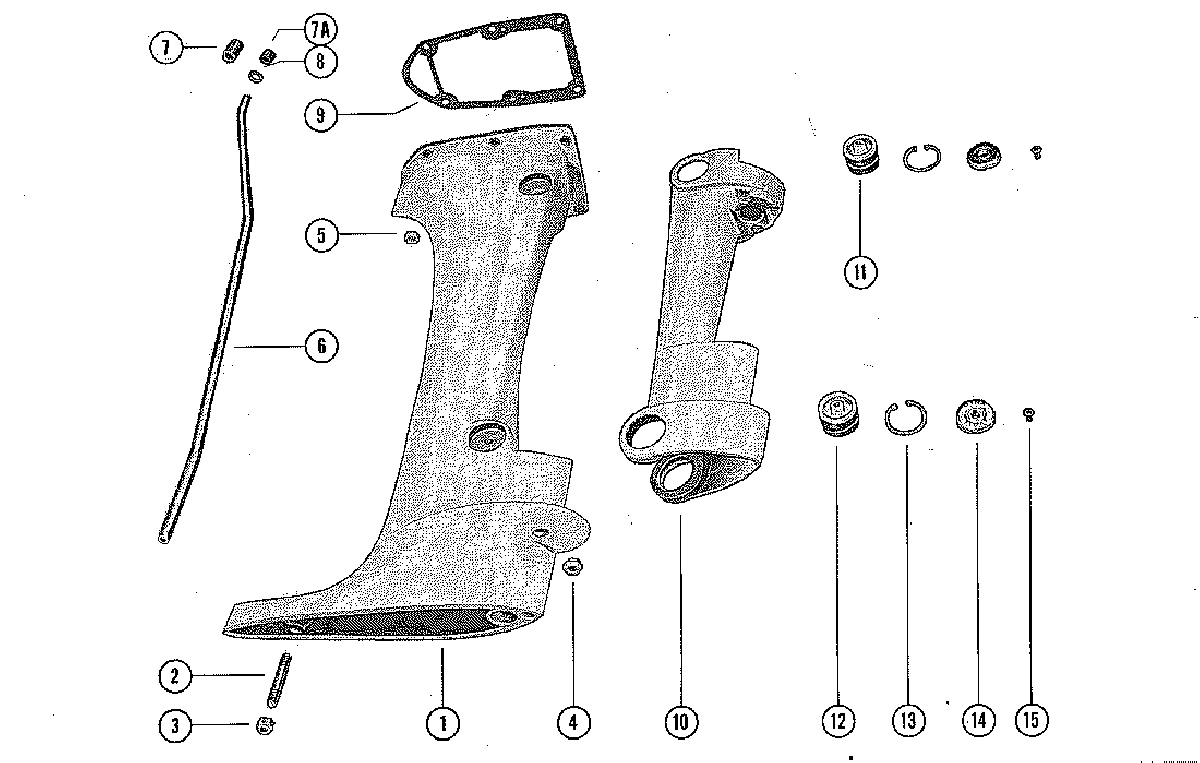

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
11538-1776A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
11538-1937A1 DRIVE SHAFT HOUSING ASSEMBLY
SERIAL 01552144-09999999DRIVE SHAFT HOUSING ASSEMBLY
SERIAL 01552144-09999999 -
216-68201 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
SERIAL 01552144-09999999STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
SERIAL 01552144-09999999 -
11538-2243A1 DRIVE SHAFT HOUSING ASSEMBLY
SERIAL 00000000-01582403DRIVE SHAFT HOUSING ASSEMBLY
SERIAL 00000000-01582403 -
216-34378 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
SERIAL 00000000-01582403STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
SERIAL 00000000-01582403 -
311-82670911 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDNUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
-
411-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
511-24652 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
632-30797 TUBE, WATER OUTLETTUBE, WATER OUTLET
-
632-31940 TUBE, WATER OUTLETTUBE, WATER OUTLET
-
726-30811 SEAL, RUBBER - WATER OUTLET
SERIAL 01734583-09999999SEAL, RUBBER - WATER OUTLET
SERIAL 01734583-09999999 -
7A26-36556 SEAL, RUBBER - WATER OUTLET TUBE
SERIAL 00000000-17734584SEAL, RUBBER - WATER OUTLET TUBE
SERIAL 00000000-17734584 -
823-13127 WASHER, NYLON - OUTLET TUBE SEAL
SERIAL 00000000-17734584WASHER, NYLON - OUTLET TUBE SEAL
SERIAL 00000000-17734584 -
927-30804 GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSINGGASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
101539-8450A1 SADDLESADDLE
-
101539-8450A1 SADDLESADDLE
-
1179985A1 MOUNT ASSEMBLY, UPPERMOUNT ASSEMBLY, UPPER
-
1279896A1 MOUNT ASSEMBLY, LOWERMOUNT ASSEMBLY, LOWER
-
1353-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1471490 COVER, UPPER AND LOWER MOUNTCOVER, UPPER AND LOWER MOUNT
-
1510-30675 SCREW, UPPER AND LOWER MOUNT COVER RETAININGSCREW, UPPER AND LOWER MOUNT COVER RETAINING
