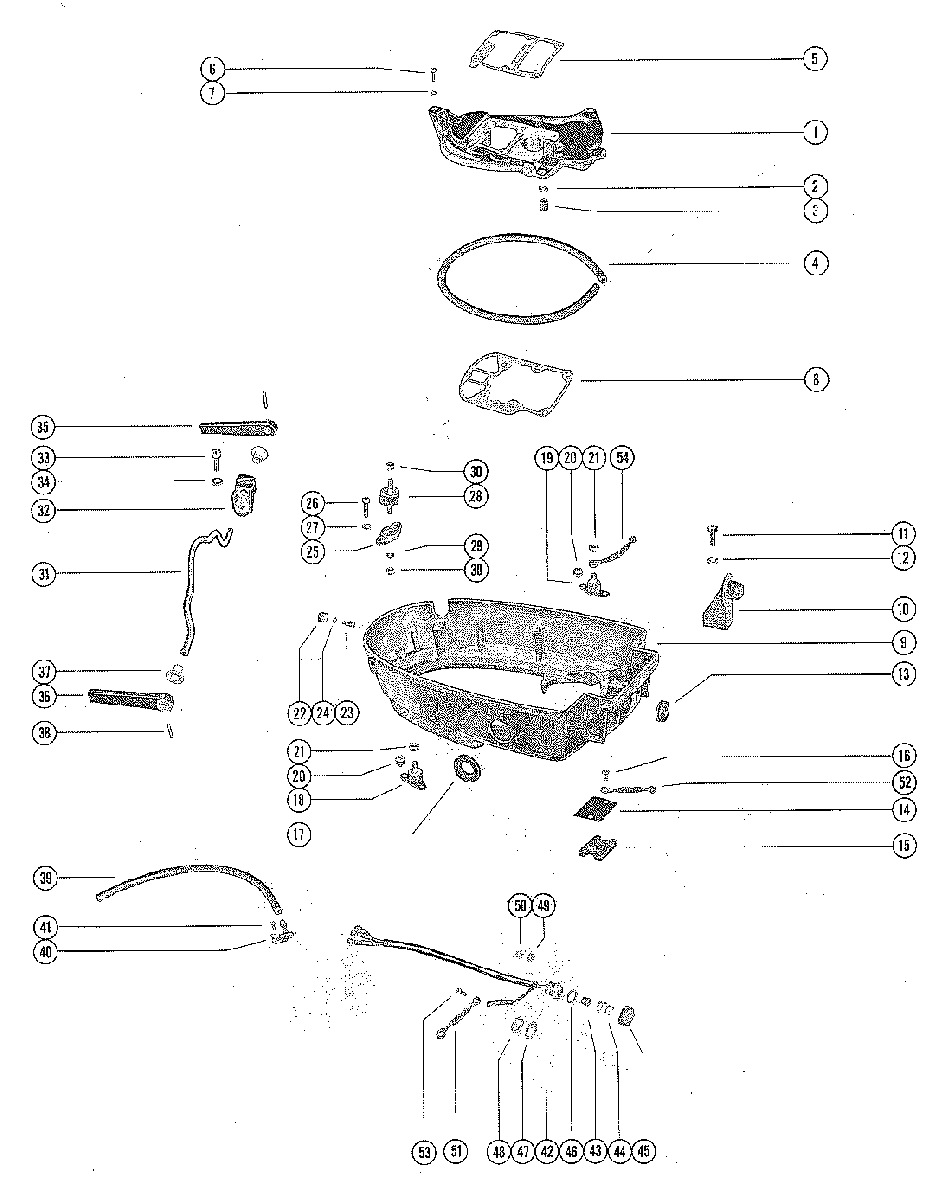

BOTTOM COWL AND ADAPTOR PLATE для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
153504A2 ADAPTOR PLATE ASSEMBLY
SERIAL 00000000-02721150ADAPTOR PLATE ASSEMBLY
SERIAL 00000000-02721150 -
156711A2 ADAPTOR PLATE ASSEMBLY
SERIAL 02810637-09999999ADAPTOR PLATE ASSEMBLY
SERIAL 02810637-09999999 -
223-13127 WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)
-
326-36556 SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)
-
439044 SEAL, RUBBER - ADAPTOR PLATESEAL, RUBBER - ADAPTOR PLATE
-
527-89937 GASKET, POWERHEAD TO ADAPTOR PLATEGASKET, POWERHEAD TO ADAPTOR PLATE
-
610-69026 SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
-
713-26992 LOCKWASHER, ADAPTOR PLATE SCREWLOCKWASHER, ADAPTOR PLATE SCREW
-
827-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
92124-4416A2 COWL, BOTTOM
SERIAL 00000000-02721150COWL, BOTTOM
SERIAL 00000000-02721150 -
92124-4416A2 COWL, BOTTOM
SERIAL 02810637-02958118COWL, BOTTOM
SERIAL 02810637-02958118 -
92124-4416A2 COWL, BOTTOM
SERIAL 03016581-09999999COWL, BOTTOM
SERIAL 03016581-09999999 -
1039474 ANCHOR, LATCH - BOTTOM COWL
SERIAL 00000000-02721150ANCHOR, LATCH - BOTTOM COWL
SERIAL 00000000-02721150 -
1056069 ANCHOR, LATCH - BOTTOM COWL (NOT AS SHOWN)
SERIAL 02810637-09999999ANCHOR, LATCH - BOTTOM COWL (NOT AS SHOWN)
SERIAL 02810637-09999999 -
1110-22483 SCREW, LATCH ANCHOR TO BOTTOM COWL (1-1/8")SCREW, LATCH ANCHOR TO BOTTOM COWL (1-1/8")
-
1213-26992 LOCKWASHER, LATCH ANCHOR SCREWLOCKWASHER, LATCH ANCHOR SCREW
-
1325-39054 GROMMET, CHOKE SHAFT - BOTTOM COWLGROMMET, CHOKE SHAFT - BOTTOM COWL
-
1439051A1 PLATE ASSEMBLY, COVER - BOTTOM COWL
SERIAL 00000000-02958118PLATE ASSEMBLY, COVER - BOTTOM COWL
SERIAL 00000000-02958118 -
1539068 PAD, SOUND - COVER PLATE
SERIAL 00000000-02958118PAD, SOUND - COVER PLATE
SERIAL 00000000-02958118 -
1610-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL (3/8")
SERIAL 00000000-02958118SCREW, COVER PLATE TO BOTTOM COWL (3/8")
SERIAL 00000000-02958118 -
1459100 COVER, AIR INTAKE - BOTTOM COWL
SERIAL 03016581-09999999COVER, AIR INTAKE - BOTTOM COWL
SERIAL 03016581-09999999 -
1610-8M0113176 SCREW, AIR INTAKE COVER TO BOTTOM COWL (3/8")
SERIAL 03016581-09999999SCREW, AIR INTAKE COVER TO BOTTOM COWL (3/8")
SERIAL 03016581-09999999 -
1739058 SEAL, SHIFT HANDLE - BOTTOM COWLSEAL, SHIFT HANDLE - BOTTOM COWL
-
1839145 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
-
1939144 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)
-
2010-96138 SCREW, RUBBER MOUNT TO BOTTOM COWL (1/2")SCREW, RUBBER MOUNT TO BOTTOM COWL (1/2")
-
2111-20184 NUT, ADAPTOR PLATE TO RUBBER MOUNTNUT, ADAPTOR PLATE TO RUBBER MOUNT
-
2239565 SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)
-
2310-32228 SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")
-
2413-26996 LOCKWASHER, NYLON SPOOL SCREWLOCKWASHER, NYLON SPOOL SCREW
-
2539147 ADAPTOR, REAR MOUNT TO BOTTOM COWLADAPTOR, REAR MOUNT TO BOTTOM COWL
-
2610-69026 SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
-
2713-26992 LOCKWASHER, REAR MOUNT ADAPTOR SCREWLOCKWASHER, REAR MOUNT ADAPTOR SCREW
-
2839146 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)
-
2913-26992 LOCKWASHER, REAR MOUNTLOCKWASHER, REAR MOUNT
-
3011-20184 NUT, ADAPTOR PLATE TO REAR RUBBER MOUNTNUT, ADAPTOR PLATE TO REAR RUBBER MOUNT
-
3163648 ROD, COWL LATCH - BOTTOM COWLROD, COWL LATCH - BOTTOM COWL
-
3239099 BRACKET, COWL LATCH RODBRACKET, COWL LATCH ROD
-
3310-69026 SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8")SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8")
-
3413-26992 LOCKWASHER, COWL LATCH BRACKET SCREWLOCKWASHER, COWL LATCH BRACKET SCREW
-
3539083 HANDLE, COWL LATCH ROD (PORT)HANDLE, COWL LATCH ROD (PORT)
-
3639098 HANDLE, COWL LATCH ROD (STARBOARD)HANDLE, COWL LATCH ROD (STARBOARD)
-
3723-22981 BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWLBUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL
-
3817-25319 PIN, ROLL - HANDLE TO COWL LATCH RODPIN, ROLL - HANDLE TO COWL LATCH ROD
-
3932-8M0108355 TUBE, TELL TALE (11")TUBE, TELL TALE (11")
-
4056712 NOZZLE, TELL TALENOZZLE, TELL TALE
-
4110-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWLSCREW, TELL TALE NOZZLE TO BOTTOM COWL
-
--32372A2 STOP SWITCH ASSEMBLY
SERIAL 00000000-02721150STOP SWITCH ASSEMBLY
SERIAL 00000000-02721150 -
4232372 HARNESS, STOP SWITCH
SERIAL 00000000-02721150HARNESS, STOP SWITCH
SERIAL 00000000-02721150 -
4330859 INSULATOR, SLEEVE - INNER SWITCH TERMINALS
SERIAL 00000000-02721150INSULATOR, SLEEVE - INNER SWITCH TERMINALS
SERIAL 00000000-02721150 -
4424-30858A1 SPRING AND CONTACT ASSEMBLY
SERIAL 00000000-02721150SPRING AND CONTACT ASSEMBLY
SERIAL 00000000-02721150 -
4538950A1 COVER ASSEMBLY, STOP SWITCH
SERIAL 00000000-02721150COVER ASSEMBLY, STOP SWITCH
SERIAL 00000000-02721150 -
4612-38949 WASHER, SEALING-STOP SWITCH
SERIAL 00000000-02721150WASHER, SEALING-STOP SWITCH
SERIAL 00000000-02721150 -
4713-21972 LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 00000000-02721150LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 00000000-02721150 -
4811-21971 NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 00000000-02721150NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 00000000-02721150 -
4257186A4 STOP SWITCH ASSEMBLY
SERIAL 02810637-02958118STOP SWITCH ASSEMBLY
SERIAL 02810637-02958118 -
4612-38949 WASHER, SEALING - STOP SWITCH
SERIAL 02810637-02958118WASHER, SEALING - STOP SWITCH
SERIAL 02810637-02958118 -
4713-21972 LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 02810637-02958118LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 02810637-02958118 -
4811-21971 NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 02810637-02958118NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 02810637-02958118 -
4259065A1 STOP SWITCH ASSEMBLY
SERIAL 03016581-09999999STOP SWITCH ASSEMBLY
SERIAL 03016581-09999999 -
4538950A1 COVER ASSEMBLY, STOP SWITCH
SERIAL 03016581-09999999COVER ASSEMBLY, STOP SWITCH
SERIAL 03016581-09999999 -
4612-59061 WASHER, STATOR LEAD TO STOP SWITCH
SERIAL 03016581-09999999WASHER, STATOR LEAD TO STOP SWITCH
SERIAL 03016581-09999999 -
4713-21972 LOCKWASHER< STOP SWITCH CONNECTOR
SERIAL 03016581-09999999LOCKWASHER< STOP SWITCH CONNECTOR
SERIAL 03016581-09999999 -
4811-21971 NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 03016581-09999999NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 03016581-09999999 -
4913-26996 LOCKWASHER, STATOR TO LEAD STOP SWITCH
SERIAL 03016581-09999999LOCKWASHER, STATOR TO LEAD STOP SWITCH
SERIAL 03016581-09999999 -
5011-68219 NUT, STATOR LEAD TO STOP SWITCH
SERIAL 03016581-09999999NUT, STATOR LEAD TO STOP SWITCH
SERIAL 03016581-09999999 -
5157845A1 GROUND WIRE, BOTTOM COWL (4-1/2")
SERIAL 02810637-02958118GROUND WIRE, BOTTOM COWL (4-1/2")
SERIAL 02810637-02958118 -
5246933A1 GROUND WIRE, COVER PLATE SCREW (3-5/8")
SERIAL 02810637-02958118GROUND WIRE, COVER PLATE SCREW (3-5/8")
SERIAL 02810637-02958118 -
5310-8M0113176 SCREW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
SERIAL 02810637-02958118SCREW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
SERIAL 02810637-02958118 -
5459796A1 GROUND WIRE, RUBBER MOUNT SCREW AND NUT
SERIAL 03016581-09999999GROUND WIRE, RUBBER MOUNT SCREW AND NUT
SERIAL 03016581-09999999
