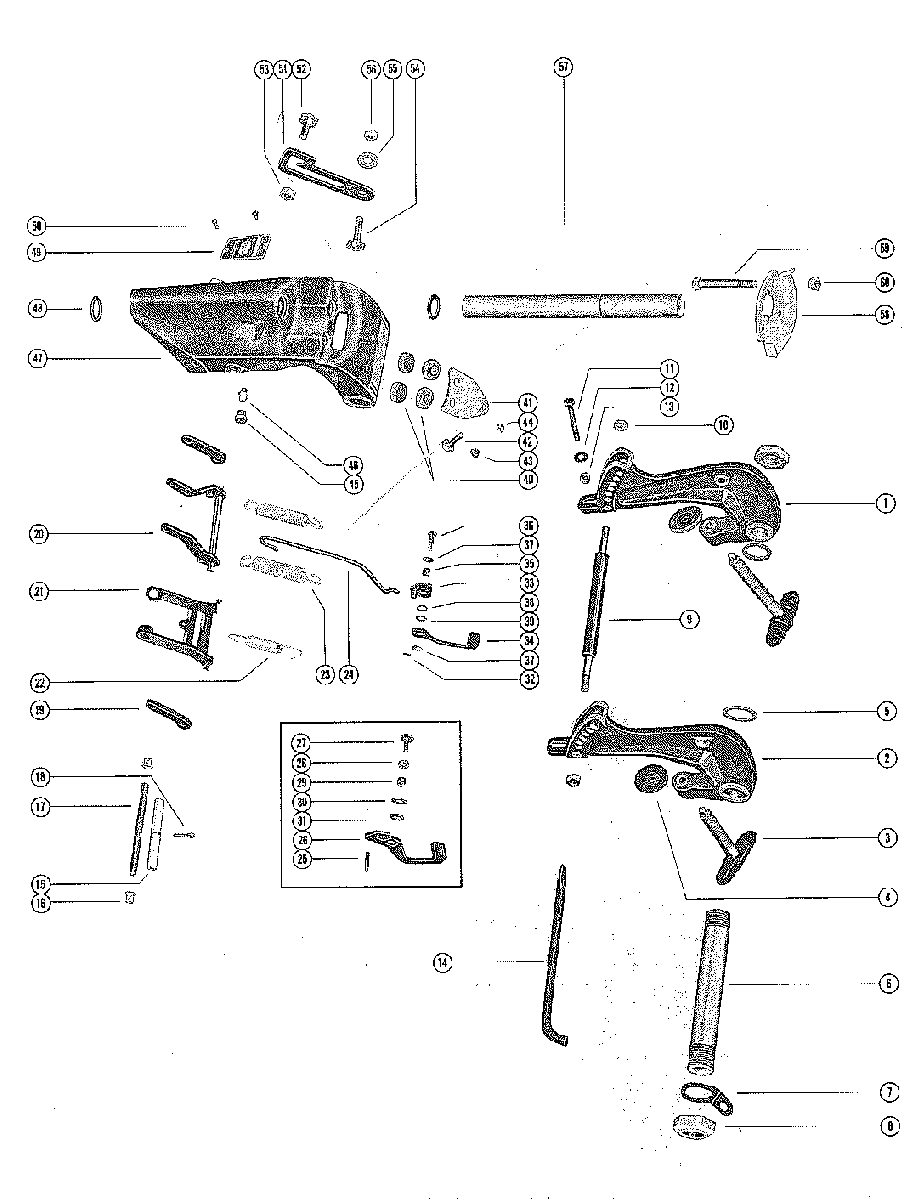

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
11467-5406A2 CLAMP BRACKET ASSEMBLY (PORT)
SERIAL 00000000-02958118CLAMP BRACKET ASSEMBLY (PORT)
SERIAL 00000000-02958118 -
21467-5406A2 CLAMP BRACKET ASSEMBLY (STARBOARD)
SERIAL 00000000-02958118CLAMP BRACKET ASSEMBLY (STARBOARD)
SERIAL 00000000-02958118 -
359170A3 THUMB SCREW ASSEMBLY
SERIAL 00000000-02958118THUMB SCREW ASSEMBLY
SERIAL 00000000-02958118 -
412-26227 WASHER, THUMB SCREW
SERIAL 00000000-02958118WASHER, THUMB SCREW
SERIAL 00000000-02958118 -
11468-5570A3 CLAMP BRACKET ASSEMBLEY (PORT)
SERIAL 03016581-09999999CLAMP BRACKET ASSEMBLEY (PORT)
SERIAL 03016581-09999999 -
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
SERIAL 03016581-09999999CLAMP BRACKET ASSEMBLY (STARBOARD)
SERIAL 03016581-09999999 -
359170A3 THUMB SCREW ASSEMBLY
SERIAL 03016581-09999999THUMB SCREW ASSEMBLY
SERIAL 03016581-09999999 -
412-26227 WASHER, THUMB SCREW
SERIAL 03016581-09999999WASHER, THUMB SCREW
SERIAL 03016581-09999999 -
512-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKETWASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
-
645757 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKETTILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
-
754-8M0085928 CLIP, SAFETY CHAIN - TILT TUBECLIP, SAFETY CHAIN - TILT TUBE
-
811-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
916-59622 STUD, CLAMP BRACKET SPACERSTUD, CLAMP BRACKET SPACER
-
1011-29598 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1110-67982 SCREW, CLAMP BRACKET TO TRANSCOM (2-3/4")SCREW, CLAMP BRACKET TO TRANSCOM (2-3/4")
-
1212-67983 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1311-8267098 NUT, CLAMP BRACKET SCREWNUT, CLAMP BRACKET SCREW
-
1417-55952A1 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1523-30813 SPACER, TUBE - REVERSE LOCK LEVER RODSPACER, TUBE - REVERSE LOCK LEVER ROD
-
1623-26856 BUSHING, NYLON - REVERSE LOCK LEVER RODBUSHING, NYLON - REVERSE LOCK LEVER ROD
-
1756663 ROD, REVERSE LOCK TO SWIVEL BRACKET
SERIAL 00000000-02721150ROD, REVERSE LOCK TO SWIVEL BRACKET
SERIAL 00000000-02721150 -
1756663 ROD, REVERSE LOCK TO SWIVEL BRACKET
SERIAL 02810637-09999999ROD, REVERSE LOCK TO SWIVEL BRACKET
SERIAL 02810637-09999999 -
1818-56206 COTTER PIN, REVERSE LOCK LEVER TO RODCOTTER PIN, REVERSE LOCK LEVER TO ROD
-
1930815 LINK, REVERSE LOCK LEVERLINK, REVERSE LOCK LEVER
-
2053267A1 REVERSE LOCK LEVER ASSEMBLYREVERSE LOCK LEVER ASSEMBLY
-
2153435 BRACKET, STOPBRACKET, STOP
-
2224-53456 SPRING, EXTENSION - STOP BRACKETSPRING, EXTENSION - STOP BRACKET
-
2324-30886 SPRING, TENSION - REVERSE LOCK LEVERSPRING, TENSION - REVERSE LOCK LEVER
-
2438318 ROD, LINK - REVERSE LOCK LEVER
SERIAL 00000000-02958118ROD, LINK - REVERSE LOCK LEVER
SERIAL 00000000-02958118 -
2462257A2 ROD, LINK - REVERSE LOCK LEVER
SERIAL 03016581-09999999ROD, LINK - REVERSE LOCK LEVER
SERIAL 03016581-09999999 -
2517-25905 ROLL PIN, SWIVEL BRACKET CONTROL LEVER
SERIAL 00000000-02721150ROLL PIN, SWIVEL BRACKET CONTROL LEVER
SERIAL 00000000-02721150 -
2632351T LEVER, CONTROL - REVERSE LOCK
SERIAL 00000000-02721150LEVER, CONTROL - REVERSE LOCK
SERIAL 00000000-02721150 -
2710-28789 SCREW, CONTROL LEVER TO SWIVEL BRACKET
SERIAL 00000000-02721150SCREW, CONTROL LEVER TO SWIVEL BRACKET
SERIAL 00000000-02721150 -
2812-56681 WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150 -
2923-31309 SPACER, CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150SPACER, CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150 -
3013-34632 WASHER, WAVE - CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150WASHER, WAVE - CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150 -
3112-24812 WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 00000000-02721150 -
3217-25905 ROLL PIN, SWIVEL BRACKET CONTROL LEVER
SERIAL 02810637-02958118ROLL PIN, SWIVEL BRACKET CONTROL LEVER
SERIAL 02810637-02958118 -
3356636A1 LINK ASSEMBLY, REVERSE LOCK
SERIAL 02810637-02958118LINK ASSEMBLY, REVERSE LOCK
SERIAL 02810637-02958118 -
3456637T LEVER, CONTROL - REVERSE LOCK
SERIAL 02810637-02958118LEVER, CONTROL - REVERSE LOCK
SERIAL 02810637-02958118 -
3523-56639 SPACER, CONTROL LEVER FASTENING SCREW
SERIAL 02810637-02958118SPACER, CONTROL LEVER FASTENING SCREW
SERIAL 02810637-02958118 -
3217-25905 ROLL PIN, SWIVEL BRACKET CONTROL LEVER
SERIAL 03016581-09999999ROLL PIN, SWIVEL BRACKET CONTROL LEVER
SERIAL 03016581-09999999 -
3362257A2 LINK ASSEMBLY, REVERSE LOCK
SERIAL 03016581-09999999LINK ASSEMBLY, REVERSE LOCK
SERIAL 03016581-09999999 -
3462024T LEVER, CONTROL - REVERSE LOCK
SERIAL 03016581-09999999LEVER, CONTROL - REVERSE LOCK
SERIAL 03016581-09999999 -
3523-31309 SPACER, CONTROL LEVER FASTENING SCREW
SERIAL 03016581-09999999SPACER, CONTROL LEVER FASTENING SCREW
SERIAL 03016581-09999999 -
3610-852368 SCREW, CONTROL LEVER FASTENING
SERIAL 02810637-09999999SCREW, CONTROL LEVER FASTENING
SERIAL 02810637-09999999 -
3712-56681 WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 02810637-09999999WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 02810637-09999999 -
3813-34632 WASHER, WAVE - CONTROL LEVER FASTENING SCREW
SERIAL 02810637-09999999WASHER, WAVE - CONTROL LEVER FASTENING SCREW
SERIAL 02810637-09999999 -
3912-24812 WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 02810637-09999999WASHER, CONTROL LEVER FASTENING SCREW
SERIAL 02810637-09999999 -
4020203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKETDISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
-
4161296 PLATE, CLAMP - CO-PILOTPLATE, CLAMP - CO-PILOT
-
4210-56649 SCREW, CLAMP PLATE ADJUSTING
SERIAL 00000000-02721150SCREW, CLAMP PLATE ADJUSTING
SERIAL 00000000-02721150 -
4210-56649 SCREW, CLAMP PLATE ADJUSTING
SERIAL 02810637-09999999SCREW, CLAMP PLATE ADJUSTING
SERIAL 02810637-09999999 -
4323-59573 SPACER, CLAMP PLATE ADJUSTING SCREW
SERIAL 03016581-09999999SPACER, CLAMP PLATE ADJUSTING SCREW
SERIAL 03016581-09999999 -
4413-48239 WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW
SERIAL 03016581-09999999WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW
SERIAL 03016581-09999999 -
4519-77633Q LUBRICAP, GREASE FITTING - SWIVEL BRACKETLUBRICAP, GREASE FITTING - SWIVEL BRACKET
-
4622-74036 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
471451-1788 SWIVEL BRACKETSWIVEL BRACKET
-
4825-25439 "O" RING, SWIVEL BRACKET"O" RING, SWIVEL BRACKET
-
4938-31042 SERIAL PLATESERIAL PLATE
-
5010-28642 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
5163310A1 LEVER, TILT STOP
SERIAL 00000000-02721150LEVER, TILT STOP
SERIAL 00000000-02721150 -
5163310A1 LEVER, TILT STOP
SERIAL 02810637-09999999LEVER, TILT STOP
SERIAL 02810637-09999999 -
5210-29237 SCREW, RETAINING - TILT STOP LEVERSCREW, RETAINING - TILT STOP LEVER
-
5311-20184 NUT, TILT STOP LEVER RETAINING SCREWNUT, TILT STOP LEVER RETAINING SCREW
-
5410-27791 SCREW, ANCHOR - TILT STOP LEVERSCREW, ANCHOR - TILT STOP LEVER
-
5513-20846 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
5611-20184 NUT, TILT STOP LEVER ANCHOR SCREWNUT, TILT STOP LEVER ANCHOR SCREW
-
5717-30688 SWIVEL PIN, SWIVEL BRACKET TO SADDLESWIVEL PIN, SWIVEL BRACKET TO SADDLE
-
5877334 CO-PILOT DISCCO-PILOT DISC
-
5910-30679 SCREW, CO-PILOT DISC TO SADDLESCREW, CO-PILOT DISC TO SADDLE
-
6011-20184 NUT, CO-PILOT DISC FASTENING SCREWNUT, CO-PILOT DISC FASTENING SCREW
