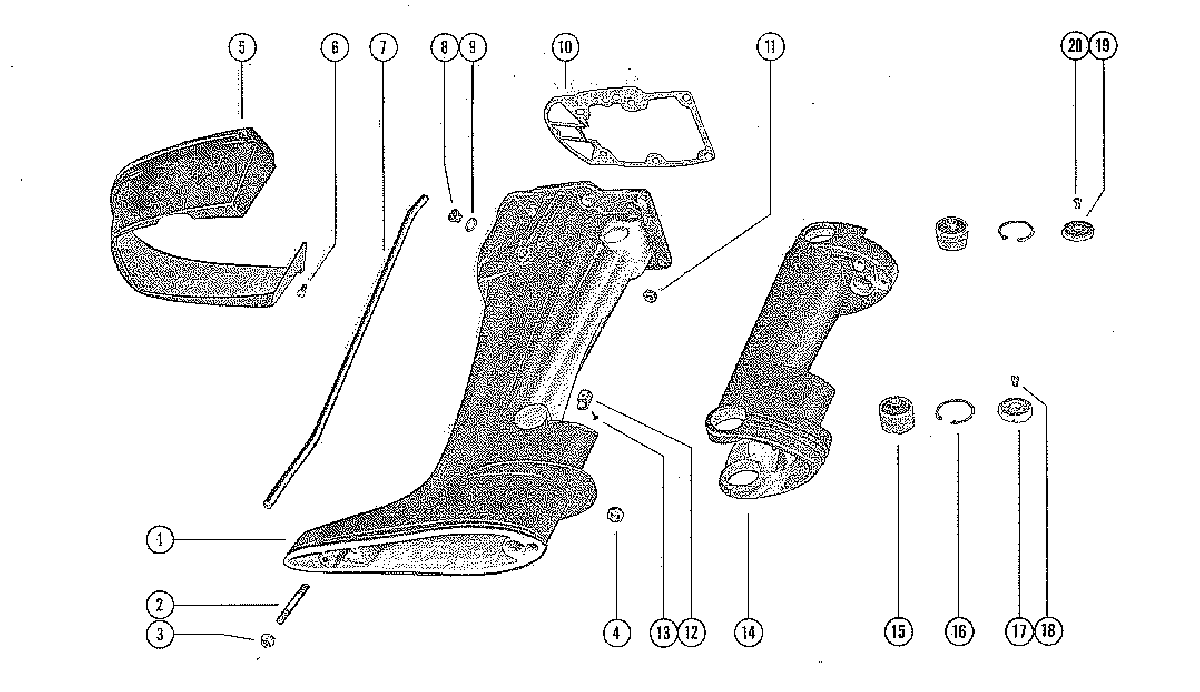

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
11556-2627A2 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-02721150DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-02721150 -
11558-2641A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-02721150DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-02721150 -
11556-4030A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 02810637-09999999DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 02810637-09999999 -
11558-4031A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 02810637-09999999DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 02810637-09999999 -
216-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-5/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-5/16")
-
311-82670911 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
411-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
539025 COVER, TRIP - DRIVE SHAFT HOUSINGCOVER, TRIP - DRIVE SHAFT HOUSING
-
610-25764 SCREW, TRIM COVER TO BOTTOM COWL (7/16")SCREW, TRIM COVER TO BOTTOM COWL (7/16")
-
732-39061 TUBE, WATER OUTLET (SHORT SHAFT)TUBE, WATER OUTLET (SHORT SHAFT)
-
732-39062 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
810-79953Q04 SCREW, FLUSH - DRIVE SHAFT HOUSING
PART OF A-1556-4030A1 AND A-1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLIESSCREW, FLUSH - DRIVE SHAFT HOUSING
PART OF A-1556-4030A1 AND A-1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLIES -
912-191833 WASHER, SEALING - FLUSH SCREW
PART OF A-1556-4030A1 AND A-1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLIESWASHER, SEALING - FLUSH SCREW
PART OF A-1556-4030A1 AND A-1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLIES -
1027-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
1111-20184 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1111-24652 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1247259A1 BLOCK ASSEMBLY, DRIVE SHAFT
LONG SHAFTBLOCK ASSEMBLY, DRIVE SHAFT
LONG SHAFT -
1310-47225 SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING (1-1/4")
LONG SHAFTSCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING (1-1/4")
LONG SHAFT -
141559-8448A2 SADDLESADDLE
-
--32021 BUMPER, THRUST - SADDLEBUMPER, THRUST - SADDLE
-
1579896A1 MOUNT ASSEMBLY, LOWER (SEE NOTE BELOW)MOUNT ASSEMBLY, LOWER (SEE NOTE BELOW)
-
1653-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1771490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1810-45817 SCREW, LOWER MOUNT COVER TO MOUNT (7/16")SCREW, LOWER MOUNT COVER TO MOUNT (7/16")
-
1971490 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2010-30675 SCREW, UPPER MOUNT COVER TO MOUNT (3/8")SCREW, UPPER MOUNT COVER TO MOUNT (3/8")
