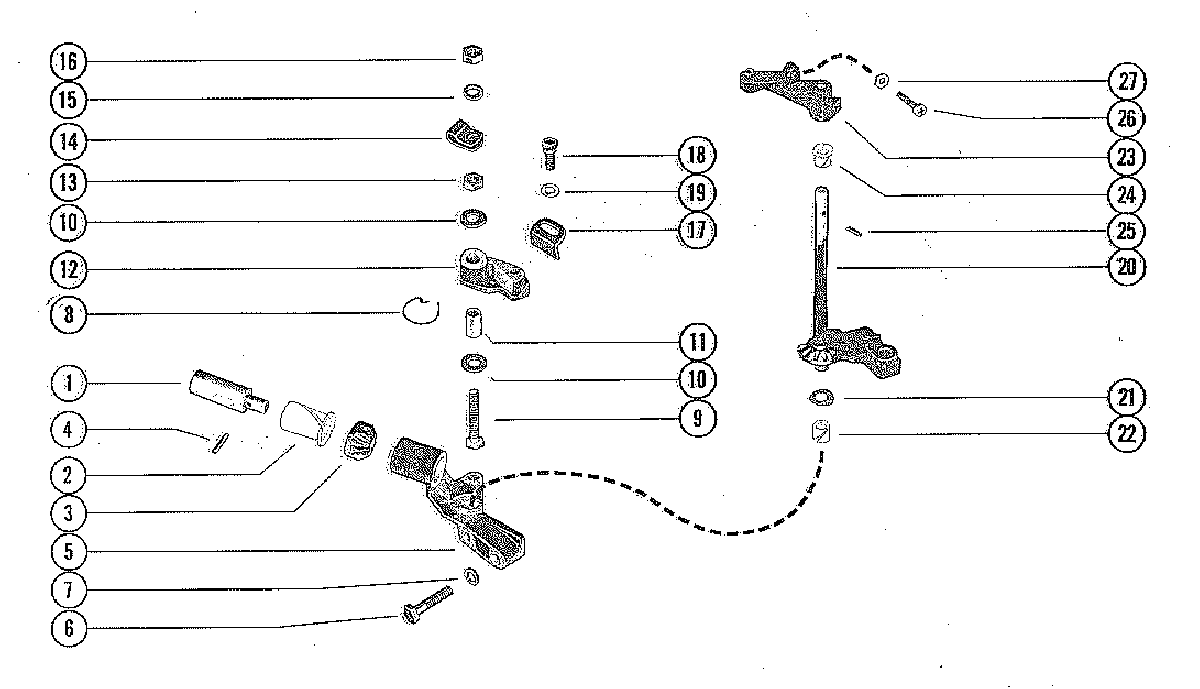

THROTTLE CONTROL LINKAGE для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
139038 SOCKET, THROTTLE CONTROLSOCKET, THROTTLE CONTROL
-
223-31011 BUSHING, NYLON - THROTTLE CONTROL SOCKETBUSHING, NYLON - THROTTLE CONTROL SOCKET
-
343-39030 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKETGEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
-
417-24800 PIN, ROLL - GEAR TO THROTTLE CONTROL SOCKETPIN, ROLL - GEAR TO THROTTLE CONTROL SOCKET
-
539029 HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
610-56500 SCREW, THROTTLE CONTROL HOUSING TO CRANKCASE (1-1/4")SCREW, THROTTLE CONTROL HOUSING TO CRANKCASE (1-1/4")
-
713-26992 LOCKWASHER, THROTTLE CONTROL HOUSING SCREWLOCKWASHER, THROTTLE CONTROL HOUSING SCREW
-
824-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
910-21807 SCREW, LIMITER FOLLOWER TO CONTROL HOUSING (1-3/4")SCREW, LIMITER FOLLOWER TO CONTROL HOUSING (1-3/4")
-
1012-30971 WASHER, SPEED LIMITER FOLLOWER SCREWWASHER, SPEED LIMITER FOLLOWER SCREW
-
1123-30972 BUSHING, SPEED LIMITER FOLLOWER SCREWBUSHING, SPEED LIMITER FOLLOWER SCREW
-
1263308A1 FOLLOWER, NEUTRAL SPEED LIMITERFOLLOWER, NEUTRAL SPEED LIMITER
-
1311-20088 NUT, JAM - SPEED LIMITER FOLLOWER SCREWNUT, JAM - SPEED LIMITER FOLLOWER SCREW
-
1454-39788 CLAMP, STOP SWITCH LEAD - SPEED LIMITER FOLLOWER SCREWCLAMP, STOP SWITCH LEAD - SPEED LIMITER FOLLOWER SCREW
-
1512-29245 WASHER, SPEED LIMITER FOLLOWER SCREWWASHER, SPEED LIMITER FOLLOWER SCREW
-
1611-8267139 NUT, SPEED LIMITER FOLLOWER SCREWNUT, SPEED LIMITER FOLLOWER SCREW
-
1736017 STOP, NEUTRAL SPEED LIMITERSTOP, NEUTRAL SPEED LIMITER
-
1810-28710 SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")
-
1912-24676 WASHER, NEUTRAL SPEED LIMITER STOP SCREWWASHER, NEUTRAL SPEED LIMITER STOP SCREW
-
2043-39031 GEAR AND SHAFT, THROTTLE CONTROLGEAR AND SHAFT, THROTTLE CONTROL
-
2113-39041 WASHER, WAVE - GEAR AND SHAFT (LOWER)WASHER, WAVE - GEAR AND SHAFT (LOWER)
-
2223-30868 BUSHING, NYLON - GEAR AND SHAFT TO THROTTLE CONTROL HOUSINGBUSHING, NYLON - GEAR AND SHAFT TO THROTTLE CONTROL HOUSING
-
2339033A1 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
2423-26841 BUSHING, NYLON - GEAR AND SHAFT (UPPER)BUSHING, NYLON - GEAR AND SHAFT (UPPER)
-
2517-22896 PIN, ROLL - THROTTLE CONTROL LEVER TO GEAR AND SHAFTPIN, ROLL - THROTTLE CONTROL LEVER TO GEAR AND SHAFT
-
2610-23015 SCREW, ADJUSTING - THROTTLE ADVANCE (1")SCREW, ADJUSTING - THROTTLE ADVANCE (1")
-
2711-68219 NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREWNUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW
Все узлы модели:
- BOTTOM COWL AND ADAPTOR PLATE
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- • THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
