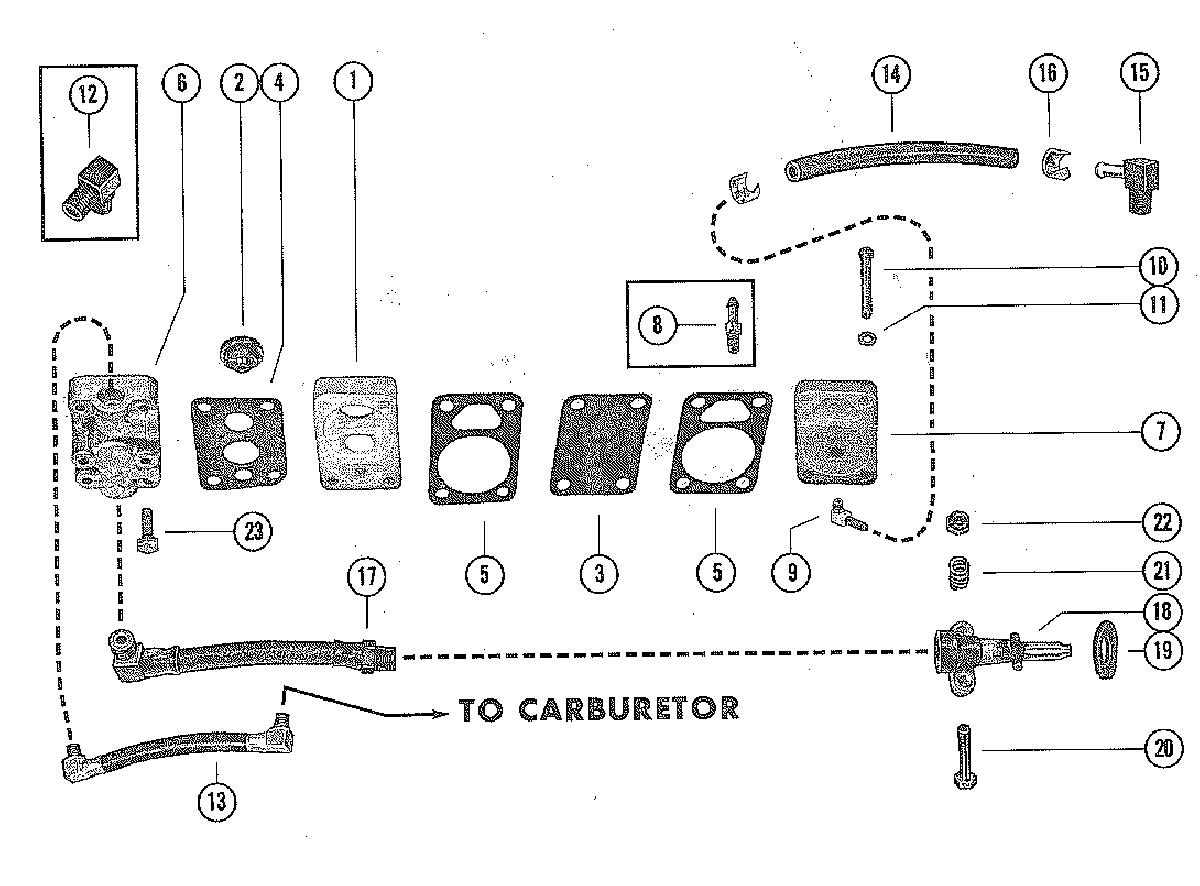

FUEL PUMP ASSEMBLY для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
189977A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
353245A1 DIAPHRAGM KIT, FUEL PUMPDIAPHRAGM KIT, FUEL PUMP
-
490-8M0143356 GASKET, FUEL PUMP TO BASEGASKET, FUEL PUMP TO BASE
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
653242 BASE, FUEL PUMP
SERIAL 00000000-02721150BASE, FUEL PUMP
SERIAL 00000000-02721150 -
653241 BASE, FUEL PUMP
SERIAL 02810637-09999999BASE, FUEL PUMP
SERIAL 02810637-09999999 -
753239 COVER, FUEL PUMP
SERIAL 00000000-02631374COVER, FUEL PUMP
SERIAL 00000000-02631374 -
754066 COVER, FUEL PUMP
SERIAL 02631375-09999999COVER, FUEL PUMP
SERIAL 02631375-09999999 -
822-54064 CONNECTOR, FUEL PUMP COVER
SERIAL 00000000-02721150CONNECTOR, FUEL PUMP COVER
SERIAL 00000000-02721150 -
922-54090 ELBOW, PUMP OUTLET
SERIAL 02810637-09999999ELBOW, PUMP OUTLET
SERIAL 02810637-09999999 -
1010-32627 SCREW, FUEL PUMP TO BASE (1-1/2")SCREW, FUEL PUMP TO BASE (1-1/2")
-
1112-847883 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
1222-53246 ELBOW, FUEL PUMP TO CARBURETOR (45 )
SERIAL #2721150 AND BELOWELBOW, FUEL PUMP TO CARBURETOR (45 )
SERIAL #2721150 AND BELOW -
1332-64055 FUEL LINE, FUEL PUMP TO CARBURETOR (5")
SERIAL #2810637 AND UPFUEL LINE, FUEL PUMP TO CARBURETOR (5")
SERIAL #2810637 AND UP -
1432-9912688 HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7-1/8")HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7-1/8")
-
1522-33373001 ELBOW, PRESSURE HOSE TO CYL. BLOCK (90 )
SERIAL #2721150 AND BELOWELBOW, PRESSURE HOSE TO CYL. BLOCK (90 )
SERIAL #2721150 AND BELOW -
1522-53553 ELBOW, PRESSURE HOSE TO CYL. BLOCK (45 )
SERIAL #2810637 AND UPELBOW, PRESSURE HOSE TO CYL. BLOCK (45 )
SERIAL #2810637 AND UP -
1654-20387 CLAMP, PRESSURE HOSE TO ELBOWSCLAMP, PRESSURE HOSE TO ELBOWS
-
1732-53247 FUEL LINE, FUEL PUMP TO ADAPTOR (7")
SERIAL #2721150 AND BELOWFUEL LINE, FUEL PUMP TO ADAPTOR (7")
SERIAL #2721150 AND BELOW -
1732-39485 FUEL LINE, FUEL PUMP TO ADAPTOR (NOT AS SHOWN)
SERIAL #2810637 AND UPFUEL LINE, FUEL PUMP TO ADAPTOR (NOT AS SHOWN)
SERIAL #2810637 AND UP -
1832454 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
1939052 SEAL, ADAPTOR TO BOTTOM COWLSEAL, ADAPTOR TO BOTTOM COWL
-
2010-73656 SCREW, ADAPTOR TO BOTTOM COWL (1-3/8")
SERIAL #2958118 AND BELOWSCREW, ADAPTOR TO BOTTOM COWL (1-3/8")
SERIAL #2958118 AND BELOW -
2010-98509 SCREW, ADAPTOR TO BOTTOM COWL (1-1/8")
SERIAL #3016581 AND UPSCREW, ADAPTOR TO BOTTOM COWL (1-1/8")
SERIAL #3016581 AND UP -
2124-28357 SPRING, TENSION - ADAPTOR SCREWSPRING, TENSION - ADAPTOR SCREW
-
2211-20110 NUT, ADAPTOR FASTENING SCREW
SERIAL 00000000-02958118NUT, ADAPTOR FASTENING SCREW
SERIAL 00000000-02958118 -
2310-29200 SCREW, FUEL PUMP TO ANCHOR (5/8")
SERIAL 02810637-09999999SCREW, FUEL PUMP TO ANCHOR (5/8")
SERIAL 02810637-09999999
