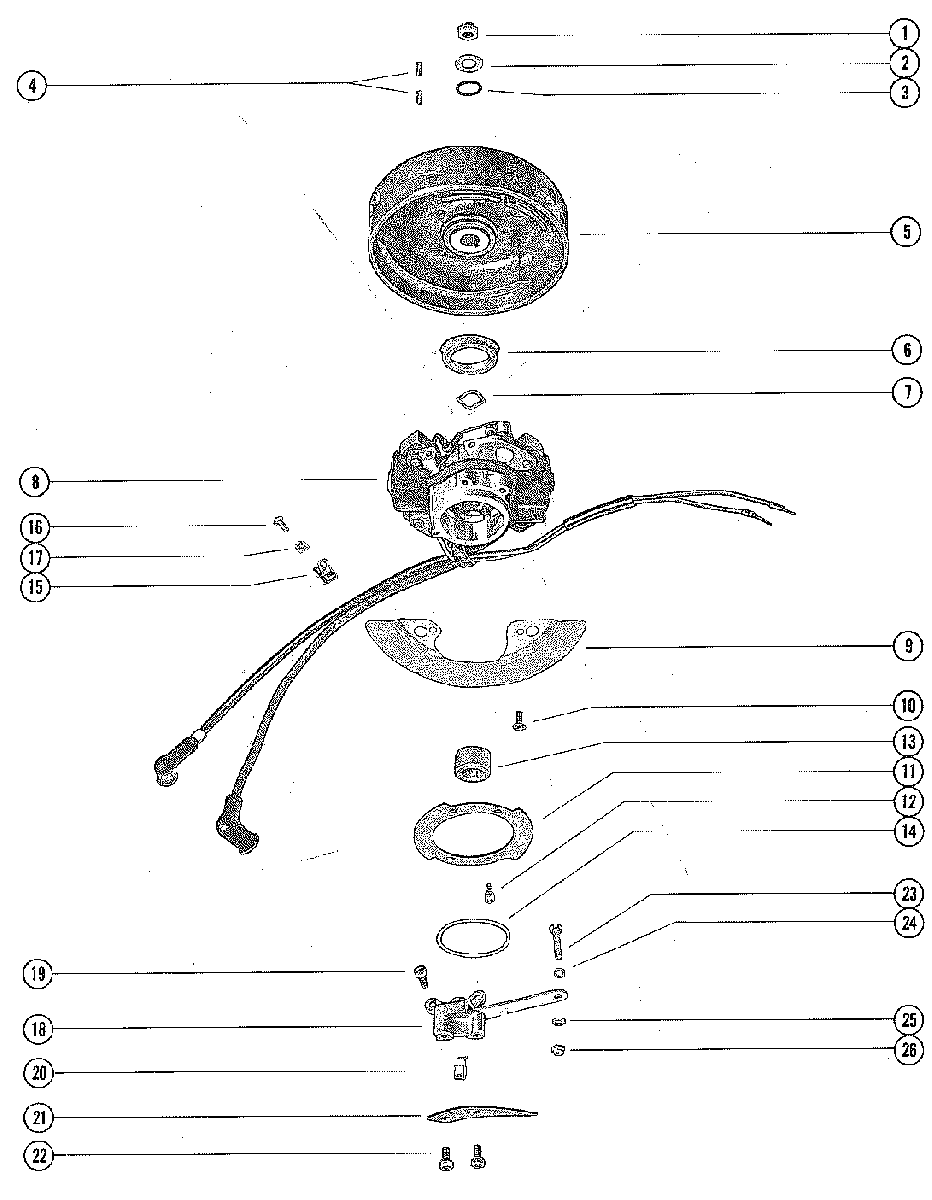

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
111-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
325-62701 "O" RING, FLYWHEEL HUB"O" RING, FLYWHEEL HUB
-
428-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
5219-2246A4 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
623-34367 COLLAR, FLYWHEEL DUST SHIELDCOLLAR, FLYWHEEL DUST SHIELD
-
713-22027 WASHER, WAVE - MAGNETO CAM TENSIONWASHER, WAVE - MAGNETO CAM TENSION
-
8398-2574A4 STATOR PLATE ASSEMBLY, COMPLETESTATOR PLATE ASSEMBLY, COMPLETE
-
939326A1 SHIELD ASSEMBLY, STATOR PLATESHIELD ASSEMBLY, STATOR PLATE
-
1010-49049 SCREW, SHEILD TO STATOR PLATESCREW, SHEILD TO STATOR PLATE
-
1133904 RING, HOLD DOWN - STATOR PLATERING, HOLD DOWN - STATOR PLATE
-
1210-35400 SCREW, HOLD DOWN RING TO STATOR PLATESCREW, HOLD DOWN RING TO STATOR PLATE
-
13398-2230 CAM, BREAKERCAM, BREAKER
-
1415-33910015 SHIM, STATOR PLATE TO UPPER END CAP (.015)SHIM, STATOR PLATE TO UPPER END CAP (.015)
-
1554-45806 CLAMP, STATOR LEADCLAMP, STATOR LEAD
-
1610-20720 SCREW, STATOR LEAD CLIP TO PORT COVERSCREW, STATOR LEAD CLIP TO PORT COVER
-
178M0084613 "D" WASHER, LEAD CLIP SCREW"D" WASHER, LEAD CLIP SCREW
-
1834363A1 THROTTLE CAM BRACKET ASSEMBLYTHROTTLE CAM BRACKET ASSEMBLY
-
1910-53296 SCREW, CAM BRACKET TO STATOR PLATE (1/2")SCREW, CAM BRACKET TO STATOR PLATE (1/2")
-
2054-34449 CLIP, THROTTLE CAM BRACKETCLIP, THROTTLE CAM BRACKET
-
2136000 CAM, THROTTLECAM, THROTTLE
-
2210-28707 SCREW, THROTTLE CAM TO CAM BRACKET (1/2")SCREW, THROTTLE CAM TO CAM BRACKET (1/2")
-
2310-34696 SCREW, CONTROL LEVER TO CAM BRACKET (3/4")SCREW, CONTROL LEVER TO CAM BRACKET (3/4")
-
2413-29720 WASHER, WAVE - CONTROL LEVER SCREWWASHER, WAVE - CONTROL LEVER SCREW
-
2512-34392 WASHER, CONTROL LEVER SCREWWASHER, CONTROL LEVER SCREW
-
2611-28656 NUT, CONTROL LEVER SCREWNUT, CONTROL LEVER SCREW
