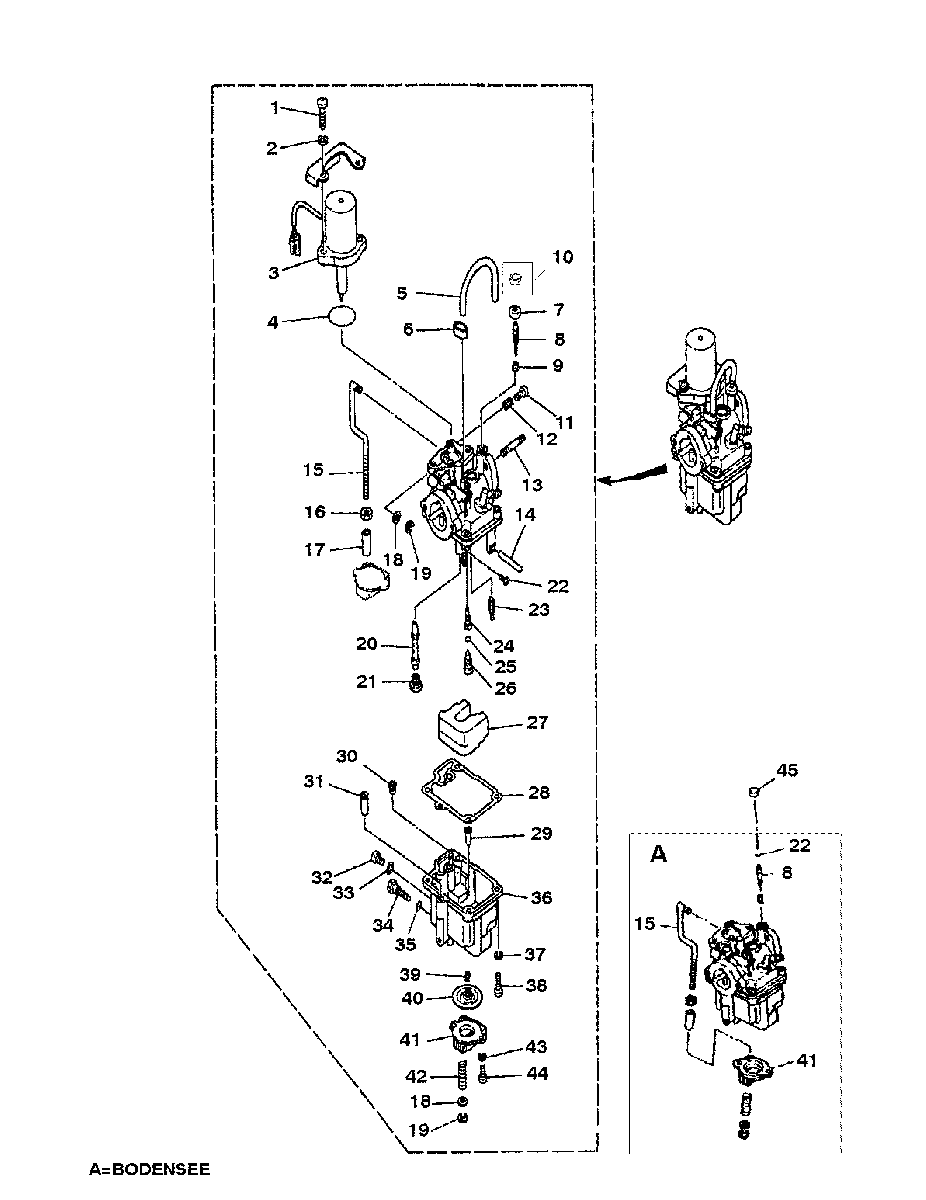

CARBURETOR для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909
-
№АртикулНазвание
-
-3323-855107T02 CARBURETOR
(S/N-0H013399 & BELOW)CARBURETOR
(S/N-0H013399 & BELOW) -
-3323-827973T1 CARBURETOR
(S/N-0H013400 -0H014137) (BODENSEE)CARBURETOR
(S/N-0H013400 -0H014137) (BODENSEE) -
-3323-855107T02 CARBURETOR
(S/N-0H014138 & UP)CARBURETOR
(S/N-0H014138 & UP) -
110-82980M SCREWSCREW
-
213-82212M LOCKWASHERLOCKWASHER
-
3827473T STARTER SETSTARTER SET
-
425-827472T O-RINGO-RING
-
532-827471M PIPEPIPE
-
654-827482M CLAMPCLAMP
-
726-827468M SEAL
USE WITH ADJUSTABLE SCREWSEAL
USE WITH ADJUSTABLE SCREW -
810-827469M SCREW-AIR ADJUSTING
(S/N-0H013399 & BELOW) USE WITH ADJUSTABLE SCREWSCREW-AIR ADJUSTING
(S/N-0H013399 & BELOW) USE WITH ADJUSTABLE SCREW -
810-809125M SCREW-AIR ADJUSTING
(BODENSEE) (S/N-0H013400-0H014137) USE WITH ADJUSTABLE SCREWSCREW-AIR ADJUSTING
(BODENSEE) (S/N-0H013400-0H014137) USE WITH ADJUSTABLE SCREW -
924-80437M SPRING
USE WITH ADJUSTABLE SCREWSPRING
USE WITH ADJUSTABLE SCREW -
1019-855237 PLUG
(S/N-0H014138 & UP)PLUG
(S/N-0H014138 & UP) -
1110-826931M SCREWSCREW
-
1224-82596M SPRING-PILOT ADJUSTINGSPRING-PILOT ADJUSTING
-
1316-825522 STUDSTUD
-
1417-80451M FLOAT PINFLOAT PIN
-
15827485M ROD-ACCELERATOR PUMP
(S/N-0H013399 & BELOW)ROD-ACCELERATOR PUMP
(S/N-0H013399 & BELOW) -
15809127M ROD-ACCELERATOR PUMP
(BODENSEE) (S/N-0H013400 & UP)ROD-ACCELERATOR PUMP
(BODENSEE) (S/N-0H013400 & UP) -
1611-82537M NUTNUT
-
17827486M SHAFT-CHOKESHAFT-CHOKE
-
1812-827488M WASHERWASHER
-
1953-827489M CLIPCLIP
-
20827467M MAIN NOZZLE
S/N-0H013399 & BELOWMAIN NOZZLE
S/N-0H013399 & BELOW -
2191741M MAIN JET
S/N-0H013399 & BELOWMAIN JET
S/N-0H013399 & BELOW -
2210-809128M SCREW
S/N-0H013399 & BELOWSCREW
S/N-0H013399 & BELOW -
19809123M MAIN NOZZLE
BODENSEE S/N-0H013400 & UPMAIN NOZZLE
BODENSEE S/N-0H013400 & UP -
2082625M MAIN JET /
BODENSEE S/N-0H013400 & UPMAIN JET /
BODENSEE S/N-0H013400 & UP -
2125-809124M O-RING
BODENSEE S/N-0H013400 & UPO-RING
BODENSEE S/N-0H013400 & UP -
2314182M VALVE-NEEDLEVALVE-NEEDLE
-
24827465M JET-PILOTJET-PILOT
-
2527-80960M GASKETGASKET
-
2619-827466M PLUG-MAIN NOZZLEPLUG-MAIN NOZZLE
-
27827470M FLOATFLOAT
-
2827-827463M GASKET-FLOAT CHAMBERGASKET-FLOAT CHAMBER
-
2935-827474M FILTERFILTER
-
30827475M JET-STARTERJET-STARTER
-
31827483M VALVE-CHOKEVALVE-CHOKE
-
3210-827480M SCREWSCREW
-
3327-827481M GASKETGASKET
-
3410-827477M SCREW-DRAINSCREW-DRAIN
-
3525-827476M O-RINGO-RING
-
36827464M FLOAT BOWLFLOAT BOWL
-
3713-82206M LOCKWASHERLOCKWASHER
-
3810-91738M SCREWSCREW
-
3924-827479M SPRINGSPRING
-
40827478M DIAPHRAGMDIAPHRAGM
-
41827484M COVER
(S/N-0H013399 & BELOW)COVER
(S/N-0H013399 & BELOW) -
41809126M COVER
(BODENSEE) (S/N-0H013400 & UP)COVER
(BODENSEE) (S/N-0H013400 & UP) -
4224-827487M (#24-827487M)(#24-827487M)
-
4313-82206M LOCKWASHERLOCKWASHER
-
4410-83509M SCREWSCREW
-
4526-827737 SEAL
(BODENSEE) (S/N-0H013400 & UP)SEAL
(BODENSEE) (S/N-0H013400 & UP) -
-828099 STOP-THROTTLE
8 BODENSEESTOP-THROTTLE
8 BODENSEE -
-11-821285 NUT-PUSH
8 BODENSEENUT-PUSH
8 BODENSEE -
-827493M CARB REPAIR KITCARB REPAIR KIT
