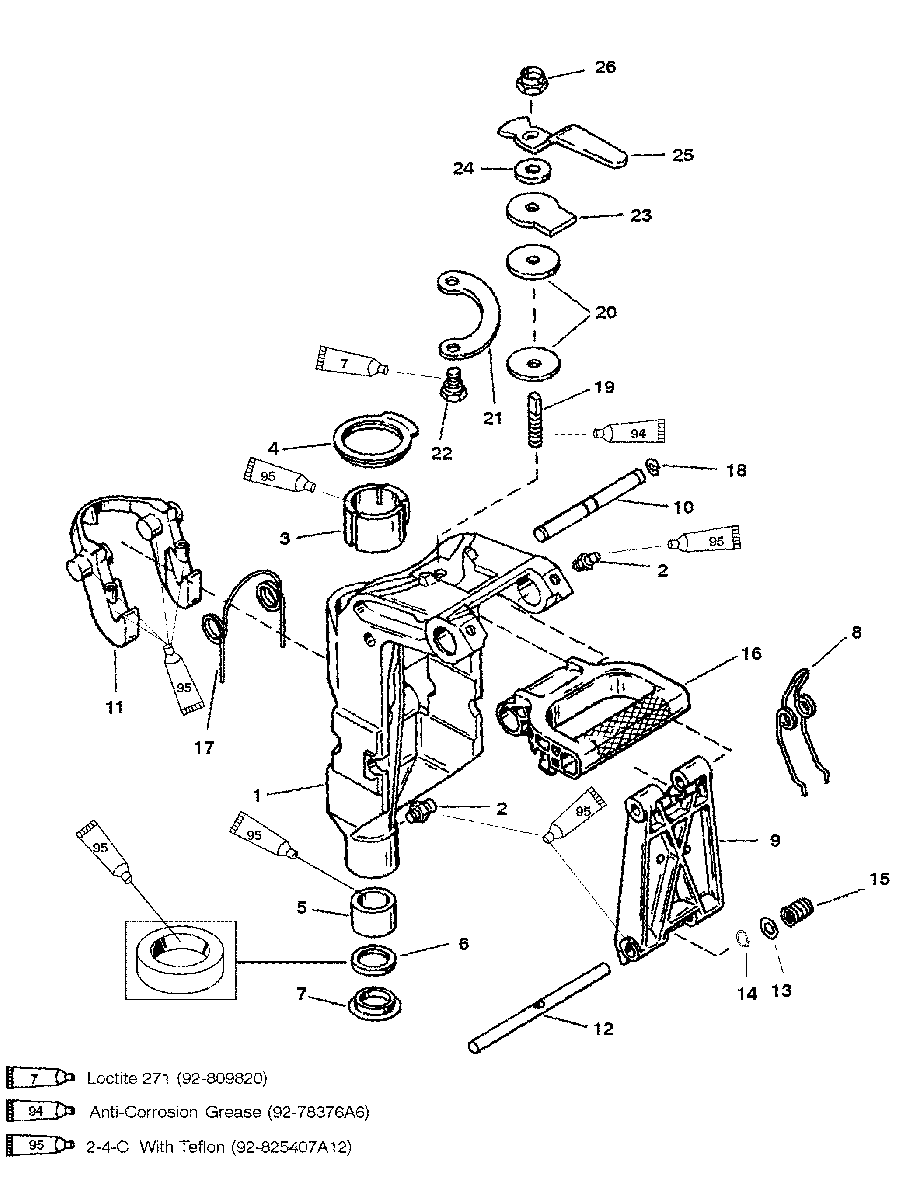

SWIVEL BRACKET для Mercury - 9.9 (4-STROKE)(232 cc) 0H000058 THRU 0H016909
-
№АртикулНазвание
-
13402-8831T08 SWIVEL BRACKET
(BLACK)SWIVEL BRACKET
(BLACK) -
13402-8831T08 SWIVEL BRACKET
(GRAY)SWIVEL BRACKET
(GRAY) -
222-74036 GREASE FITTINGGREASE FITTING
-
323-421402 BEARINGBEARING
-
423-42080T01 THRUST BEARING-UPPERTHRUST BEARING-UPPER
-
523-42139 BUSHING-LOWERBUSHING-LOWER
-
626-42077 SEALSEAL
-
712-42373 THRUST WASHER-LOWERTHRUST WASHER-LOWER
-
824-421301 SPRINGSPRING
-
942082T04 BRACKETBRACKET
-
1017-420811 PINPIN
-
118M0075731 HOOK-REVERSE LOCKHOOK-REVERSE LOCK
-
1217-830741A1 PIVOT PINPIVOT PIN
-
1391963 WASHER-PIVOT PINWASHER-PIVOT PIN
-
1453-832720 RETAINING RINGRETAINING RING
-
1524-42128 SPRINGSPRING
-
16420852 CARRYING HANDLE
(BLACK)CARRYING HANDLE
(BLACK) -
16420852 CARRYING HANDLE
(GRAY)CARRYING HANDLE
(GRAY) -
1724-42127 SPRING-REVERSE HOOKSPRING-REVERSE HOOK
-
1853-13194 E-RINGE-RING
-
19821961 RODROD
-
208165621 BRAKE DISCBRAKE DISC
-
21821958A1 SWIVEL HEAD PLATESWIVEL HEAD PLATE
-
2210-40011126 SCREWSCREW
-
23821957 BRAKE PLATEBRAKE PLATE
-
2412-29330 WASHERWASHER
-
25821959 HANDLEHANDLE
-
2611-8M0042636 NUTNUT
-
-37-8237011 DECAL-CO-PILOTDECAL-CO-PILOT
